| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Style | 1stConnector | 1stContactGender | 1stConnectorMountingType | 1stConnectorMountingFeature | 2ndConnector | 2ndContactGender | 2ndConnectorMountingType | 2ndConnectorMountingFeature | Length | CableType | CableImpedance | ConnectorImpedance | OverallImpedance | Frequency-Max | Color | Features | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-258M100RF CABLE ASSEMBLY BNC RIGHT ANGL |
3,496 | 21.43 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 39.4 (1.0m) 3.3' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 85°C |
|
135105-08-08.00CBL ASSY SMA JACK RG178 8 |
3,761 | 21.54 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 8.000 (203.20mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | - | - | - |
|
095-850-165-048CBL ASSY BNC PLUG-PLUG 4' |
2,315 | 21.54 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
175101-19-12.00CBL ASSY N TYPE PLUG RG58 12 |
2,293 | 21.59 |
RFQ |
Datasheet |
Bulk | - | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 12.00 (304.80mm) | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095-850-234-003BNC STRAIGHT BULKHEAD JACK PIGTA |
2,520 | 21.67 |
RFQ |
Datasheet |
Bag | - | Active | BNC to Cable | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | Cable (Round) | - | - | - | 3.000 (76.20mm) | Hand Formable .085 | - | - | 50 Ohms | 4 GHz | Silver | - | - |
|
115101-22-48.00CBL ASSY BNC PLUG LMR 240 4' |
3,719 | 21.68 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
095-850-201M0301.0/2.3 STRAIGHT PLUG TO BNC STR |
3,038 | 21.70 |
RFQ |
Datasheet |
Bag | - | Active | 1.0/2.3 to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | 1.0/2.3 Plug | Male | Free Hanging (In-Line) | - | 11.811 (300.00mm) | RG-179 | 75 Ohms | - | 75 Ohms | 4 GHz | Copper | - | - |
|
|
095-850-165M125CBL ASSY BNC PLUG-PLUG 4.1' |
3,063 | 21.74 |
RFQ |
Datasheet |
Bulk | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 49.2 (1.3m) 4.1' | Belden 1505A | - | - | 75 Ohms | 4 GHz | Black | Shielded | - |
|
095-850-187M075CBL ASSY BNC PLUG-PLUG 29.53 |
3,856 | 21.76 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | Belden 4855R | - | - | 75 Ohms | 12 GHz | Black | Shielded | - |
|
095-850-265M075CBL ASY BNC J TO P RG316 29.53 |
2,876 | 21.79 |
RFQ |
Datasheet |
Bag | - | Active | BNC to BNC | BNC Jack | Female | Free Hanging (In-Line) | - | BNC Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53 (750.00mm) | RG-316 | 50 Ohms | - | 50 Ohms | 4 GHz | Copper | Shielded | -55°C ~ 165°C |
|
095-902-463-010SMA STRAIGHT JACK TO BLUNT CUT O |
2,114 | 21.82 |
RFQ |
Datasheet |
Bulk | - | Active | SMA to Cable | SMA Jack | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 10.000 (254.00mm) | UT-085C | - | - | 50 Ohms | 18 GHz | Gray | Shielded | -20°C ~ 75°C |
|

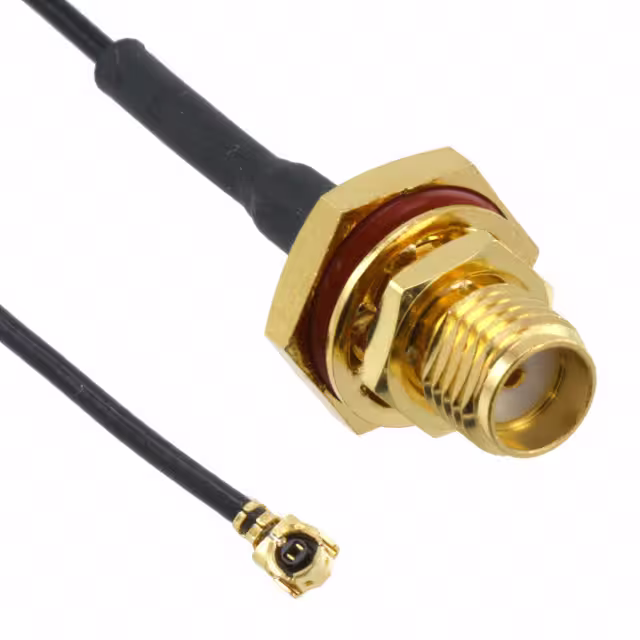

336303-13-0300CBL ASSY SMA-UMC 11.811 |
3,368 | 21.92 |
RFQ |
Datasheet |
Bag | - | Not For New Designs | U.FL (UMCC), AMC to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811 (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

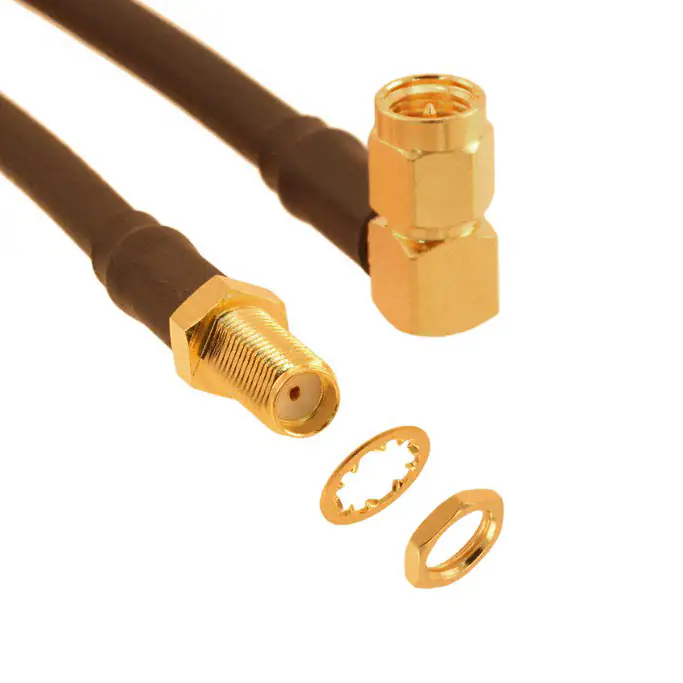

135111-02-24.00CBL ASSY SMA JACK-PLUG RG174 24 |
2,968 | 22.00 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00 (609.60mm) | RG-174 | 50 Ohms | - | 50 Ohms | 3 GHz | Copper | Shielded | - |
|
095-850-278-048CBL ASSY BNC PLUG 4' |
3,799 | 22.01 |
RFQ |
Datasheet |
Bag | BNC | Active | BNC to BNC | BNC Plug | Male | Free Hanging (In-Line) | - | BNC Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | LMR 240 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | -40°C ~ 85°C |
|
095-850-246M150CBL ASSY BNC-SMA JK-PL RG58 4.9' |
2,088 | 22.03 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1 (1.5m) 4.9' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
135113-01-36.00SMA BULKHEAD JACK TO SMA BULKHEA |
3,044 | 22.04 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 36.00 (914.40mm) | RG-316 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - |
|
|
095-850-246-060CBL ASSY BNC-SMA JCK-PLG RG58 5' |
3,649 | 22.09 |
RFQ |
Datasheet |
Bag | - | Active | BNC to SMA | BNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 60.0 (1.5m) 5.0' | RG-58 | 50 Ohms | - | 50 Ohms | 3 GHz | Black | - | - |
|
095-900-545M300CBL ASSY MCX PLUG RG174 3M |
3,376 | 22.10 |
RFQ |
Datasheet |
Bag | MCX | Active | MCX to MCX | MCX Plug | Male | Free Hanging (In-Line) | - | MCX Plug | Male | Free Hanging (In-Line) | - | 118.1 (3.0m) 9.8' | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | - | -40°C ~ 85°C |
|
336206-12-0050CBL ASSY UMCC-RPTNC 1.969 |
3,539 | 22.15 |
RFQ |
Datasheet |
Bulk | - | Active | U.FL (UMCC), AMC to RP-TNC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | RP-TNC Jack | Male | Panel Mount | Bulkhead - Front Side Nut | 1.969 (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - |
|

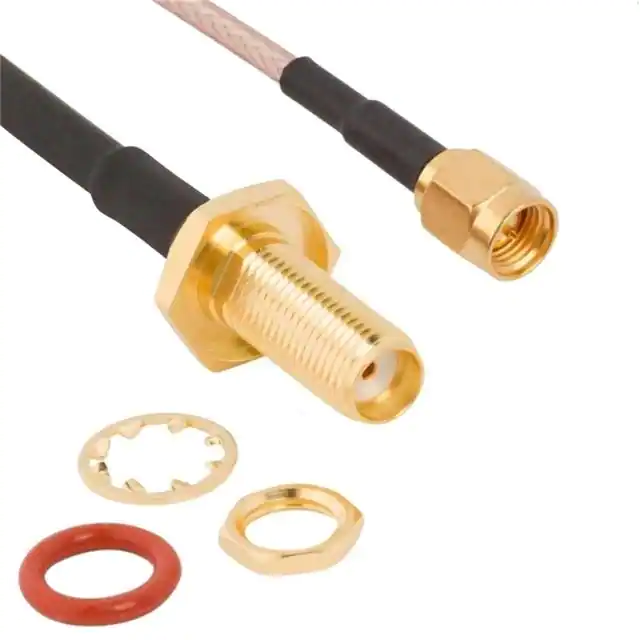

095-902-569-048SMA STRAIGHT MALE PLUG TO SMA ST |
3,893 | 22.15 |
RFQ |
Datasheet |
Bag | - | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 48.0 (1.2m) 4.0' | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Copper | - | -65°C ~ 165°C |
