| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ALC80F272BB063CAP ALUM 2700UF 20% 63V SNAP |
2,129 | 3.37 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 2700 µF | ±20% | 63 V | 139mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.91 A @ 100 Hz | 4.16 A @ 10 kHz | 104 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
ALC80D103BB025CAP ALUM 10000UF 20% 25V SNAP |
2,533 | 3.38 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 10000 µF | ±20% | 25 V | 120mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.66 A @ 100 Hz | 4.54 A @ 10 kHz | 335 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80F103BB025CAP ALUM 10000UF 20% 25V SNAP |
2,200 | 3.38 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 10000 µF | ±20% | 25 V | 120mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.66 A @ 100 Hz | 4.54 A @ 10 kHz | 335 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80A131BB350CAP ALUM 130UF 20% 350V SNAP |
2,986 | 3.40 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 130 µF | ±20% | 350 V | 1.048Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 100 Hz | 2.62 A @ 10 kHz | 549 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80D131BB350CAP ALUM 130UF 20% 350V SNAP |
3,945 | 3.40 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 130 µF | ±20% | 350 V | 1.048Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 100 Hz | 2.62 A @ 10 kHz | 549 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80D331BB200CAP ALUM 330UF 20% 200V SNAP |
2,764 | 3.40 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 330 µF | ±20% | 200 V | 645mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 2.85 A @ 10 kHz | 388 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80F131BB350CAP ALUM 130UF 20% 350V SNAP |
3,987 | 3.40 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 130 µF | ±20% | 350 V | 1.048Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 950 mA @ 100 Hz | 2.62 A @ 10 kHz | 549 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80F331BB200CAP ALUM 330UF 20% 200V SNAP |
3,642 | 3.40 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 330 µF | ±20% | 200 V | 645mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.31 A @ 100 Hz | 2.85 A @ 10 kHz | 388 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80D102BB100CAP ALUM 1000UF 20% 100V SNAP |
3,749 | 3.41 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 1000 µF | ±20% | 100 V | 289mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.36 A @ 100 Hz | 3.4 A @ 10 kHz | 237 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80F102BB100CAP ALUM 1000UF 20% 100V SNAP |
2,632 | 3.41 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 1000 µF | ±20% | 100 V | 289mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.36 A @ 100 Hz | 3.4 A @ 10 kHz | 237 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80D221BB250CAP ALUM 220UF 20% 250V SNAP |
2,647 | 3.43 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 220 µF | ±20% | 250 V | 796mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 2.7 A @ 10 kHz | 469 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80F221BB250CAP ALUM 220UF 20% 250V SNAP |
2,005 | 3.43 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 220 µF | ±20% | 250 V | 796mOhm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.17 A @ 100 Hz | 2.7 A @ 10 kHz | 469 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
PEV227HKP4460ME4ALUMINUM ELECTROLYTIC, VERTICAL |
2,673 | 5.39 |
RFQ |
Datasheet |
Tray | PEV227 | Active | 4600 µF | ±20% | 25 V | 35mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 6.755 A @ 100 Hz | 20.072 A @ 100 kHz | - | - | 0.669 L x 0.669 W (17.00mm x 17.00mm) | 1.496 (38.00mm) | 1.024 L x 1.024 W (26.00mm x 26.00mm) | Surface Mount |
|
|
PEV227KKL4150ME4ALUMINUM ELECTROLYTIC, VERTICAL |
2,623 | 5.39 |
RFQ |
Datasheet |
Tray | PEV227 | Active | 1500 µF | ±20% | 40 V | 67mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 5.88 A @ 100 Hz | 17.472 A @ 100 kHz | - | - | 0.669 L x 0.669 W (17.00mm x 17.00mm) | 1.181 (30.00mm) | 1.024 L x 1.024 W (26.00mm x 26.00mm) | Surface Mount |
|

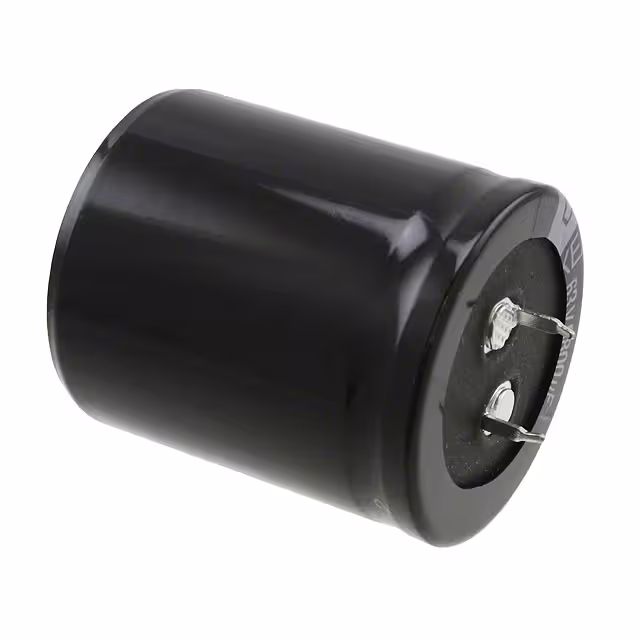

ELG688M063AS5AACAP ALUM 6800UF 20% 63V SNAP |
3,113 | 3.47 |
RFQ |
Datasheet |
Bulk | ELG | Active | 6800 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | - | - | - | 0.394 (10.00mm) | 1.181 Dia (30.00mm) | 1.850 (47.00mm) | - | Through Hole |
|
|
ALC80A111BB400CAP ALUM 110UF 20% 400V SNAP |
2,822 | 3.47 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110 µF | ±20% | 400 V | 1.106Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | 2.62 A @ 10 kHz | 567 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80D111BB400CAP ALUM 110UF 20% 400V SNAP |
2,772 | 3.47 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110 µF | ±20% | 400 V | 1.106Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | 2.62 A @ 10 kHz | 567 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ALC80F111BB400CAP ALUM 110UF 20% 400V SNAP |
3,393 | 3.47 |
RFQ |
Datasheet |
Bulk | ALC80 | Active | 110 µF | ±20% | 400 V | 1.106Ohm @ 100Hz | 6000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 910 mA @ 100 Hz | 2.62 A @ 10 kHz | 567 mOhms | 0.394 (10.00mm) | 0.984 Dia (25.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
PEV227MKL3780QE4ALUMINUM ELECTROLYTIC, VERTICAL |
2,917 | 5.43 |
RFQ |
Datasheet |
Tray | PEV227 | Active | 780 µF | -10%, +30% | 63 V | 107mOhm @ 100Hz | 6300 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 4.515 A @ 100 Hz | 13.416 A @ 100 kHz | - | - | 0.669 L x 0.669 W (17.00mm x 17.00mm) | 1.181 (30.00mm) | 1.024 L x 1.024 W (26.00mm x 26.00mm) | Surface Mount |
|
PEV227KLP4300QE4ALUMINUM ELECTROLYTIC, VERTICAL |
2,217 | 5.43 |
RFQ |
Datasheet |
Tray | PEV227 | Active | 3000 µF | -10%, +30% | 40 V | 35mOhm @ 100Hz | 8400 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 7.42 A @ 100 Hz | 22.048 A @ 100 kHz | - | - | 0.748 L x 0.748 W (19.00mm x 19.00mm) | 1.496 (38.00mm) | 1.102 L x 1.102 W (28.00mm x 28.00mm) | Surface Mount |
