| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDH475M450S9RAACAP ALUM 4.7UF 20% 450V SMD |
3,116 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 45 mA @ 120 Hz | 56.25 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH106M400S9RAACAP ALUM 10UF 20% 400V SMD |
3,868 | 1.05 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 10 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 50 mA @ 120 Hz | 62.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH476M160A9TAACAP ALUM 47UF 20% 160V SMD |
3,849 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 300 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH447M050S9SAACAP ALUM 440UF 20% 50V SMD |
2,148 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 440 µF | ±20% | 50 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | - | - | - | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH106M450S9SAACAP ALUM 10UF 20% 450V SMD |
2,906 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 10 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 75 mA @ 120 Hz | 93.75 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH336M250A9TAACAP ALUM 33UF 20% 250V SMD |
3,919 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 33 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 180 mA @ 120 Hz | 225 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH476M160S9TAACAP ALUM 47UF 20% 160V SMD |
2,614 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 47 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 240 mA @ 120 Hz | 300 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH107M160A9TAACAP ALUM 100UF 20% 160V SMD |
2,258 | 1.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 312.5 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH337M063A9TAACAP ALUM 330UF 20% 63V SMD |
3,184 | 1.39 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 650 mA @ 120 Hz | 812.5 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH476M200S9TAACAP ALUM 47UF 20% 200V SMD |
2,313 | 1.40 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 47 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 220 mA @ 120 Hz | 275 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH477M063A9TAACAP ALUM 470UF 20% 63V SMD |
3,676 | 1.41 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 470 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 875 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH228M016S9TAACAP ALUM 2200UF 20% 16V SMD |
3,569 | 1.42 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 2200 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 900 mA @ 120 Hz | 1.125 A @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|

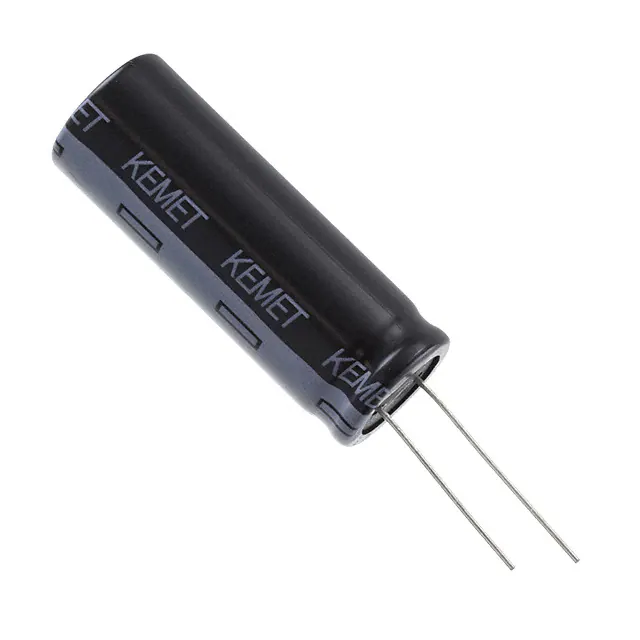

ESU107M450AN9AACAP ALUM 100UF 20% 450V RADIAL |
3,720 | 1.98 |
RFQ |
Datasheet |
Bulk | ESU | Active | 100 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 780 mA @ 120 Hz | 1.56 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 2.047 (52.00mm) | - | Through Hole |
|
|
EDH336M250S9TAACAP ALUM 33UF 20% 250V SMD |
3,909 | 1.45 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 33 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 180 mA @ 120 Hz | 225 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
ELH228M050AQ1AACAP ALUM 2200UF 20% 50V SNAP |
2,715 | 1.48 |
RFQ |
Datasheet |
Bulk | ELH | Active | 2200 µF | ±20% | 50 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 1.9 A @ 120 Hz | 2.204 A @ 10 kHz | - | 0.394 (10.00mm) | 0.866 Dia (22.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EDH337M063S9TAACAP ALUM 330UF 20% 63V SMD |
3,960 | 1.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 330 µF | ±20% | 63 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 650 mA @ 120 Hz | 812.5 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH228M025S9TAACAP ALUM 2200UF 20% 25V SMD |
3,369 | 1.51 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | AEC-Q200 | Automotive | 900 mA @ 120 Hz | 1.125 A @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH158M035A9TAACAP ALUM 1500UF 20% 35V SMD |
2,555 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 1500 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1 A @ 120 Hz | 1.25 A @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH107M160S9TAACAP ALUM 100UF 20% 160V SMD |
3,389 | 1.55 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 100 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | AEC-Q200 | Automotive | 250 mA @ 120 Hz | 312.5 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
|
|
EDH226M400A9TAACAP ALUM 22UF 20% 400V SMD |
2,132 | 1.55 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 85 mA @ 120 Hz | 106.25 mA @ 10 kHz | - | - | 0.630 Dia (16.00mm) | 0.689 (17.50mm) | 0.642 L x 0.642 W (16.30mm x 16.30mm) | Surface Mount |
