| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ESY277M063AL3AACAP ALUM 270UF 20% 63V RADIAL |
3,463 | 0.49 |
RFQ |
Datasheet |
Bulk | ESY | Active | 270 µF | ±20% | 63 V | 60mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2 A @ 100 kHz | 60 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
ESU107M200AM7AACAP ALUM 100UF 20% 200V RADIAL |
3,645 | 0.69 |
RFQ |
Datasheet |
Bulk | ESU | Active | 100 µF | ±20% | 200 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 560 mA @ 120 Hz | 1.12 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
ESY158M016AL3AACAP ALUM 1500UF 20% 16V RADIAL |
3,675 | 0.54 |
RFQ |
Datasheet |
Bulk | ESY | Active | 1500 µF | ±20% | 16 V | 21mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.888 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
ESY687M035AL3AACAP ALUM 680UF 20% 35V RADIAL |
2,767 | 0.55 |
RFQ |
Datasheet |
Bulk | ESY | Active | 680 µF | ±20% | 35 V | 21mOhm @ 100kHz | 5000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.77 A @ 120 Hz | 2.36 A @ 100 kHz | 21 mOhms | 0.197 (5.00mm) | 0.512 Dia (13.00mm) | 0.866 (22.00mm) | - | Through Hole |
|

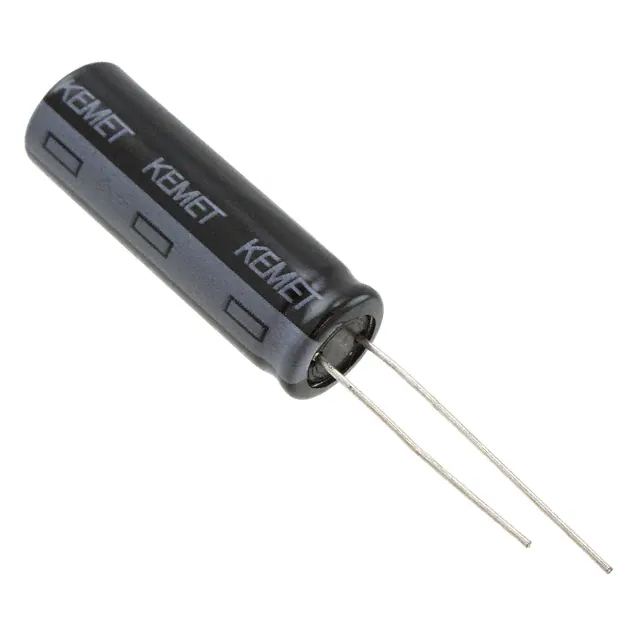

EST687M035AH6AACAP ALUM 680UF 20% 35V RADIAL |
3,730 | 0.55 |
RFQ |
Datasheet |
Bulk | EST | Active | 680 µF | ±20% | 35 V | 44mOhm @ 100kHz | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.146 A @ 120 Hz | 1.91 A @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.260 (32.00mm) | - | Through Hole |
|
|
ESU336M450AM7AACAP ALUM 33UF 20% 450V RADIAL |
2,957 | 0.81 |
RFQ |
Datasheet |
Bulk | ESU | Active | 33 µF | ±20% | 450 V | - | 12000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 280 mA @ 120 Hz | 560 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EDH108M016A9RAACAP ALUM 1000UF 20% 16V SMD |
3,080 | 0.61 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 1000 µF | ±20% | 16 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 550 mA @ 120 Hz | 687.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH475M400A9RAACAP ALUM 4.7UF 20% 400V SMD |
2,734 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 4.7 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 56.25 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH106M200A9RAACAP ALUM 10UF 20% 200V SMD |
3,879 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 10 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 80 mA @ 120 Hz | 100 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH336M160A9RAACAP ALUM 33UF 20% 160V SMD |
2,422 | 0.68 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 33 µF | ±20% | 160 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 95 mA @ 120 Hz | 118.75 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH106M250A9RAACAP ALUM 10UF 20% 250V SMD |
3,674 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 10 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 70 mA @ 120 Hz | 87.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH475M250A9RAACAP ALUM 4.7UF 20% 250V SMD |
3,165 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 4.7 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 65 mA @ 120 Hz | 81.25 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH476M100A9RAACAP ALUM 47UF 20% 100V SMD |
3,283 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 47 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 250 mA @ 120 Hz | 312.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH475M450A9RAACAP ALUM 4.7UF 20% 450V SMD |
2,667 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 4.7 µF | ±20% | 450 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 45 mA @ 120 Hz | 56.25 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH107M100A9RAACAP ALUM 100UF 20% 100V SMD |
3,476 | 0.72 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 100 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 300 mA @ 120 Hz | 375 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH335M400A9RAACAP ALUM 3.3UF 20% 400V SMD |
2,882 | 0.73 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 3.3 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 40 mA @ 120 Hz | 50 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH228M6R3A9RAACAP ALUM 2200UF 20% 6.3V SMD |
3,754 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 2200 µF | ±20% | 6.3 V | - | 2000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 680 mA @ 120 Hz | 850 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH226M200A9SAACAP ALUM 22UF 20% 200V SMD |
2,796 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 22 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 110 mA @ 120 Hz | 137.5 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH336M200A9SAACAP ALUM 33UF 20% 200V SMD |
3,396 | 0.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 33 µF | ±20% | 200 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 120 mA @ 120 Hz | 150 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.650 (16.50mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
|
|
EDH335M250A9RAACAP ALUM 3.3UF 20% 250V SMD |
2,000 | 0.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | EDH | Active | 3.3 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 60 mA @ 120 Hz | 75 mA @ 10 kHz | - | - | 0.492 Dia (12.50mm) | 0.551 (14.00mm) | 0.504 L x 0.504 W (12.80mm x 12.80mm) | Surface Mount |
