| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

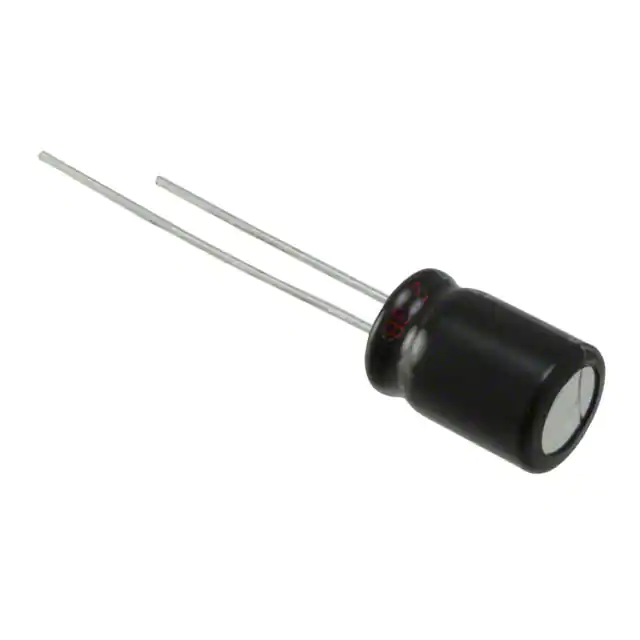

EEU-HD1C331CAP ALUM 330UF 20% 16V RADIAL |
276 | 1.05 |
RFQ |
Datasheet |
Bulk | HD | Active | 330 µF | ±20% | 16 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 260 mA @ 120 Hz | 390 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.512 (13.00mm) | - | Through Hole |
|
EEU-FK1E561CAP ALUM 560UF 20% 25V RADIAL TH |
445 | 1.14 |
RFQ |
Datasheet |
Bulk | FK | Active | 560 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 930 mA @ 120 Hz | 1.24 A @ 100 kHz | 49 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.689 (17.50mm) | - | Through Hole |
|

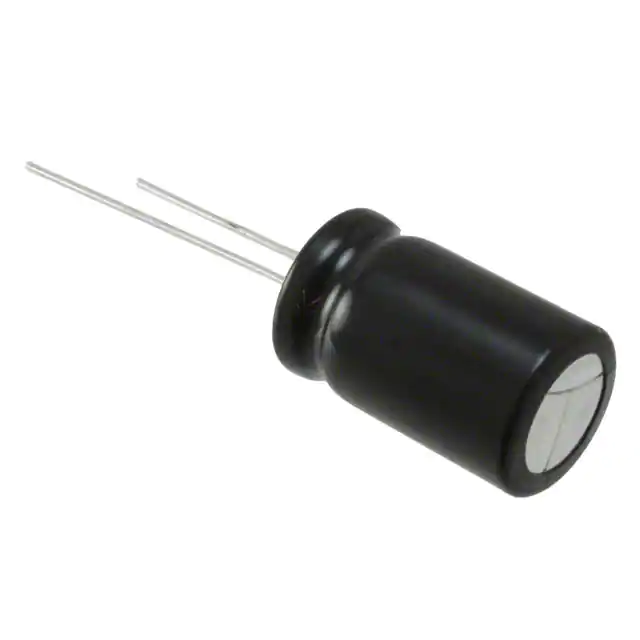

EEU-HD1E222BCAP ALUM 2200UF 20% 25V RADIAL |
843 | 2.46 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | HD | Active | 2200 µF | ±20% | 25 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.09 A @ 120 Hz | 1.254 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FR1C472BCAP ALUM 4700UF 20% 16V RADIAL |
275 | 2.55 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 4700 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V561BCAP ALUM 560UF 20% 35V RADIAL |
641 | 2.53 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | TP-A | Active | 560 µF | ±20% | 35 V | - | 4000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 1.395 A @ 120 Hz | 1.49 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FR1J181CAP ALUM 180UF 20% 63V RADIAL |
596 | 1.20 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 180 µF | ±20% | 63 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 860.3 mA @ 120 Hz | 1.229 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEE-TKA152UAQCAP ALUM 1500UF 20% 10V SMD |
317 | 2.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TK | Active | 1500 µF | ±20% | 10 V | 120mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 600 mA @ 120 Hz | 800 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.531 (13.50mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEV-FK1C152VCAP ALUM 1500UF 20% 16V SMD |
403 | 2.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 1500 µF | ±20% | 16 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 825 mA @ 120 Hz | 1.1 A @ 100 kHz | 60 mOhms | - | 0.492 Dia (12.50mm) | 0.543 (13.80mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEU-TA1A471CAP ALUM 470UF 20% 10V RADIAL |
379 | 1.26 |
RFQ |
Datasheet |
Bulk | TA | Active | 470 µF | ±20% | 10 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 510 mA @ 120 Hz | 680 mA @ 100 kHz | 100 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
|
EEU-FR1C562BCAP ALUM 5600UF 20% 16V RADIAL |
477 | 2.39 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 5600 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-FK1E821CAP ALUM 820UF 20% 25V RADIAL TH |
989 | 1.27 |
RFQ |
Datasheet |
Bulk | FK | Active | 820 µF | ±20% | 25 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.1175 A @ 120 Hz | 1.49 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FK1C152LCAP ALUM 1500UF 20% 16V RAD TH |
252 | 1.27 |
RFQ |
Datasheet |
Bulk | FK | Active | 1500 µF | ±20% | 16 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.344 A @ 120 Hz | 1.68 A @ 100 kHz | 33 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FS1K221CAP ALUM 220UF 20% 80V RADIAL |
700 | 1.28 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 220 µF | ±20% | 80 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 784 mA @ 120 Hz | 1.12 A @ 100 kHz | 54 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FK1A182CAP ALUM 1800UF 20% 10V RAD TH |
906 | 1.28 |
RFQ |
Datasheet |
Bulk | FK | Active | 1800 µF | ±20% | 10 V | - | 4000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.192 A @ 120 Hz | 1.49 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-FR0J272LCAP ALUM 2700UF 20% 6.3V RADIAL |
786 | 1.29 |
RFQ |
Datasheet |
Bulk | FR-A | Active | 2700 µF | ±20% | 6.3 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 1.976 A @ 120 Hz | 2.47 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-TA1C471CAP ALUM 470UF 20% 16V RADIAL |
837 | 1.43 |
RFQ |
Datasheet |
Bulk | TA | Active | 470 µF | ±20% | 16 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 708.8 mA @ 120 Hz | 945 mA @ 100 kHz | 75 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|

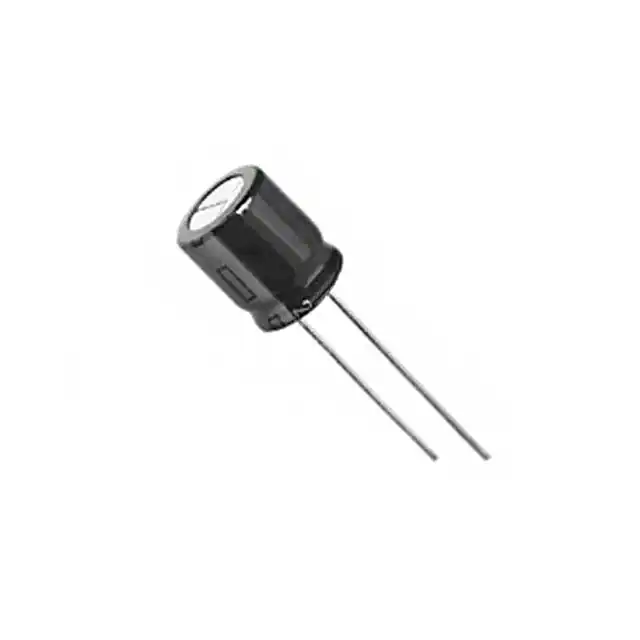

EEU-TP1E471LCAP ALUM 470UF 20% 25V RADIAL |
396 | 1.43 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 470 µF | ±20% | 25 V | - | 2000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 795 mA @ 120 Hz | 760 mA @ 100 kHz | - | 0.138 (3.50mm) | 0.315 Dia (8.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
|
EEU-TA1V221CAP ALUM 220UF 20% 35V RADIAL |
269 | 1.43 |
RFQ |
Datasheet |
Bulk | TA | Active | 220 µF | ±20% | 35 V | - | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | - | General Purpose | 497.3 mA @ 120 Hz | 765 mA @ 100 kHz | 130 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.669 (17.00mm) | - | Through Hole |
|
ECA-2GHG220CAP ALUM 22UF 20% 400V RADIAL |
347 | 1.53 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 22 µF | ±20% | 400 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 145 mA @ 120 Hz | 217.5 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-TP1V121CAP ALUM 120UF 20% 35V RADIAL |
854 | 1.59 |
RFQ |
Datasheet |
Bulk | TP-A | Active | 120 µF | ±20% | 35 V | - | 3000 Hrs @ 125°C | -40°C ~ 135°C | Polar | AEC-Q200 | Automotive | 377 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.551 (14.00mm) | - | Through Hole |
