| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECE-A1EN221UCAP ALUM 220UF 20% 25V RADIAL |
2,027 | 1.06 |
RFQ |
Datasheet |
Bulk | SU | Active | 220 µF | ±20% | 25 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Bi-Polar | - | General Purpose | 320 mA @ 120 Hz | 544 mA @ 10 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.630 (16.00mm) | - | Through Hole |
|
EEU-EB2C470CAP ALUM 47UF 20% 160V RADIAL |
3,942 | 1.16 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 47 µF | ±20% | 160 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FC1A222LCAP ALUM 2200UF 20% 10V RADIAL |
208 | 1.18 |
RFQ |
Datasheet |
Bulk | FC | Active | 2200 µF | ±20% | 10 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.452 A @ 120 Hz | 1.815 A @ 100 kHz | 35 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.181 (30.00mm) | - | Through Hole |
|

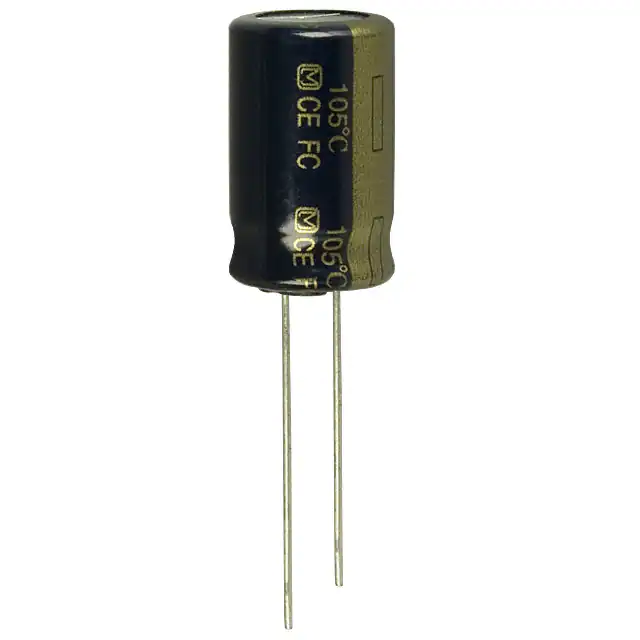

EEU-FC1V681CAP ALUM 680UF 20% 35V RADIAL |
783 | 1.19 |
RFQ |
Datasheet |
Bulk | FC | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.241 A @ 120 Hz | 1.655 A @ 100 kHz | 38 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
EEU-EB2W100CAP ALUM 10UF 20% 450V RADIAL |
3,065 | 1.28 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 10 µF | ±20% | 450 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 155 mA @ 120 Hz | 310 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
ECA-1AM472CAP ALUM 4700UF 20% 10V RADIAL |
742 | 1.29 |
RFQ |
Datasheet |
Bulk | M-A | Active | 4700 µF | ±20% | 10 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.2 A @ 120 Hz | 2.04 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-EB1C222CAP ALUM 2200UF 20% 16V RADIAL |
741 | 1.31 |
RFQ |
Datasheet |
Bulk | EB-A | Active | 2200 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 706 mA @ 120 Hz | 811.9 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

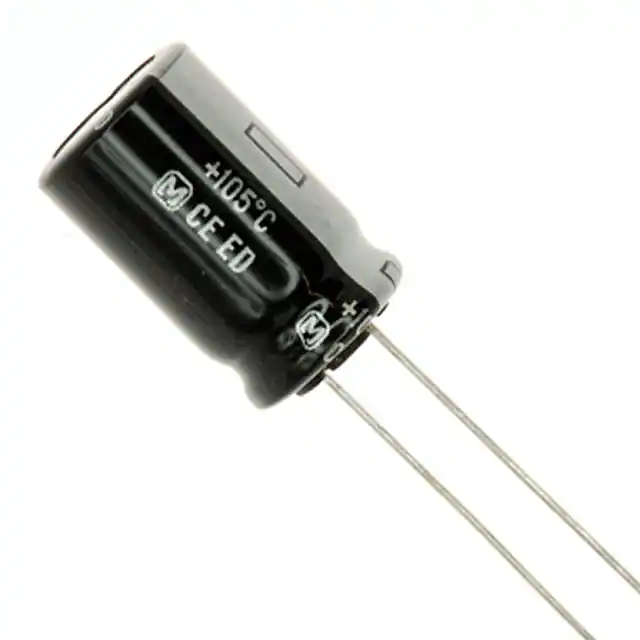

EEU-ED2W100CAP ALUM 10UF 20% 450V RADIAL |
2,857 | 1.33 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 10 µF | ±20% | 450 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 140 mA @ 120 Hz | 350 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
ECA-2AM331CAP ALUM 330UF 20% 100V RADIAL |
519 | 1.36 |
RFQ |
Datasheet |
Bulk | M-A | Active | 330 µF | ±20% | 100 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 700 mA @ 120 Hz | 1.19 A @ 10 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECA-1CM472CAP ALUM 4700UF 20% 16V RADIAL |
4,838 | 1.45 |
RFQ |
Datasheet |
Bulk | M-A | Active | 4700 µF | ±20% | 16 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.36 A @ 120 Hz | 2.312 A @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECA-2AHG221CAP ALUM 220UF 20% 100V RADIAL |
3,487 | 1.52 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 220 µF | ±20% | 100 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 660 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEE-FK2A470AVCAP ALUM 47UF 20% 100V SMD |
2,863 | 2.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FK, Anti-Vibration | Active | 47 µF | ±20% | 100 V | 320mOhm @ 100kHz | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive, High Temperature Reflow | 375 mA @ 120 Hz | 500 mA @ 100 kHz | - | - | 0.492 Dia (12.50mm) | 0.555 (14.10mm) | 0.531 L x 0.531 W (13.50mm x 13.50mm) | Surface Mount |
|
EEU-FC1V681SCAP ALUM 680UF 20% 35V RADIAL |
509 | 1.60 |
RFQ |
Datasheet |
Bulk | FC | Active | 680 µF | ±20% | 35 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.268 A @ 120 Hz | 1.69 A @ 100 kHz | 43 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.591 (15.00mm) | - | Through Hole |
|
ECA-1VHG331BCAP ALUM 330UF 20% 35V RADIAL |
3,855 | 0.74 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | NHG-A | Active | 330 µF | ±20% | 35 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 350 mA @ 120 Hz | 525 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.531 (13.50mm) | - | Through Hole |
|
EEU-FC1A332SCAP ALUM 3300UF 20% 10V RADIAL |
469 | 1.65 |
RFQ |
Datasheet |
Bulk | FC | Active | 3300 µF | ±20% | 10 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.874 A @ 120 Hz | 2.205 A @ 100 kHz | 29 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-EE2E470CAP ALUM 47UF 20% 250V RADIAL |
1,084 | 1.67 |
RFQ |
Datasheet |
Bulk | EE-A | Active | 47 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 451.5 mA @ 120 Hz | 1.29 A @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-FS1C332CAP ALUM 3300UF 20% 16V RADIAL |
2,125 | 1.77 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 3300 µF | ±20% | 16 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.552 A @ 120 Hz | 3.19 A @ 100 kHz | 15 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.063 (27.00mm) | - | Through Hole |
|

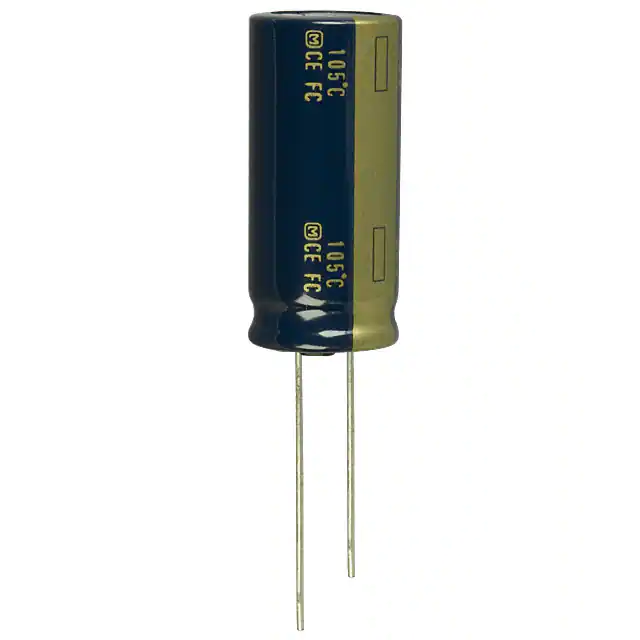

EEU-FC1E392LCAP ALUM 3900UF 20% 25V RADIAL |
1,783 | 2.54 |
RFQ |
Datasheet |
Bulk | FC | Active | 3900 µF | ±20% | 25 V | - | 5000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 2.678 A @ 120 Hz | 3.15 A @ 100 kHz | 16 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.398 (35.50mm) | - | Through Hole |
|
|
EEU-ED2G220CAP ALUM 22UF 20% 400V RADIAL |
733 | 1.80 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 22 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 200 mA @ 120 Hz | 500 mA @ 100 kHz | - | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEU-FM1V182CAP ALUM 1800UF 20% 35V RADIAL |
3,267 | 1.86 |
RFQ |
Datasheet |
Bulk | FM-A | Active | 1800 µF | ±20% | 35 V | - | 7000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 3.056 A @ 120 Hz | 3.82 A @ 100 kHz | 14 mOhms | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
