| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Capacitance | Tolerance | Voltage-Rated | ESR(EquivalentSeriesResistance) | Lifetime@Temp | OperatingTemperature | Polarization | Ratings | Applications | RippleCurrent@LowFrequency | RippleCurrent@HighFrequency | Impedance | LeadSpacing | Size/Dimension | Height-Seated(Max) | SurfaceMountLandSize | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEU-FC1V561BCAP ALUM 560UF 20% 35V RADIAL |
876 | 1.03 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FC | Active | 560 µF | ±20% | 35 V | - | 3000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 1.08 A @ 120 Hz | 1.44 A @ 100 kHz | 45 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
ECA-2EHG101CAP ALUM 100UF 20% 250V RADIAL |
205 | 2.13 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 100 µF | ±20% | 250 V | - | 2000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 365 mA @ 120 Hz | 547.5 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|

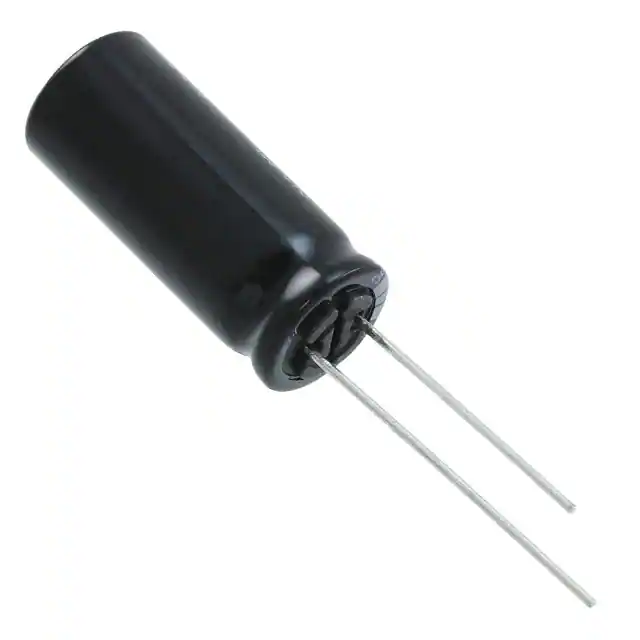

EEU-FS1H821LCAP ALUM 820UF 20% 50V RADIAL |
2,528 | 2.14 |
RFQ |
Datasheet |
Bulk | FS-A | Active | 820 µF | ±20% | 50 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.37 A @ 120 Hz | 3.16 A @ 100 kHz | 16 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 1.260 (32.00mm) | - | Through Hole |
|
ECA-2WM330CAP ALUM 33UF 20% 450V RADIAL |
1,715 | 2.14 |
RFQ |
Datasheet |
Bulk | M-A | Active | 33 µF | ±20% | 450 V | - | 2000 Hrs @ 85°C | -25°C ~ 85°C | Polar | - | General Purpose | 285 mA @ 120 Hz | 484.5 mA @ 10 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
EEV-TG1H681MCAP ALUM 680UF 20% 50V SMD |
3,151 | 3.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TG | Active | 680 µF | ±20% | 50 V | 140mOhm @ 100kHz | 2000 Hrs @ 125°C | -40°C ~ 125°C | Polar | AEC-Q200 | Automotive | 617.5 mA @ 120 Hz | 950 mA @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.650 (16.50mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
EEU-EE2D101CAP ALUM 100UF 20% 200V RADIAL |
138 | 2.22 |
RFQ |
Datasheet |
Bulk | EE-A | Active | 100 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 692 mA @ 120 Hz | 1.73 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
EEU-ED2G220SCAP ALUM 22UF 20% 400V RADIAL |
288 | 2.31 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 22 µF | ±20% | 400 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 240 mA @ 120 Hz | 600 mA @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
EEU-ED2D101SCAP ALUM 100UF 20% 200V RADIAL |
219 | 2.37 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 100 µF | ±20% | 200 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 576 mA @ 120 Hz | 1.28 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
EEU-ED2E820SCAP ALUM 82UF 20% 250V RADIAL |
3,507 | 2.37 |
RFQ |
Datasheet |
Bulk | ED | Active | 82 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 480 mA @ 120 Hz | 1.2 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.787 (20.00mm) | - | Through Hole |
|
|
ECA-1AHG103CAP ALUM 10000UF 20% 10V RADIAL |
12,780 | 2.44 |
RFQ |
Datasheet |
Bulk | NHG-A | Active | 10000 µF | ±20% | 10 V | - | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 1.89 A @ 120 Hz | 2.174 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.319 (33.50mm) | - | Through Hole |
|
|
EEU-ED2E101CAP ALUM 100UF 20% 250V RADIAL |
2,226 | 2.60 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 100 µF | ±20% | 250 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 675 mA @ 120 Hz | 1.5 A @ 100 kHz | - | 0.295 (7.50mm) | 0.630 Dia (16.00mm) | 1.240 (31.50mm) | - | Through Hole |
|
EEV-EB2D470SMCAP ALUM 47UF 20% 200V SMD |
2,015 | 4.49 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EB | Last Time Buy | 47 µF | ±20% | 200 V | - | 5000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 330 mA @ 120 Hz | 600 mA @ 100 kHz | - | - | 0.709 Dia (18.00mm) | 0.669 (17.00mm) | 0.748 L x 0.748 W (19.00mm x 19.00mm) | Surface Mount |
|
ECA-1VM472CAP ALUM 4700UF 20% 35V RADIAL |
4,120 | 2.90 |
RFQ |
Datasheet |
Bulk | M-A | Active | 4700 µF | ±20% | 35 V | - | 2000 Hrs @ 85°C | -40°C ~ 85°C | Polar | - | General Purpose | 1.6 A @ 120 Hz | 2.72 A @ 10 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 1.476 (37.50mm) | - | Through Hole |
Series.jpg)
|

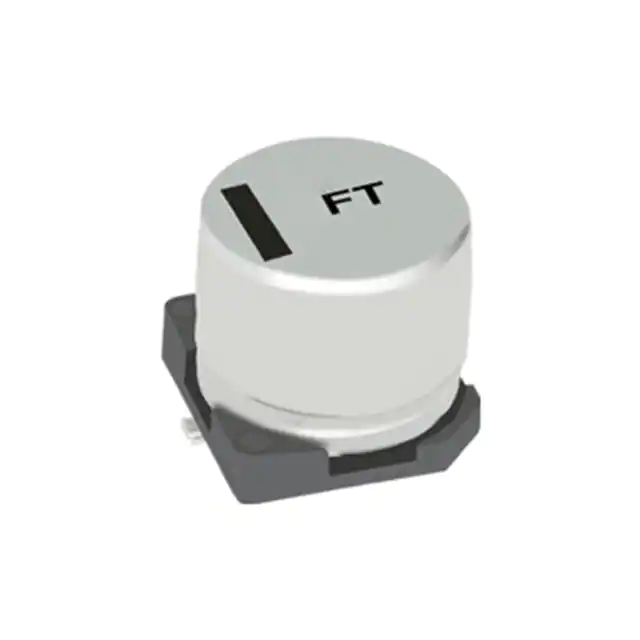

EEE-FT1V391ULCAP ALUM 390UF 20% 35V SMD |
656 | 1.32 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | FT, Halogen Free | Active | 390 µF | ±20% | 35 V | 80mOhm @ 100kHz | 2000 Hrs @ 105°C | -55°C ~ 105°C | Polar | AEC-Q200 | Automotive | 552.5 mA @ 120 Hz | 850 mA @ 100 kHz | - | - | 0.315 Dia (8.00mm) | 0.413 (10.50mm) | 0.327 L x 0.327 W (8.30mm x 8.30mm) | Surface Mount |
|
EEU-FS2A121BCAP ALUM 120UF 20% 100V RADIAL |
509 | 1.31 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 120 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 784 mA @ 120 Hz | 1.12 A @ 100 kHz | 54 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-FS2A151LBCAP ALUM 150UF 20% 100V RADIAL |
403 | 1.33 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FS-A | Active | 150 µF | ±20% | 100 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 840 mA @ 120 Hz | 1.2 A @ 100 kHz | 44 mOhms | 0.197 (5.00mm) | 0.394 Dia (10.00mm) | 1.063 (27.00mm) | - | Through Hole |
|
|
EEU-ED2V820SCAP ALUM 82UF 20% 350V RADIAL |
318 | 3.22 |
RFQ |
Datasheet |
Bulk | ED-A | Active | 82 µF | ±20% | 350 V | - | 10000 Hrs @ 105°C | -25°C ~ 105°C | Polar | - | General Purpose | 440 mA @ 120 Hz | 1.1 A @ 100 kHz | - | 0.295 (7.50mm) | 0.709 Dia (18.00mm) | 0.984 (25.00mm) | - | Through Hole |
|
EEA-GA1E680CAP ALUM 68UF 20% 25V RADIAL |
556 | 0.62 |
RFQ |
Datasheet |
Bulk | GA-A | Active | 68 µF | ±20% | 25 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 100 mA @ 120 Hz | 155 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.315 Dia (8.00mm) | 0.276 (7.00mm) | - | Through Hole |
|
EEU-FR1A332BCAP ALUM 3300UF 20% 10V RADIAL |
587 | 1.39 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | FR-A | Active | 3300 µF | ±20% | 10 V | - | 10000 Hrs @ 105°C | -40°C ~ 105°C | Polar | - | General Purpose | 2.08 A @ 120 Hz | 2.6 A @ 100 kHz | 18 mOhms | 0.197 (5.00mm) | 0.492 Dia (12.50mm) | 0.866 (22.00mm) | - | Through Hole |
|
EEU-HD1H2R2CAP ALUM 2.2UF 20% 50V RADIAL |
573 | 0.65 |
RFQ |
Datasheet |
Bulk | HD | Active | 2.2 µF | ±20% | 50 V | - | 1000 Hrs @ 105°C | -55°C ~ 105°C | Polar | - | General Purpose | 18 mA @ 120 Hz | 36 mA @ 100 kHz | - | 0.098 (2.50mm) | 0.197 Dia (5.00mm) | 0.492 (12.50mm) | - | Through Hole |
