| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Current-CollectorPulsed(Icm) | Vce(on)(Max)@VgeIc | Power-Max | SwitchingEnergy | InputType | GateCharge | Td(on/off)@25°C | TestCondition | ReverseRecoveryTime(trr) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IXGH10N300IGBT 3000V 18A 100W TO247AD |
3,415 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | - | 3000 V | 18 A | 40 A | 5.2V @ 15V, 30A | 100 W | - | Standard | 32 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole |
|
IXGF36N300IGBT 3000V 36A 160W I4-PAK |
2,053 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | - | 3000 V | 36 A | 400 A | 5.2V @ 15V, 100A | 160 W | - | Standard | 136 nC | - | - | - | -55°C ~ 150°C (TJ) | Through Hole |
|
IXXK160N65C4IGBT 650V 290A 940W TO264 |
2,809 | 0.00 |
RFQ |
Datasheet |
Tube | GenX4™, XPT™ | Discontinued at Mosen | PT | 650 V | 290 A | 800 A | 2.1V @ 15V, 160A | 940 W | 3.5mJ (on), 1.3mJ (off) | Standard | 422 nC | 52ns/197ns | 400V, 80A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXBF10N300CIGBT 3000V 29A 240W ISOPLUSI4 |
3,540 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Active | - | 3000 V | 29 A | 240 A | 6V @ 15V, 10A | 240 W | 7.2mJ (on), 1.04mJ (off) | Standard | 208 nC | 32ns/390ns | 1500V, 10A, 10Ohm, 15V | 700 ns | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXBF15N300CIGBT 3000V 37A 300W ISOPLUSI4 |
3,206 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Active | - | 3000 V | 37 A | 300 A | 6V @ 15V, 15A | 300 W | 9.15mJ (on), 1.4mJ (off) | Standard | 267 nC | 40ns/455ns | 1500V, 15A, 10Ohm, 15V | 706 ns | -55°C ~ 150°C (TJ) | Through Hole |
|
IXYP10N65C3IGBT 650V 30A 160W TO220 |
2,242 | 0.00 |
RFQ |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 650 V | 30 A | 54 A | 2.5V @ 15V, 10A | 160 W | 240µJ (on), 110µJ (off) | Standard | 18 nC | 20ns/77ns | 400V, 10A, 50Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole |
|
IXGA30N60C3D4IGBT 600V 60A 220W TO263 |
2,774 | 0.00 |
RFQ |
Datasheet |
Tube | GenX3™ | Obsolete | PT | 600 V | 60 A | 150 A | 3V @ 15V, 20A | 220 W | 270µJ (on), 90µJ (off) | Standard | 38 nC | 16ns/42ns | 300V, 20A, 5Ohm, 15V | 60 ns | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXBT20N300HVIGBT 3000V 50A 250W TO268 |
3,622 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Not For New Designs | - | 3000 V | 50 A | 140 A | 3.2V @ 15V, 20A | 250 W | - | Standard | 105 nC | - | - | 1.35 µs | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXYH40N65C3IGBT 650V 80A 300W TO247 |
3,651 | 0.00 |
RFQ |
Datasheet |
Tube | GenX3™, XPT™ | Active | PT | 650 V | 80 A | 180 A | 2.2V @ 15V, 40A | 300 W | 860µJ (on), 400µJ (off) | Standard | 70 nC | 26ns/106ns | 400V, 30A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | Through Hole |
|

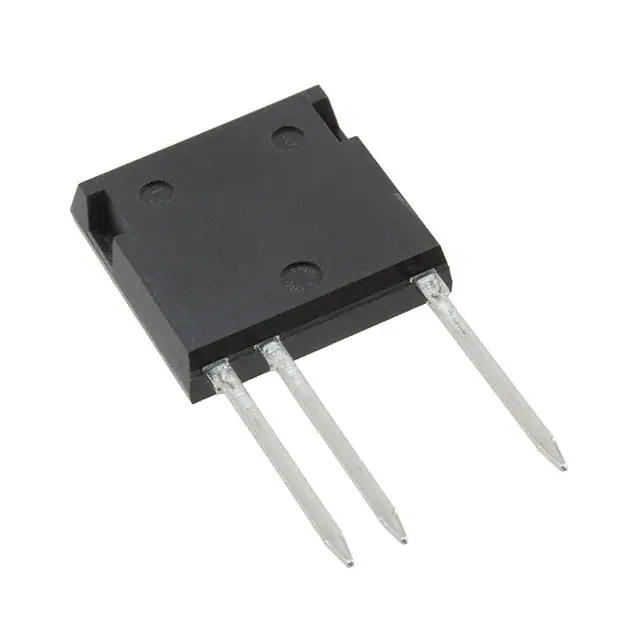

IXBF50N360IGBT 3600V 70A 290W I4-PAK |
3,891 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Not For New Designs | - | 3600 V | 70 A | 420 A | 2.9V @ 15V, 50A | 290 W | - | Standard | 210 nC | 46ns/205ns | 960V, 50A, 5Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | Through Hole |
|
IXBL60N360IGBT 3600V 92A ISOPLUS I5PAK |
2,707 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Not For New Designs | - | 3600 V | 92 A | 720 A | 3.4V @ 15V, 60A | 417 W | - | Standard | 450 nC | 50ns/340ns | 960V, 60A, 4.7Ohm, 15V | 1.95 µs | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXBT20N360HVIGBT 3600V 70A TO-268HV |
2,575 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Not For New Designs | - | 3600 V | 70 A | 220 A | 3.4V @ 15V, 20A | 430 W | 15.5mJ (on), 4.3mJ (off) | Standard | 110 nC | 18ns/238ns | 1500V, 20A, 10Ohm, 15V | 1.7 µs | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXBL20N300CIGBT 3000V |
2,510 | 0.00 |
RFQ |
Datasheet |
Tube | BIMOSFET™ | Active | - | 3000 V | 50 A | 430 A | 6V @ 15V, 20A | 417 W | 23mJ (on), 2.6mJ (off) | Standard | 425 nC | 33ns/370ns | 1500V, 20A, 3Ohm, 15V | 864 ns | -55°C ~ 150°C (TJ) | Through Hole |
|
IXGK300N60B3IGBT 600V 1000W TO264AA |
3,034 | 0.00 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
.jpg)
|
IXGX300N60B3IGBT 600V 1000W PLUS247 |
3,642 | 0.00 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
IXYH12N250CIGBT 2500V 28A TO247AD |
2,314 | 0.00 |
RFQ |
Datasheet |
Tube | XPT™ | Active | - | 2500 V | 28 A | 80 A | 4.5V @ 15V, 12A | 310 W | 3.56mJ (on), 1.7mJ (off) | Standard | 56 nC | 12ns/167ns | 1250V, 12A, 10Ohm, 15V | 16 ns | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXYH16N250CIGBT 2500V 35A TO247AD |
3,649 | 0.00 |
RFQ |
Datasheet |
Tube | XPT™ | Active | - | 2500 V | 35 A | 126 A | 4V @ 15V, 16A | 500 W | 4.75mJ (on), 3.9mJ (off) | Standard | 97 nC | 14ns/260ns | 1250V, 16A, 10Ohm, 15V | 19 ns | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXYH8N250CIGBT 2500V 29A TO247AD |
3,304 | 0.00 |
RFQ |
Datasheet |
Tube | XPT™ | Active | - | 2500 V | 29 A | 70 A | 4V @ 15V, 8A | 280 W | 2.6mJ (on), 1.07mJ (off) | Standard | 45 nC | 11ns/180ns | 1250V, 8A, 15Ohm, 15V | 5 ns | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXDA20N120AS-TUBIGBT |
2,110 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXGA28N60A3IGBT |
3,744 | 0.00 |
RFQ |
Datasheet |
Tube | GenX3™ | Obsolete | PT | 600 V | 75 A | 170 A | 1.4V @ 15V, 24A | 190 W | 700µJ (on), 2.4mJ (off) | Standard | 66 nC | 18ns/300ns | 480V, 24A, 10Ohm, 15V | 26 ns | -55°C ~ 150°C (TJ) | Surface Mount |
