| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ150H120GIGBT MODULE 1200V 250A 750W SP6 |
3,999 | 280.85 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 250 A | 750 W | 2.4V @ 15V, 150A | 100 µA | 8.8 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT150DH170GIGBT MODULE 1700V 250A 890W SP6 |
2,352 | 285.91 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 250 A | 890 W | 2.4V @ 15V, 150A | 350 µA | 13.5 nF @ 25 V | Standard | No | - | Chassis Mount |
|
|
APTGTQ150TA65TPGIGBT MODULE 650V 150A 365W SP6P |
2,208 | 292.54 |
RFQ |
Datasheet |
Bulk | - | Active | - | Three Phase Inverter | 650 V | 150 A | 365 W | 2.2V @ 15V, 150A | 150 µA | 9 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
APTGL120TA120TPGIGBT MODULE 1200V 140A 517W SP6P |
3,237 | 297.66 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGL120TDU120TPGIGBT MODULE 1200V 140A 517W SP6P |
2,813 | 297.66 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Triple, Dual - Common Source | 1200 V | 140 A | 517 W | 2.15V @ 15V, 100A | 250 µA | 6.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT100TA120TPGIGBT MODULE 1200V 140A 480W SP6P |
2,355 | 301.09 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Three Phase | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT300A120GIGBT MODULE 1200V 420A 1380W SP6 |
2,014 | 306.16 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT300DU120GIGBT MODULE 1200V 420A 1380W SP6 |
3,261 | 306.16 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 1200 V | 420 A | 1380 W | 2.1V @ 15V, 300A | 500 µA | 21 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGL700U120D4GIGBT MODULE 1200V 910A 3000W D4 |
2,263 | 306.20 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 910 A | 3000 W | 2.2V @ 15V, 600A | 4 mA | 37.2 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
APTGT600U120D4GIGBT MODULE 1200V 900A 2500W D4 |
2,880 | 311.03 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1200 V | 900 A | 2500 W | 2.1V @ 15V, 600A | 5 mA | 40 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|

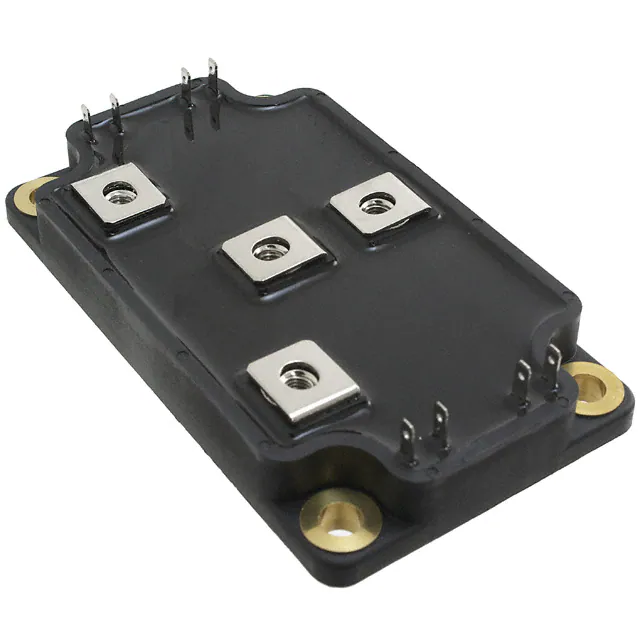

APTGT300TL60GIGBT MODULE 600V 400A 935W SP6 |
3,797 | 313.01 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Three Level Inverter | 600 V | 400 A | 935 W | 1.9V @ 15V, 300A | 350 µA | 18.4 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT300A120D3GIGBT MODULE 1200V 440A 1250W D3 |
2,344 | 318.17 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 440 A | 1250 W | 2.1V @ 15V, 300A | 8 mA | 20 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT400U170D4GIGBT MODULE 1700V 800A 2080W D4 |
2,329 | 319.53 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Single | 1700 V | 800 A | 2080 W | 2.4V @ 15V, 400A | 1 mA | 33 nF @ 25 V | Standard | No | - | Chassis Mount |
|
APTGL325A120D3GIGBT MODULE 1200V 420A 1500W D3 |
2,083 | 319.59 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 420 A | 1500 W | 2.2V @ 15V, 300A | 5 mA | 18.6 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT300TL65GIGBT MODULE 650V SP6C |
2,574 | 328.24 |
RFQ |
Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
APTGT600DU60GIGBT MODULE 600V 700A 2300W SP6 |
2,086 | 337.44 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 600 V | 700 A | 2300 W | 1.8V @ 15V, 600A | 750 µA | 49 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT200A170D3GIGBT MODULE 1700V 400A 1250W D3 |
3,379 | 338.33 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1700 V | 400 A | 1250 W | 2.4V @ 15V, 200A | 5 mA | 17 nF @ 25 V | Standard | No | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT300H60GIGBT MODULE 600V 430A 1150W SP6 |
2,213 | 343.98 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 430 A | 1150 W | 1.8V @ 15V, 300A | 350 µA | 24 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ300H65GIGBT MODULE 650V 600A 1000W SP6 |
2,927 | 344.00 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 650 V | 600 A | 1000 W | 2.3V @ 15V, 300A | 300 µA | 18.3 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Through Hole |
|
|
APTGLQ600A65T6GIGBT MODULE 650V 1200A 2000W SP6 |
3,997 | 344.24 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 650 V | 1200 A | 2000 W | 2.4V @ 15V, 600A | 600 µA | 36.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
