| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | IGBTType | Configuration | Voltage-CollectorEmitterBreakdown(Max) | Current-Collector(Ic)(Max) | Power-Max | Vce(on)(Max)@VgeIc | Current-CollectorCutoff(Max) | InputCapacitance(Cies)@Vce | Input | NTCThermistor | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
APTGLQ100A120TGIGBT MODULE 1200V 170A 520W SP4 |
3,549 | 122.11 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 170 A | 520 W | 2.42V @ 15V, 100A | 50 µA | 6.15 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT100A120T3AGIGBT MODULE 1200V 140A 595W SP3 |
2,714 | 122.29 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 140 A | 595 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Through Hole |
|
|
APTGLQ75H120T3GIGBT MODULE 1200V 130A 385W SP1 |
2,712 | 126.25 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 130 A | 385 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
|
|
APTGT100DU120TGIGBT MODULE 1200V 140A 480W SP4 |
2,821 | 128.46 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Dual, Common Source | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGT100A120TGIGBT MODULE 1200V 140A 480W SP4 |
3,195 | 128.78 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
.jpg)
|
MSCGL40X120T3AGPM-IGBT-TFS-SP3F |
2,181 | 129.06 |
RFQ |
Datasheet |
Tube | MSC | Active | Trench | Full Bridge | 1200 V | 40 A | - | - | 40 A | - | Standard | Yes | - | Chassis Mount |
|

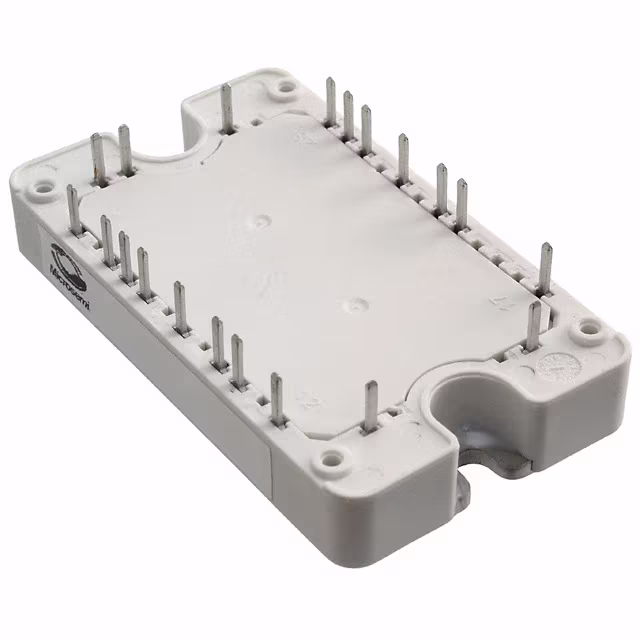

APTCV60HM45RCT3GIGBT MODULE 600V 50A 250W SP3 |
2,274 | 129.99 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Single Phase Bridge Rectifier | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGL90H120T3GIGBT MODULE 1200V 110A 385W SP3 |
2,198 | 130.80 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 110 A | 385 W | 2.25V @ 15V, 75A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT50DH170TGIGBT MODULE 1700V 75A 312W SP4 |
3,384 | 136.80 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Asymmetrical Bridge | 1700 V | 75 A | 312 W | 2.4V @ 15V, 50A | 250 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
APTGL180A120T3AGIGBT MODULE 1200V 230A 940W SP3 |
3,838 | 137.14 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 230 A | 940 W | 2.2V @ 15V, 150A | 300 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ80HR120CT3GIGBT MODULE 1200V 150A 500W SP3 |
2,329 | 137.27 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | - | 1200 V | 150 A | 500 W | 2.4V @ 15V, 80A | 150 µA | 4.6 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Through Hole |
|
|
APTGT100H60TGIGBT MODULE 600V 150A 340W SP4 |
3,925 | 139.13 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge Inverter | 600 V | 150 A | 340 W | 1.9V @ 15V, 100A | 250 µA | 6.1 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
APTCV60HM45BC20T3GIGBT MODULE 600V 50A 250W SP3 |
3,412 | 140.59 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Boost Chopper, Full Bridge | 600 V | 50 A | 250 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | Yes | -40°C ~ 150°C (TJ) | Chassis Mount |
|
|
APTGLQ200A120T3AGIGBT MOD 1200V 400A 1250W SP3F |
2,832 | 145.86 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | 2 Independent | 1200 V | 400 A | 1250 W | 2.4V @ 15V, 160A | 100 µA | 9.3 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT100DH120TGIGBT MODULE 1200V 140A 480W SP4 |
2,607 | 150.21 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Asymmetrical Bridge | 1200 V | 140 A | 480 W | 2.1V @ 15V, 100A | 250 µA | 7.2 nF @ 25 V | Standard | Yes | - | Chassis Mount |
|
|
APTCV60TLM24T3GIGBT MODULE 600V 100A 250W SP3 |
3,171 | 151.10 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Three Level Inverter | 600 V | 100 A | 250 W | 1.9V @ 15V, 75A | 250 µA | 4.62 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT50TA60PGIGBT MODULE 600V 80A 176W SP6P |
3,196 | 152.27 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Three Phase | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGT50TDU60PGIGBT MODULE 600V 80A 176W SP6P |
3,999 | 152.27 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Triple, Dual - Common Source | 600 V | 80 A | 176 W | 1.9V @ 15V, 50A | 250 µA | 3.15 nF @ 25 V | Standard | No | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ150A120TGIGBT MODULE 1200V 250A 750W SP4 |
2,039 | 152.97 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Half Bridge | 1200 V | 250 A | 750 W | 2.4V @ 15V, 150A | 100 µA | 8.8 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
|
|
APTGLQ75H120TGIGBT MODULE 1200V 130A 385W SP4 |
2,819 | 154.28 |
RFQ |
Datasheet |
Bulk | - | Active | Trench Field Stop | Full Bridge | 1200 V | 130 A | 385 W | 2.4V @ 15V, 75A | 50 µA | 4.4 nF @ 25 V | Standard | Yes | -40°C ~ 175°C (TJ) | Chassis Mount |
