| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRLR8259PBFHEXFET POWER MOSFET |
3,141 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 57A (Tc) | 4.5V, 10V | 8.7mOhm @ 21A, 10V | 2.35V @ 25µA | 10 nC @ 4.5 V | ±20V | 900 pF @ 13 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF7470PBFMOSFET N-CH 40V 10A 8SO |
3,360 | 0.36 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 10A (Ta) | 2.8V, 10V | 13mOhm @ 10A, 10V | 2V @ 250µA | 44 nC @ 4.5 V | ±12V | 3430 pF @ 20 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR7746PBFHEXFET POWER MOSFET |
2,440 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 56A (Tc) | 6V, 10V | 11.2mOhm @ 35A, 10V | 3.7V @ 100µA | 89 nC @ 10 V | ±20V | 3107 pF @ 25 V | - | 99W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRLR2908PBFHEXFET POWER MOSFET |
2,849 | 0.39 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 30A (Tc) | 4.5V, 10V | 28mOhm @ 23A, 10V | 2.5V @ 250µA | 33 nC @ 4.5 V | ±16V | 1890 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRFU3806PBFMOSFET N-CH 60V 43A IPAK |
2,293 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 43A (Tc) | - | 15.8mOhm @ 25A, 10V | 4V @ 50µA | 30 nC @ 10 V | ±20V | 1150 pF @ 50 V | - | 71W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRFH7194TRPBFHEXFET POWER MOSFET |
2,047 | 0.00 |
RFQ |
Datasheet |
Bulk | FASTIRFET™, HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 11A (Ta), 35A (Tc) | 10V | 16.4mOhm @ 21A, 10V | 3.6V @ 50µA | 19 nC @ 10 V | ±20V | 733 pF @ 50 V | - | 3.6W (Ta), 39W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRL3103STRLPBFIRL3103 - HEXFET POWER MOSFET |
2,023 | 0.47 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 64A (Tc) | 4.5V, 10V | 12mOhm @ 34A, 10V | 1V @ 250µA | 33 nC @ 4.5 V | ±16V | 1650 pF @ 25 V | - | 94W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFSL3607PBFHEXFET POWER MOSFET |
2,455 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 9mOhm @ 46A, 10V | 4V @ 100µA | 84 nC @ 10 V | ±20V | 3070 pF @ 50 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRF7457PBFSMPS HEXFET POWER MOSFET |
2,453 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 15A (Ta) | 4.5V, 10V | 7mOhm @ 15A, 10V | 3V @ 250µA | 42 nC @ 4.5 V | ±20V | 3100 pF @ 10 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLU3105PBFMOSFET N-CH 55V 25A IPAK |
2,873 | 0.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 25A (Tc) | - | 37mOhm @ 15A, 10V | 3V @ 250µA | 20 nC @ 5 V | - | 710 pF @ 25 V | - | - | - | Through Hole |
|
|
AUIRFR5505-IRPFET, 18A I(D), 55V, 0.11OHM, 1O |
2,850 | 0.70 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 55 V | 18A (Tc) | 10V | 110mOhm @ 9.6A, 10V | 4V @ 250µA | 32 nC @ 10 V | ±20V | 650 pF @ 25 V | - | 57W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFS3107PBFMOSFET N-CH 75V 195A D2PAK |
2,319 | 1.00 |
RFQ |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 75 V | 195A (Tc) | 10V | 3mOhm @ 140A, 10V | 4V @ 250µA | 240 nC @ 10 V | ±20V | 9370 pF @ 50 V | - | 370W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
IRFS23N15DTRLPMOSFET N-CH 150V 23A D2PAK |
2,712 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 23A (Tc) | - | 90mOhm @ 14A, 10V | 5.5V @ 250µA | 56 nC @ 10 V | ±30V | 1200 pF @ 25 V | - | 3.8W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF3710ZSPBFHEXFET POWER MOSFET |
2,602 | 0.00 |
RFQ |
Datasheet |
Bulk | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 59A (Tc) | 10V | 18mOhm @ 35A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 2900 pF @ 25 V | - | 160W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF7807ZPBFMOSFET N-CH 30V 11A 8SO |
2,704 | 1.00 |
RFQ |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 13.8mOhm @ 11A, 10V | 2.25V @ 250µA | 11 nC @ 4.5 V | ±20V | 770 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
IRFH4234TRPBFMOSFET N-CH 25V 22A PQFN |
3,020 | 1.00 |
RFQ |
Bulk | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 22A (Ta) | 4.5V, 10V | 4.6mOhm @ 30A | 2.1V @ 25µA | 17 nC @ 10 V | ±20V | 1011 pF @ 13 V | - | 3.5W (Ta), 27W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IRF3704SPBFMOSFET N-CH 20V 77A D2PAK |
2,814 | 1.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 77A (Tc) | 4.5V, 10V | 9mOhm @ 15A, 10V | 3V @ 250µA | 19 nC @ 4.5 V | ±20V | 1996 pF @ 10 V | - | 87W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFR7540PBFMOSFET N-CH 60V 90A DPAK |
2,379 | 1.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 90A (Tc) | - | 4.8mOhm @ 66A, 10V | 3.7V @ 100µA | 130 nC @ 10 V | ±20V | 4360 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF7842PBFMOSFET N-CH 40V 18A 8SO |
2,164 | 1.00 |
RFQ |
Datasheet |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 18A (Ta) | 4.5V, 10V | 5mOhm @ 17A, 10V | 2.25V @ 250µA | 50 nC @ 4.5 V | ±20V | 4500 pF @ 20 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

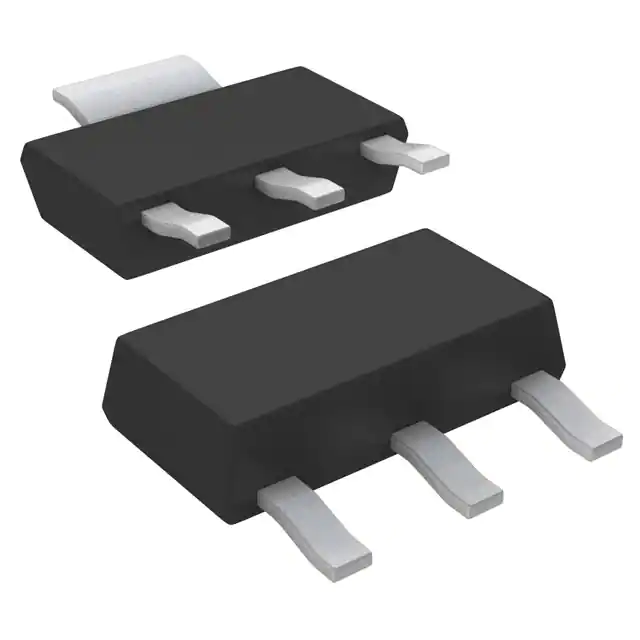

IRLL2705PBFMOSFET N-CH 55V 3.8A SOT223 |
2,661 | 1.00 |
RFQ |
Tube | HEXFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 3.8A (Ta) | 4V, 10V | 40mOhm @ 3.8A, 10V | 2V @ 250µA | 48 nC @ 10 V | ±16V | 870 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
