| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HUFA75332S3STMOSFET N-CH 55V 60A D2PAK |
44,255 | 0.44 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 60A (Tc) | 10V | 19mOhm @ 60A, 10V | 4V @ 250µA | 85 nC @ 20 V | ±20V | 1300 pF @ 25 V | - | 145W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDU8778MOSFET N-CH 25V 35A IPAK |
17,805 | 0.44 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 35A (Tc) | 4.5V, 10V | 14mOhm @ 35A, 10V | 2.5V @ 250µA | 18 nC @ 10 V | ±20V | 845 pF @ 13 V | - | 39W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDT459N6.5A, 30V, 0.035OHM, N-CHANNEL |
15,429 | 15429.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.5A (Ta) | 4.5V, 10V | 35mOhm @ 6.5A, 10V | 2V @ 250µA | 17 nC @ 10 V | ±20V | 365 pF @ 15 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | |
|
FDU8880MOSFET N-CH 30V 13A/58A IPAK |
349,749 | 0.46 |
RFQ |
Datasheet |
Tube | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 58A (Tc) | 4.5V, 10V | 10mOhm @ 35A, 10V | 2.5V @ 250µA | 31 nC @ 10 V | ±20V | 1260 pF @ 15 V | - | 55W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDJ129PMOSFET P-CH 20V 4.2A SC75-6 FLMP |
243,626 | 0.46 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 2.5V, 4.5V | 70mOhm @ 4.2A, 4.5V | 1.5V @ 250µA | 6 nC @ 4.5 V | ±12V | 780 pF @ 10 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS44880.0079A, 30V, N-CHANNEL MOSFET |
117,757 | 0.46 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.9A (Ta) | 4.5V, 10V | 22mOhm @ 7.9A, 10V | 3V @ 250µA | 13 nC @ 5 V | ±25V | 927 pF @ 15 V | - | 1W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|

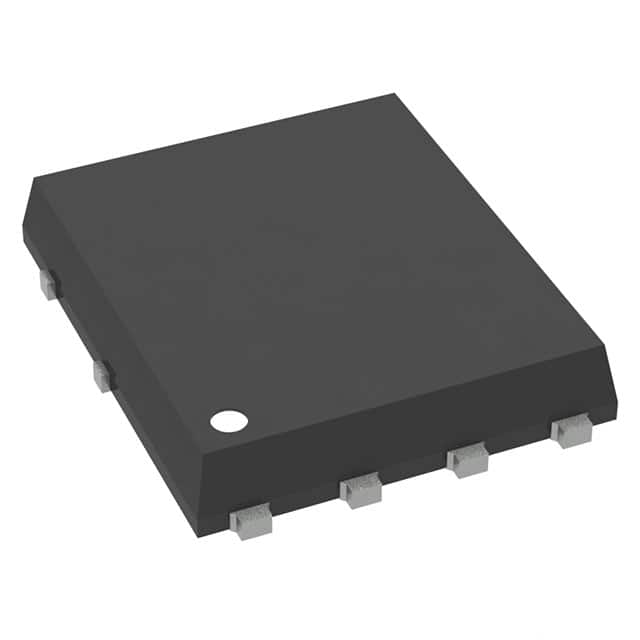

FDMS8692MOSFET N-CH 30V 12A/28A 8PQFN |
65,002 | 0.46 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 28A (Tc) | 4.5V, 10V | 9mOhm @ 12A, 10V | 3V @ 250µA | 21 nC @ 10 V | ±20V | 1265 pF @ 15 V | - | 2.5W (Ta), 41W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDT461NMOSFET N-CH 100V 540MA SOT223-4 |
47,000 | 0.46 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 540mA (Ta) | 4.5V, 10V | 2Ohm @ 540mA, 10V | 2V @ 250µA | 4 nC @ 10 V | ±20V | 74 pF @ 25 V | - | 1.13W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
HUFA76407D3STMOSFET N-CH 60V 12A TO252AA |
41,935 | 0.46 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 4.5V, 10V | 92mOhm @ 13A, 10V | 3V @ 250µA | 11.3 nC @ 10 V | ±16V | 350 pF @ 25 V | - | 38W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FQD8N25TFMOSFET N-CH 250V 6.2A DPAK |
33,444 | 0.46 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 6.2A (Tc) | 10V | 550mOhm @ 3.1A, 10V | 5V @ 250µA | 15 nC @ 10 V | ±30V | 530 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
HUF76633S3STMOSFET N-CH 100V 39A D2PAK |
31,502 | 0.46 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 39A (Tc) | 4.5V, 10V | 35mOhm @ 39A, 10V | 3V @ 250µA | 67 nC @ 10 V | ±16V | 1820 pF @ 25 V | - | 145W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDS6694MOSFET N-CH 30V 12A 8SOIC |
28,954 | 0.46 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta) | 4.5V, 10V | 11mOhm @ 12A, 10V | 3V @ 250µA | 19 nC @ 5 V | ±20V | 1293 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
HUF76139S3STKN-CHANNEL POWER MOSFET |
24,000 | 0.46 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 75A (Tc) | 4.5V, 10V | 7.5mOhm @ 75A, 10V | 3V @ 250µA | 78 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 165W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
FQU10N20TUMOSFET N-CH 200V 7.6A IPAK |
21,774 | 0.46 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 7.6A (Tc) | 10V | 360mOhm @ 3.8A, 10V | 5V @ 250µA | 18 nC @ 10 V | ±30V | 670 pF @ 25 V | - | 2.5W (Ta), 51W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
HUFA75623S3STMOSFET N-CH 100V 22A D2PAK |
32,730 | 0.47 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 22A (Tc) | 10V | 64mOhm @ 22A, 10V | 4V @ 250µA | 52 nC @ 20 V | ±20V | 790 pF @ 25 V | - | 85W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FQU2N90TUMOSFET N-CH 900V 1.7A IPAK |
349,140 | 0.48 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 900 V | 1.7A (Tc) | 10V | 7.2Ohm @ 850mA, 10V | 5V @ 250µA | 15 nC @ 10 V | ±30V | 500 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDMS0352SPOWER FIELD-EFFECT TRANSISTOR |
259,928 | 0.48 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta), 42A (Tc) | 4.5V, 10V | 2.4mOhm @ 25A, 10V | 3V @ 1mA | 90 nC @ 10 V | ±20V | 6120 pF @ 15 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD6035ALN-CHANNEL POWER MOSFET |
212,926 | 0.48 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 12A (Ta), 46A (Tc) | 4.5V, 10V | 12mOhm @ 12A, 10V | 3V @ 250µA | 18 nC @ 5 V | ±20V | 1230 pF @ 15 V | - | 1.5W (Ta), 56W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
HUF76409D3STN-CHANNEL POWER MOSFET |
211,350 | 0.48 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Tc) | 4.5V, 10V | 63mOhm @ 18A, 10V | 3V @ 250µA | 15 nC @ 10 V | ±16V | 485 pF @ 25 V | - | 49W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NDP4060MOSFET N-CH 60V 15A TO220-3 |
134,101 | 0.48 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 15A (Tc) | 10V | 100mOhm @ 7.5A, 10V | 4V @ 250µA | 17 nC @ 10 V | ±20V | 450 pF @ 25 V | - | 50W (Tc) | -65°C ~ 175°C (TJ) | Through Hole |
