| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HUF76609D3_NLN-CHANNEL POWER MOSFET |
3,747 | 1.00 |
RFQ |
Datasheet |
Bulk | UltraFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 10A (Tc) | 4.5V, 10V | 160mOhm @ 10A, 10V | 3V @ 250µA | 16 nC @ 10 V | ±16V | 425 pF @ 25 V | - | 49W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
HUFA75344P3_NLN-CHANNEL POWER MOSFET |
2,938 | 1.00 |
RFQ |
Datasheet |
Bulk | UltraFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 8mOhm @ 75A, 10V | 4V @ 250µA | 210 nC @ 20 V | ±20V | 3200 pF @ 25 V | - | 285W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
HUF76629D3ST_NLN-CHANNEL POWER MOSFET |
2,738 | 1.00 |
RFQ |
Datasheet |
Bulk | UltraFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 20A (Tc) | 4.5V, 10V | 52mOhm @ 20A, 10V | 3V @ 250µA | 43 nC @ 10 V | ±16V | 1285 pF @ 25 V | - | 150W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
HUFA76429D3_NLN-CHANNEL POWER MOSFET |
2,347 | 1.00 |
RFQ |
Datasheet |
Bulk | UltraFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 4.5V, 10V | 23mOhm @ 20A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±16V | 1480 pF @ 25 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
RFP40N10LEN-CHANNEL POWER MOSFET |
2,846 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 5V | 40Ohm @ 40A, 5V | 3V @ 250µA | 180 nC @ 10 V | ±10V | 3000 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDD850N10LDMOSFET N-CH 100V 15.3A TO252-4 |
2,767 | 1.00 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15.3A (Tc) | - | 75mOhm @ 12A, 10V | 2.5V @ 250µA | 28.9 nC @ 10 V | ±20V | 1465 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQA28N5028.4A, 500V, 0.16OHM, N-CHANNEL |
3,169 | 1.00 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 28.4A (Tc) | 10V | 160mOhm @ 14.2A, 10V | 5V @ 250µA | 140 nC @ 10 V | ±30V | 5600 pF @ 25 V | - | 310W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDP045N10A120A, 100V, 0.0045OHM, N CHANNEL |
3,617 | 1.00 |
RFQ |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 4.5mOhm @ 100A, 10V | 4V @ 250µA | 74 nC @ 10 V | ±20V | 5270 pF @ 50 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
|
FDFME3N311ZTMOSFET N-CH 30V 1.8A 6UMLP |
3,396 | 1.00 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.8A (Ta) | - | 299mOhm @ 1.6A, 4.5V | 1.5V @ 250µA | 1.4 nC @ 4.5 V | ±12V | 75 pF @ 15 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQP6N706.2A, 700V, 1.5OHM, N-CHANNEL |
2,679 | 0.00 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 6.2A (Tc) | 10V | 1.5Ohm @ 3.1A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1400 pF @ 25 V | - | 142W (Tc) | -55°C ~ 150°C (TJ) | |
|
|
FQA24N5024A, 500V, 0.2OHM, N-CHANNEL, M |
3,209 | 1.00 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 200mOhm @ 12A, 10V | 5V @ 250µA | 120 nC @ 10 V | ±30V | 4500 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQPF12P20XDTUMOSFET P-CH 200V 7.3A TO-220F |
3,001 | 1.00 |
RFQ |
Bulk | QFET® | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 7.3A (Tc) | 10V | 470mOhm @ 3.65A, 10V | 5V @ 250µA | 40 nC @ 10 V | ±30V | 1200 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
FDMC6683PZ14A, 20V, 0.0084OHM, P-CHANNEL |
2,859 | 0.00 |
RFQ |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 40A (Tc) | 2.5V, 4.5V | - | 1.5V @ 250µA | 74 nC @ 10 V | ±12V | 7995 pF @ 10 V | - | 26W (Tc) | -55°C ~ 150°C (TJ) | ||
|

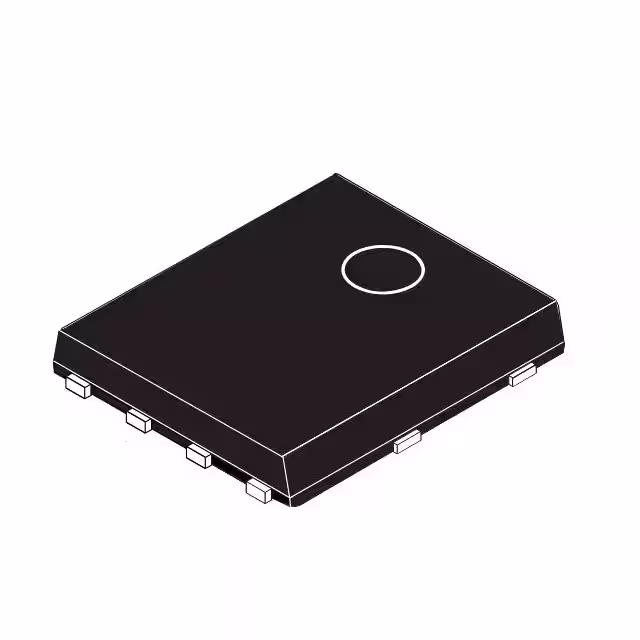

NVTFS5824NLTAGPOWER FIELD-EFFECT TRANSISTOR |
3,292 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 37A (Tc) | 4.5V, 10V | 20.5mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 57W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC86106LZMOSFET N-CH 100V 3.3A POWER33 |
2,039 | 1.00 |
RFQ |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.3A (Ta), 7.5A (Tc) | - | 103mOhm @ 3.3A, 10V | 2.2V @ 250µA | 6 nC @ 10 V | - | 310 pF @ 50 V | - | 2.3W (Ta), 19W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
FDI045N10AMOSFET N-CH 100V 120A I2PAK-3 |
3,582 | 1.00 |
RFQ |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 10V | 4.5mOhm @ 100A, 10V | 4V @ 250µA | 74 nC @ 10 V | ±20V | 5270 pF @ 50 V | - | 263W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
|
FDT434P6A, 20V, 0.05OHM, P-CHANNEL, MO |
3,795 | 0.00 |
RFQ |
Bulk | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6A (Ta) | 2.5V, 4.5V | 50mOhm @ 6A, 4.5V | 1V @ 250µA | 19 nC @ 4.5 V | ±8V | 1187 pF @ 10 V | - | 3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
FDZ595PZFDZ595PZ |
3,192 | 1.00 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
FDG313N0.95A, 25V, N-CHANNEL, MOSFET |
3,167 | 1.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 950mA (Ta) | 2.7V, 4.5V | 450mOhm @ 500mA, 4.5V | 1.5V @ 250µA | 2.3 nC @ 4.5 V | ±8V | 50 pF @ 10 V | - | 750mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDS6921AFDS6921A |
2,824 | 1.00 |
RFQ |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
