| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQB25N33TM-F085MOSFET N-CH 330V 25A D2PAK |
8,000 | 1.75 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 330 V | 25A (Tc) | 10V | 230mOhm @ 12.5A, 10V | 5V @ 250µA | 75 nC @ 15 V | ±30V | 2010 pF @ 25 V | - | 3.1W (Ta), 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

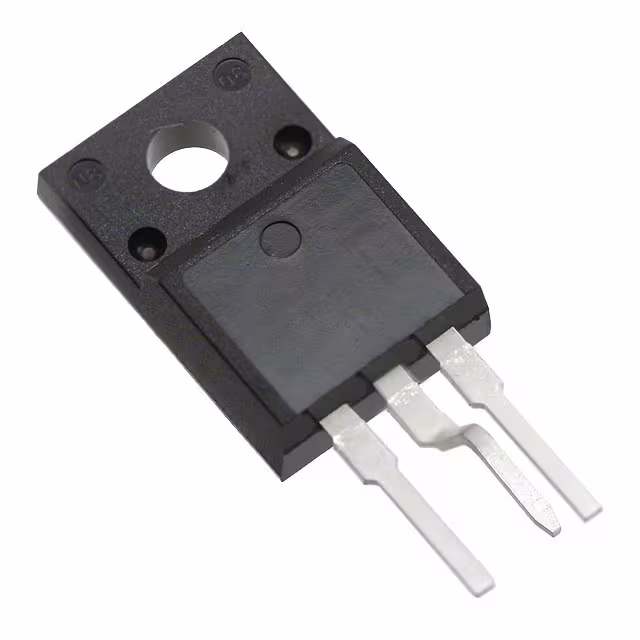

FDPF51N25YDTUMOSFET N-CH 250V 51A TO220F-3 |
566 | 1.81 |
RFQ |
Datasheet |
Bulk | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 51A (Tc) | 10V | 60mOhm @ 25.5A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 3410 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQPF22N30MOSFET N-CH 300V 12A TO220F |
1,572 | 1.82 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 12A (Tc) | 10V | 160mOhm @ 6A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2200 pF @ 25 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQPF17N40TMOSFET N-CH 400V 9.5A TO220F |
642 | 1.83 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 9.5A (Tc) | 10V | 270mOhm @ 4.75A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±30V | 2300 pF @ 25 V | - | 56W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF644B-FP001IRF644B - DISCRETE MOSFET |
980 | 1.84 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 14A (Tc) | 10V | 280mOhm @ 7A, 10V | 4V @ 250µA | 60 nC @ 10 V | ±30V | 1600 pF @ 25 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
HUF75631S3STMOSFET N-CH 100V 33A D2PAK |
321 | 2.11 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Tc) | 10V | 40mOhm @ 33A, 10V | 4V @ 250µA | 79 nC @ 20 V | ±20V | 1220 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FQA9N90-F109POWER FIELD-EFFECT TRANSISTOR, 8 |
398 | 2.37 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 8.6A (Tc) | 10V | 1.3Ohm @ 4.3A, 10V | 5V @ 250µA | 72 nC @ 10 V | ±30V | 2700 pF @ 25 V | - | 240W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCH190N65F-F085MOSFET N-CH 650V 20.6A TO247-3 |
294 | 3.33 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20.6A (Tc) | 10V | 190mOhm @ 27A, 10V | 5V @ 250µA | 82 nC @ 10 V | ±20V | 3181 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDP039N08B-F102MOSFET N-CH 80V 120A TO220-3 |
399 | 4.39 |
RFQ |
Datasheet |
Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 10V | 3.9mOhm @ 100A, 10V | 4.5V @ 250µA | 133 nC @ 10 V | ±20V | 9450 pF @ 40 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FCH041N65EFL4POWER FIELD-EFFECT TRANSISTOR, N |
232 | 7.45 |
RFQ |
Datasheet |
Bulk | FRFET®, SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 7.6mA | 298 nC @ 10 V | ±20V | 12560 pF @ 100 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FCH041N65F-F085MOSFET N-CH 650V 76A TO247-3 |
207 | 9.24 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 76A (Tc) | 10V | 41mOhm @ 38A, 10V | 5V @ 250µA | 304 nC @ 10 V | ±20V | 13566 pF @ 25 V | - | 595W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
2N7002MTFMOSFET N-CH 60V 115MA SOT23-3 |
3,524 | 0.04 |
RFQ |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Tc) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
MCH3476-TL-WMOSFET N-CH 20V 2A SC70FL/MCPH3 |
2,249 | 0.09 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | - | 125mOhm @ 1A, 4.5V | 1.3V @ 1mA | 1.8 nC @ 4.5 V | ±12V | 128 pF @ 10 V | - | 800mW (Ta) | 150°C (TJ) | Surface Mount |
|
2N7000BUMOSFET N-CH 60V 200MA TO92-3 |
2,246 | 0.09 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Tc) | 4.5V, 10V | 5Ohm @ 500mA, 10V | 3V @ 1mA | - | ±20V | 50 pF @ 25 V | - | 400mW (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFR214BTFFP001N-CHANNEL POWER MOSFET |
2,107 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 2.2A (Tc) | 10V | 2Ohm @ 1.1A, 10V | 4V @ 250µA | 10.5 nC @ 10 V | ±30V | 275 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFR310BTFN-CHANNEL POWER MOSFET |
2,008 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 1.7A (Tc) | 10V | 3.4Ohm @ 850mA,10V | 4V @ 250µA | 10 nC @ 10 V | ±30V | 330 pF @ 25 V | - | 2.5W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFI624BTUFP001N-CHANNEL POWER MOSFET |
3,684 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 4.1A (Tc) | 10V | 1.1Ohm @ 2.05A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±30V | 450 pF @ 25 V | - | 3.13W (Ta), 49W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQI4N25TUMOSFET N-CH 250V 3.6A I2PAK |
3,041 | 0.00 |
RFQ |
Datasheet |
Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 3.6A (Tc) | 10V | 1.75Ohm @ 1.8A, 10V | 5V @ 250µA | 5.6 nC @ 10 V | ±30V | 200 pF @ 25 V | - | 3.13W (Ta), 52W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQNL1N50BTAMOSFET N-CH 500V 270MA TO92-3 |
2,193 | 0.00 |
RFQ |
Datasheet |
Bulk | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 270mA (Tc) | 10V | 9Ohm @ 135mA, 10V | 3.7V @ 250µA | 5.5 nC @ 10 V | ±30V | 150 pF @ 25 V | - | 1.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF610AN-CHANNEL POWER MOSFET |
3,841 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.3A (Tc) | 10V | 1.5Ohm @ 1.65A, 10V | 4V @ 250µA | 10 nC @ 10 V | ±30V | 210 pF @ 25 V | - | 38W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
