| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FDMC86570LET60MOSFET N-CH 60V 18A/87A POWER33 |
3,256 | 3.18 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 18A (Ta), 87A (Tc) | 4.5V, 10V | 4.3mOhm @ 18A, 10V | 3V @ 250µA | 88 nC @ 10 V | ±20V | 4790 pF @ 30 V | - | 2.8W (Ta), 65W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDP5N50NZMOSFET N-CH 500V 4.5A TO220-3 |
2,000 | 1.46 |
RFQ |
Datasheet |
Tube | UniFET-II™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.5A (Tc) | 10V | 1.5Ohm @ 2.25A, 10V | 5V @ 250µA | 12 nC @ 10 V | ±25V | 440 pF @ 25 V | - | 78W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTMFSC004N08MCMOSFET N-CH 80V 86A/136A 8DFN |
3,866 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 86A (Ta), 136A (Tc) | 6V, 10V | 4mOhm @ 44A, 10V | 4V @ 250µA | 43.4 nC @ 10 V | ±20V | 2980 pF @ 40 V | - | 51W (Ta), 127W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDMC86259PMOSFET P-CH 150V 3.2A/13A PWR33 |
2,169 | 3.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 3.2A (Ta), 13A (Tc) | 6V, 10V | 107mOhm @ 3A, 10V | 4V @ 250µA | 32 nC @ 10 V | ±25V | 2045 pF @ 75 V | - | 2.3W (Ta), 62W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NVMFS5113PLWFT1GMOSFET P-CH 60V 10A/64A 5DFN |
3,629 | 3.23 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 10A (Ta), 64A (Tc) | 4.5V, 10V | 14mOhm @ 17A, 10V | 2.5V @ 250µA | 83 nC @ 10 V | ±20V | 4400 pF @ 25 V | - | 3.8W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC007N08LCDCMOSFET N-CH 80V 64A 8PQFN |
3,694 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 64A (Tc) | 4.5V, 10V | 6.8mOhm @ 22A, 10V | 2.5V @ 130µA | 44 nC @ 10 V | ±20V | 3070 pF @ 40 V | - | 57W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDMC86340MOSFET N-CH 80V 14A/48A POWER33 |
3,077 | 2.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 14A (Ta), 48A (Tc) | 8V, 10V | 6.5mOhm @ 14A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 3885 pF @ 40 V | - | 2.3W (Ta), 54W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
MTP3055VLMOSFET N-CH 60V 12A TO220-3 |
3,920 | 1.63 |
RFQ |
Datasheet |
Bulk,Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Tc) | 5V | 180mOhm @ 6A, 5V | 2V @ 250µA | 10 nC @ 5 V | ±15V | 570 pF @ 25 V | - | 48W (Tc) | -65°C ~ 175°C (TJ) | Through Hole |
|
|
NTTFS008P03P8ZMOSFET P-CH 30V 22A/96A 8PQFN |
2,031 | 3.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta), 96A (Tc) | 4.5V, 10V | 3.8mOhm @ 18A, 10V | 3V @ 250µA | 134 nC @ 10 V | ±25V | 5600 pF @ 15 V | - | 2.36W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQP13N10MOSFET N-CH 100V 12.8A TO220-3 |
2,507 | 1.65 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 12.8A (Tc) | 10V | 180mOhm @ 6.4A, 10V | 4V @ 250µA | 16 nC @ 10 V | ±25V | 450 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDMS86101AMOSFET N-CH 100V 13A/60A 8PQFN |
2,604 | 3.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 13A (Ta), 60A (Tc) | 6V, 10V | 8mOhm @ 13A, 10V | 4V @ 250µA | 58 nC @ 10 V | ±20V | 4120 pF @ 50 V | - | 2.5W (Ta), 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQP3P20MOSFET P-CH 200V 2.8A TO220-3 |
7,400 | 1.70 |
RFQ |
Datasheet |
Bulk,Tube | QFET® | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 200 V | 2.8A (Tc) | 10V | 2.7Ohm @ 1.4A, 10V | 5V @ 250µA | 8 nC @ 10 V | ±30V | 250 pF @ 25 V | - | 52W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDP8447LMOSFET N-CH 40V 12A/50A TO220-3 |
799 | 1.70 |
RFQ |
Datasheet |
Tube,Tube | PowerTrench® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 12A (Ta), 50A (Tc) | 4.5V, 10V | 8.7mOhm @ 14A, 10V | 3V @ 250µA | 49 nC @ 10 V | ±20V | 2500 pF @ 20 V | - | 2W (Ta), 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDP55N06MOSFET N-CH 60V 55A TO220-3 |
2,546 | 1.72 |
RFQ |
Datasheet |
Tube | UniFET™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 55A (Tc) | 10V | 22mOhm @ 27.5A, 10V | 4V @ 250µA | 37 nC @ 10 V | ±25V | 1510 pF @ 25 V | - | 114W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FQP33N10MOSFET N-CH 100V 33A TO220-3 |
3,352 | 1.76 |
RFQ |
Datasheet |
Bulk,Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 33A (Tc) | 10V | 52mOhm @ 16.5A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±25V | 1500 pF @ 25 V | - | 127W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NTMFS002P03P8ZT1GMOSFET, POWER -30V P-CHANNEL, SO |
3,487 | 3.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 40.2A (Ta), 263A (Tc) | 4.5V, 10V | 1.4mOhm @ 23A, 10V | 3V @ 250µA | 217 nC @ 4.5 V | ±25V | 14950 pF @ 15 V | - | 3.3W (Ta), 138.9W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQPF20N06LMOSFET N-CH 60V 15.7A TO220F |
2,676 | 1.81 |
RFQ |
Datasheet |
Tube | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 60 V | 15.7A (Tc) | 5V, 10V | 55mOhm @ 7.85A, 10V | 2.5V @ 250µA | 13 nC @ 5 V | ±20V | 630 pF @ 25 V | - | 30W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
FQP11N40CMOSFET N-CH 400V 10.5A TO220-3 |
2,506 | 1.81 |
RFQ |
Datasheet |
Bulk,Tube | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 10.5A (Tc) | 10V | 530mOhm @ 5.25A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±30V | 1090 pF @ 25 V | - | 135W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDB5800MOSFET N-CH 60V 14A/80A D2PAK |
3,714 | 3.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta), 80A (Tc) | 4.5V, 10V | 6mOhm @ 80A, 10V | 2.5V @ 250µA | 135 nC @ 10 V | ±20V | 6625 pF @ 15 V | - | 242W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

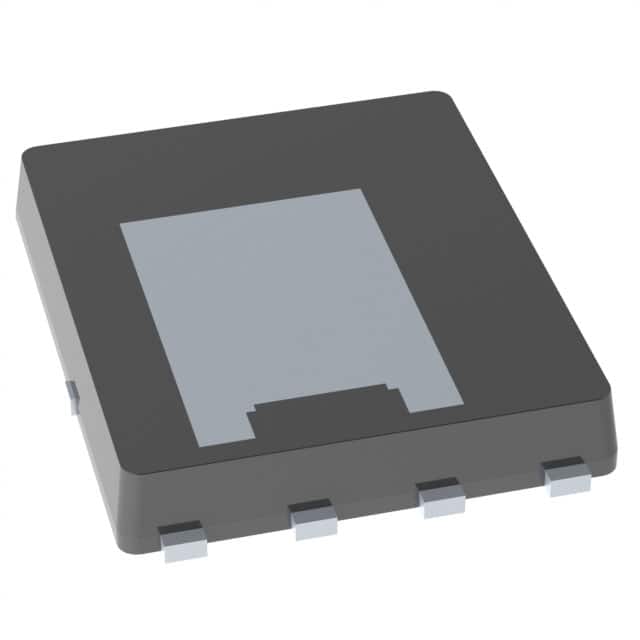

FDMS86500DCMOSFET N-CH 60V 29A DLCOOL56 |
3,467 | 3.79 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 29A (Ta), 108A (Tc) | 8V, 10V | 2.3mOhm @ 29A, 10V | 4.5V @ 250µA | 107 nC @ 10 V | ±20V | 7680 pF @ 30 V | - | 3.2W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
