| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SBSS84LT1GMOSFET P-CH 50V 130MA SOT23-3 |
340,855 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 50 V | 130mA (Ta) | 5V | 10Ohm @ 100mA, 5V | 2V @ 250µA | 2.2 nC @ 10 V | ±20V | 36 pF @ 5 V | - | 225mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDB075N15AMOSFET N-CH 150V 130A D2PAK |
5,597 | 5.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 7.5mOhm @ 100A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 7350 pF @ 75 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FCPF220N80MOSFET N-CH 800V 23A TO220F |
490 | 6.58 |
RFQ |
Datasheet |
Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 23A (Tc) | 10V | 220mOhm @ 11.5A, 10V | 4.5V @ 2.3mA | 105 nC @ 10 V | ±20V | 4560 pF @ 100 V | - | 44W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDP075N15A-F102MOSFET N-CH 150V 130A TO220-3 |
400 | 6.86 |
RFQ |
Datasheet |
Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 7.5mOhm @ 100A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 7350 pF @ 75 V | - | 333W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDL100N50FMOSFET N-CH 500V 100A TO264-3 |
5,143 | 14.08 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 100A (Tc) | 10V | 55mOhm @ 50A, 10V | 5V @ 250µA | 238 nC @ 10 V | ±30V | 12000 pF @ 25 V | - | 2500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

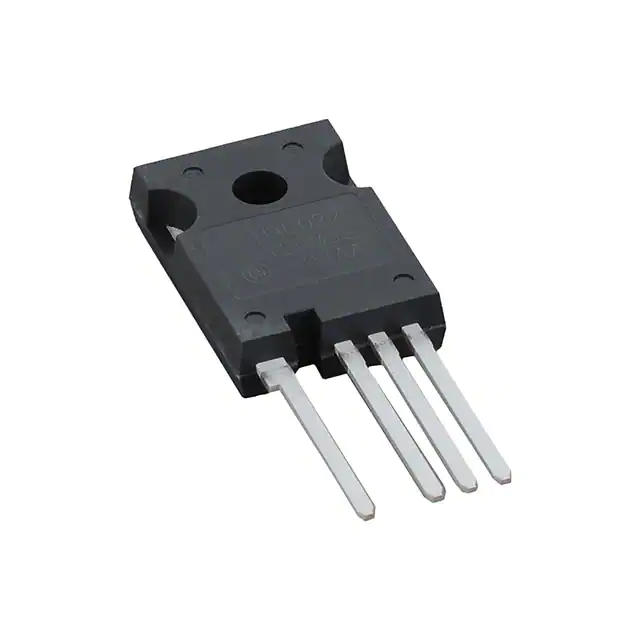

NTH4L022N120M3SSIC MOS TO247-4L 22MOHM 1200V |
184 | 36.15 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 68A (Tc) | 18V | 30mOhm @ 40A, 18V | 4.4V @ 20mA | 151 nC @ 18 V | +22V, -10V | 3175 pF @ 800 V | - | 352W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
NTHL020N120SC1SICFET N-CH 1200V 103A TO247-3 |
2,989 | 53.04 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 103A (Tc) | 20V | 28mOhm @ 60A, 20V | 4.3V @ 20mA | 203 nC @ 20 V | +25V, -15V | 2890 pF @ 800 V | - | 535W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
NTR5103NT1GMOSFET N-CH 60V 260MA SOT23-3 |
204,968 | 0.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 260mA (Ta) | 4.5V, 10V | 2.5Ohm @ 240mA, 10V | 2.6V @ 250µA | 0.81 nC @ 5 V | ±30V | 40 pF @ 25 V | - | 300mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
2N7002ET7GMOSFET N-CH 60V 260MA SOT23-3 |
34,159 | 0.22 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 260mA (Ta) | 4.5V, 10V | 2.5Ohm @ 240mA, 10V | 2.5V @ 250µA | 0.81 nC @ 5 V | ±20V | 40 pF @ 25 V | - | 300mW (Tj) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
2V7002KT1GMOSFET N-CH 60V 320MA SOT23 |
66,600 | 0.34 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 320mA (Ta) | 4.5V, 10V | 1.6Ohm @ 500mA, 10V | 2.3V @ 250µA | 0.7 nC @ 4.5 V | ±20V | 24.5 pF @ 20 V | - | 300mW (Tj) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTK3134NT5GMOSFET N-CH 20V 750MA SOT723 |
13,931 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 750mA (Ta) | 1.5V, 4.5V | 350mOhm @ 890mA, 4.5V | 1.2V @ 250µA | - | ±6V | 120 pF @ 16 V | - | 310mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVR4003NT3GMOSFET N-CH 30V 500MA SOT23 |
76,624 | 0.46 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 500mA (Ta) | 2.5V, 4V | 1.5Ohm @ 10mA, 4V | 1.4V @ 250µA | 1.15 nC @ 5 V | ±20V | 21 pF @ 5 V | - | 690mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTA4001NT1GMOSFET N-CH 20V 238MA SC75 |
9,125 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 238mA (Tj) | 2.5V, 4.5V | 3Ohm @ 10mA, 4.5V | 1.5V @ 100µA | - | ±10V | 20 pF @ 5 V | - | 300mW (Tj) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTA7002NT1GMOSFET N-CH 30V 154MA SC75 |
27,633 | 0.43 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 154mA (Tj) | 2.5V, 4.5V | 7Ohm @ 154mA, 4.5V | 1.5V @ 100µA | - | ±10V | 20 pF @ 5 V | - | 300mW (Tj) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVTR4503NT1GMOSFET N-CH 30V 1.5A SOT23-3 |
430 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.5A (Ta) | 4.5V, 10V | 110mOhm @ 2.5A, 10V | 3V @ 250µA | 7 nC @ 10 V | ±20V | 135 pF @ 15 V | - | 420mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BVSS123LT1GMOSFET N-CH 100V 170MA SOT23-3 |
4,781 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170mA (Ta) | 10V | 6Ohm @ 100mA, 10V | 2.8V @ 1mA | - | ±20V | 20 pF @ 25 V | - | 225mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTNUS3171PZT5GMOSFET P-CH 20V 150MA SOT1123 |
21,625 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 150mA (Ta) | 1.2V, 4.5V | 3.5Ohm @ 100mA, 4.5V | 1V @ 250µA | - | ±8V | 13 pF @ 15 V | - | 125mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTZS3151PT1GMOSFET P-CH 20V 860MA SOT563 |
9,188 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 860mA (Ta) | 1.8V, 4.5V | 150mOhm @ 950mA, 4.5V | 1V @ 250µA | 5.6 nC @ 4.5 V | ±8V | 458 pF @ 16 V | - | 170mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDN359BNMOSFET N-CH 30V 2.7A SUPERSOT3 |
86,780 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Ta) | 4.5V, 10V | 46mOhm @ 2.7A, 10V | 3V @ 250µA | 7 nC @ 5 V | ±20V | 650 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTR4101PT1HMOSFET P-CH 20V 1.8A SOT23-3 |
5,952 | 0.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.8V, 4.5V | 85mOhm @ 1.6A, 4.5V | 1.2V @ 250µA | 8.5 nC @ 4.5 V | ±8V | 675 pF @ 10 V | - | 420mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
