| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQD7N10LTMMOSFET N-CH 100V 5.8A DPAK |
50,660 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.8A (Tc) | 5V, 10V | 350mOhm @ 2.9A, 10V | 2V @ 250µA | 6 nC @ 5 V | ±20V | 290 pF @ 25 V | - | 2.5W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDD6N25TMMOSFET N-CH 250V 4.4A DPAK |
2,495 | 0.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | UniFET™ | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 250 V | 4.4A (Tc) | 10V | 1.1Ohm @ 2.2A, 10V | 5V @ 250µA | 6 nC @ 10 V | ±30V | 250 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDS6675BZMOSFET P-CH 30V 11A 8SOIC |
2,135 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 13mOhm @ 11A, 10V | 3V @ 250µA | 62 nC @ 10 V | ±25V | 2470 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFM120ATFMOSFET N-CH 100V 2.3A SOT223-4 |
30,098 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.3A (Ta) | 10V | 200mOhm @ 1.15A, 10V | 4V @ 250µA | 22 nC @ 10 V | ±20V | 480 pF @ 25 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQT3P20TFMOSFET P-CH 200V 670MA SOT223-4 |
17,225 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 670mA (Tc) | 10V | 2.7Ohm @ 335mA, 10V | 5V @ 250µA | 8 nC @ 10 V | ±30V | 250 pF @ 25 V | - | 2.5W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

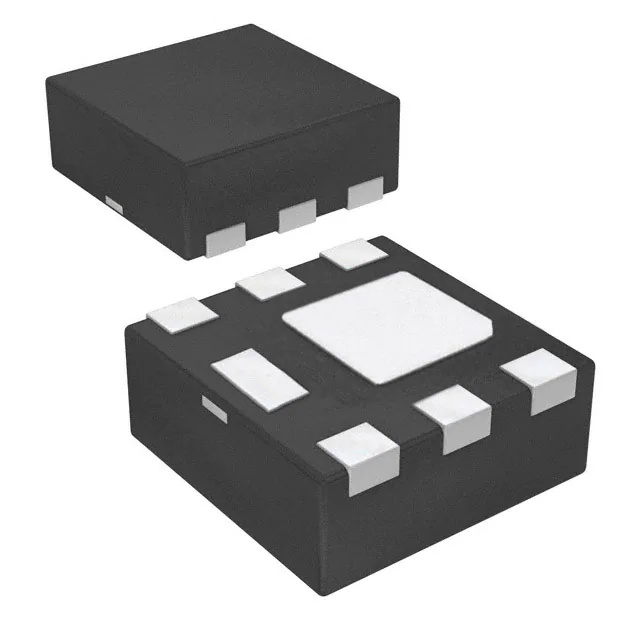

NTLJS7D2P02P8ZTAGMOSFET P-CH 20V 7.9A 6PQFN |
11,948 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 7.9A (Ta) | 2.5V, 4.5V | 9mOhm @ 10A, 4.5V | 1.5V @ 250µA | 26.7 nC @ 4.5 V | ±8V | 2790 pF @ 10 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTGS3136PT1GMOSFET P-CH 20V 3.7A 6TSOP |
29,829 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 1.8V, 4.5V | 33mOhm @ 5.1A, 4.5V | 1V @ 250µA | 29 nC @ 4.5 V | ±8V | 1901 pF @ 10 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQD5P20TMMOSFET P-CH 200V 3.7A DPAK |
8,615 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 3.7A (Tc) | 10V | 1.4Ohm @ 1.85A, 10V | 5V @ 250µA | 13 nC @ 10 V | ±30V | 430 pF @ 25 V | - | 2.5W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDS6679AZMOSFET P-CH 30V 13A 8SOIC |
11,680 | 0.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 9.3mOhm @ 13A, 10V | 3V @ 250µA | 96 nC @ 10 V | ±25V | 3845 pF @ 15 V | - | 2.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDT86244MOSFET N-CH 150V 2.8A SOT223-4 |
23,278 | 0.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 2.8A (Tc) | 6V, 10V | 128mOhm @ 2.8A, 10V | 4V @ 250µA | 7 nC @ 10 V | ±20V | 395 pF @ 75 V | - | 2.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMA530PZMOSFET P-CH 30V 6.8A 6MICROFET |
46,815 | 0.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 6.8A (Ta) | 4.5V, 10V | 35mOhm @ 6.8A, 10V | 3V @ 250µA | 24 nC @ 10 V | ±25V | 1070 pF @ 15 V | - | 2.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDMC4435BZMOSFET P-CH 30V 8.5A/18A 8MLP |
930 | 0.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 8.5A (Ta), 18A (Tc) | 4.5V, 10V | 20mOhm @ 8.5A, 10V | 3V @ 250µA | 46 nC @ 10 V | ±25V | 2045 pF @ 15 V | - | 2.3W (Ta), 31W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS4C029NT1GMOSFET N-CH 30V 15A/46A 5DFN |
74,224 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Ta), 46A (Tc) | 4.5V, 10V | 5.88mOhm @ 30A, 10V | 2.2V @ 250µA | 18.6 nC @ 10 V | ±20V | 987 pF @ 15 V | - | 2.49W (Ta), 23.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDT86113LZMOSFET N-CH 100V 3.3A SOT223-4 |
74,596 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.3A (Tc) | 4.5V, 10V | 100mOhm @ 3.3A, 10V | 2.5V @ 250µA | 6.8 nC @ 10 V | ±20V | 315 pF @ 50 V | - | 2.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQD4P25TM-WSMOSFET P-CH 250V 3.1A DPAK |
9,457 | 1.04 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Last Time Buy | P-Channel | MOSFET (Metal Oxide) | 250 V | 3.1A (Tc) | 10V | 2.1Ohm @ 1.55A, 10V | 5V @ 250µA | 14 nC @ 10 V | ±30V | 420 pF @ 25 V | - | 2.5W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
, SC-63.JPG)
|
FDD1600N10ALZMOSFET N-CH 100V 6.8A TO252 |
21,192 | 1.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 6.8A (Tc) | 5V, 10V | 160mOhm @ 3.4A, 10V | 2.8V @ 250µA | 3.61 nC @ 10 V | ±20V | 225 pF @ 50 V | - | 14.9W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTHS4101PT1GMOSFET P-CH 20V 4.8A CHIPFET |
20,445 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.8A (Tj) | 1.8V, 4.5V | 34mOhm @ 4.8A, 4.5V | 1.5V @ 250µA | 35 nC @ 4.5 V | ±8V | 2100 pF @ 16 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLJS17D0P03P8ZTAGMOSFET P-CH 30V 7A 6PQFN |
7,843 | 1.13 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 7A (Ta) | 4.5V, 10V | 11.3mOhm @ 10A, 10V | 3V @ 250µA | 38 nC @ 10 V | ±25V | 1600 pF @ 15 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDMC3612MOSFET N-CH 100V 3.3A/16A 8MLP |
22,060 | 1.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.3A (Ta), 16A (Tc) | 6V, 10V | 110mOhm @ 3.3A, 10V | 4V @ 250µA | 21 nC @ 10 V | ±20V | 880 pF @ 50 V | - | 2.3W (Ta), 35W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FQD7P20TMMOSFET P-CH 200V 5.7A DPAK |
90,836 | 1.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 5.7A (Tc) | 10V | 690mOhm @ 2.85A, 10V | 5V @ 250µA | 25 nC @ 10 V | ±30V | 770 pF @ 25 V | - | 2.5W (Ta), 55W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
