| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

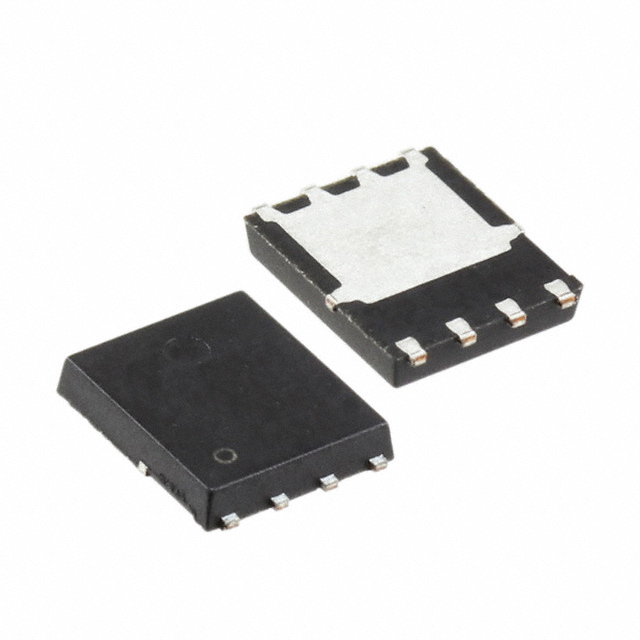

NVMFS5834NLT1GMOSFET N-CH 40V 14A/75A 5DFN |
3,580 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 14A (Ta), 75A (Tc) | 4.5V, 10V | 9.3mOhm @ 20A, 10V | 3V @ 250µA | 24 nC @ 10 V | ±20V | 1231 pF @ 20 V | - | 3.6W (Ta), 107W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS6B85NLT1GMOSFET N-CH 100V 5.6A/19A 5DFN |
3,541 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.6A (Ta), 19A (Tc) | 4.5V, 10V | 46mOhm @ 10A, 10V | 2.4V @ 250µA | 7.9 nC @ 10 V | ±16V | 480 pF @ 25 V | - | 3.5W (Ta), 42W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVTFS4823NTAGMOSFET N-CH 30V 13A 8WDFN |
2,964 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 10.5mOhm @ 15A, 10V | 2.5V @ 250µA | 6 nC @ 4.5 V | ±20V | 750 pF @ 12 V | - | 3.1W (Ta), 21W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS4824NTAGMOSFET N-CH 30V 18.2A 8WDFN |
2,196 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 18.2A (Ta) | 4.5V, 10V | 4.7mOhm @ 23A, 10V | 2.5V @ 250µA | 14 nC @ 4.5 V | ±20V | 1740 pF @ 12 V | - | 3.2W (Ta), 21W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVTFS5826NLWFTAGMOSFET N-CH 60V 7.6A 8WDFN |
2,089 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 7.6A (Ta) | 4.5V, 10V | 24mOhm @ 10A, 10V | 2.5V @ 250µA | 16 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.2W (Ta), 22W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SFT1443-TL-WMOSFET N-CH 100V 9A DPAK/TP-FA |
3,859 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 9A (Ta) | 4V, 10V | 225mOhm @ 3A, 10V | 2.6V @ 1mA | 9.8 nC @ 10 V | ±20V | 490 pF @ 20 V | - | 1W (Ta), 19W (Tc) | 150°C (TJ) | Surface Mount |
|
STD110N02RT4GMOSFET N-CH 24V 32A DPAK |
3,026 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 24 V | 32A (Ta) | 4.5V, 10V | 4.6mOhm @ 20A, 10V | 2V @ 250µA | 28 nC @ 4.5 V | ±20V | 3440 pF @ 20 V | - | 1.5W (Ta), 110W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVD5803NT4GMOSFET N-CH 40V 85A DPAK |
3,553 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 85A (Tc) | 5V, 10V | 5.7mOhm @ 50A, 10V | 3.5V @ 250µA | 51 nC @ 10 V | ±20V | 3220 pF @ 25 V | - | 83W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVD5806NT4GMOSFET N-CH 40V 33A DPAK |
2,687 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 33A (Tc) | 4.5V, 10V | 19mOhm @ 15A, 10V | 2.5V @ 250µA | 38 nC @ 10 V | ±20V | 860 pF @ 25 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD9509L-F085MOSFET P-CH 40V 90A DPAK |
3,723 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 90A (Tc) | 4.5V, 10V | 7.5mOhm @ 70A, 10V | 3V @ 250µA | 75 nC @ 10 V | ±16V | 3350 pF @ 20 V | - | 150W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDWS9509L-F085MOSFET P-CH 40V 65A 8DFN |
3,839 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 65A (Tc) | 4.5V, 10V | 8mOhm @ 65A, 10V | 3V @ 250µA | 67 nC @ 10 V | ±16V | 3360 pF @ 20 V | - | 107W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDWS9510L-F085MOSFET P-CH 40V 50A 8DFN |
2,027 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 13.5mOhm @ 50A, 10V | 3V @ 250µA | 37 nC @ 10 V | ±16V | 2320 pF @ 20 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS5A160PLZWFT1GMOSFET P-CH 60V 15A/100A 5DFN |
2,616 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 15A (Ta), 100A (Tc) | 4.5V, 10V | 7.7mOhm @ 50A, 10V | 2.6V @ 1mA | 160 nC @ 10 V | ±20V | 7700 pF @ 20 V | - | 3.8W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVD5867NLT4GMOSFET N-CH 60V 6A/22A DPAK-3 |
3,483 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 6A (Ta), 22A (Tc) | 4.5V, 10V | 39mOhm @ 11A, 10V | 2.5V @ 250µA | 15 nC @ 10 V | ±20V | 675 pF @ 25 V | - | 3.3W (Ta), 43W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDMC4436BZMOSFET P-CH |
2,284 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FDD9511L-F085MOSFET P-CH 40V 25A DPAK |
2,225 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 25A (Tc) | 4.5V, 10V | 21mOhm @ 25A, 10V | 3V @ 250µA | 23 nC @ 10 V | ±16V | 1200 pF @ 20 V | - | 48.4W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDD9510L-F085MOSFET P-CH 40V 50A DPAK |
2,277 | 1.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 13.5mOhm @ 50A, 10V | 3V @ 250µA | 37 nC @ 10 V | ±16V | 2020 pF @ 20 V | - | 75W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDBL9403L-F085MOSFET N-CH 40V 53.3A 8HPSOF |
2,701 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 53.3A (Tc) | 4.5V, 10V | 0.72mOhm @ 80A, 10V | 3V @ 250µA | 203 nC @ 10 V | ±20V | 14100 pF @ 20 V | - | 3.5W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVBLS0D5N04M8TXGMOSFET N-CH 40V 300A 8HPSOF |
1,071 | 2.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 0.57mOhm @ 80A, 10V | 4V @ 250µA | 296 nC @ 10 V | ±20V | 15900 pF @ 25 V | - | 429W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVBLS0D7N04M8TXGMOSFET N-CH 40V 240A 8HPSOF |
3,389 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 240A (Tc) | 10V | 0.75mOhm @ 80A, 10V | 4V @ 250µA | 188 nC @ 10 V | ±20V | 12000 pF @ 25 V | - | 357W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
