| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQD3P50TM-F085MOSFET P-CH 500V 2.1A DPAK |
2,838 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, QFET® | Active | P-Channel | MOSFET (Metal Oxide) | 500 V | 2.1A (Tc) | 10V | 4.9Ohm @ 1.05A, 10V | 5V @ 250µA | 23 nC @ 10 V | ±30V | 660 pF @ 25 V | - | 2.5W (Ta), 50W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MCH3383-TL-WMOSFET P-CH 12V 3.5A SC70 |
2,470 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 3.5A (Ta) | 0.9V, 2.5V | 69mOhm @ 1.5A, 2.5V | 800mV @ 1mA | 6.2 nC @ 2.5 V | ±5V | 1010 pF @ 6 V | - | 1W (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH3484-TL-WMOSFET N-CH 20V 4.5A SC70 |
3,838 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 4.5A (Ta) | 0.9V, 2.5V | 40mOhm @ 2A, 2.5V | 800mV @ 1mA | 11 nC @ 2.5 V | ±5V | 630 pF @ 10 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
MCH6336-TL-EMOSFET P-CH 12V 5A SC88FL/MCPH6 |
3,777 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 12 V | 5A (Ta) | 1.8V, 4.5V | 43mOhm @ 3A, 4.5V | 1.4V @ 1mA | 6.9 nC @ 4.5 V | ±10V | 660 pF @ 6 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH6445-TL-WMOSFET N-CH 60V 4A 6MCPH |
3,374 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 4A (Ta) | 4V, 10V | 78mOhm @ 2A, 10V | - | 10 nC @ 10 V | ±20V | 505 pF @ 20 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
|
MCH6448-TL-HMOSFET N-CH 20V 8A 6MCPH |
3,537 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 8A (Ta) | 1.2V, 4.5V | 22mOhm @ 4A, 4.5V | - | 11.2 nC @ 4.5 V | ±9V | 705 pF @ 10 V | - | 1.5W (Ta) | 150°C (TJ) | Surface Mount |
|
NTDV20P06LT4GMOSFET P-CH 60V 15.5A DPAK |
3,563 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 15.5A (Ta) | 10V | 150mOhm @ 7.5A, 5V | 2V @ 250µA | 26 nC @ 5 V | ±20V | 1190 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

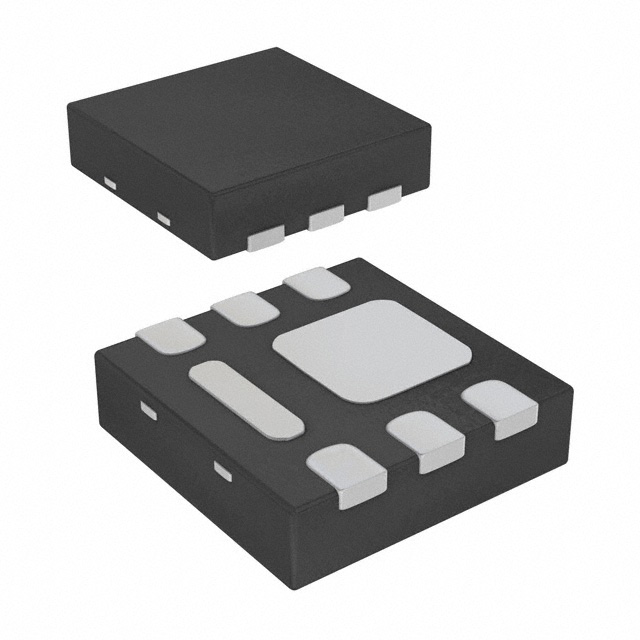

NTLUF4189NZTAGMOSFET N-CH 30V 1.2A 6UDFN |
3,203 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.2A (Ta) | 2.5V, 4.5V | 200mOhm @ 1.5A, 4.5V | 1.5V @ 250µA | 3 nC @ 4.5 V | ±8V | 95 pF @ 15 V | Schottky Diode (Isolated) | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTLUS3A40PZTBGMOSFET P-CH 20V 4A 6UDFN |
3,328 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | µCool™ | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 4.5V | 29mOhm @ 6.4A, 4.5V | 1V @ 250µA | 29 nC @ 4.5 V | ±8V | 2600 pF @ 15 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTLUS4C12NTAGMOSFET N-CH 30V 6.8A 6UDFN |
3,029 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.8A (Ta) | 3.3V, 10V | 9mOhm @ 9A, 10V | 2.1V @ 250µA | 18 nC @ 10 V | ±20V | 1172 pF @ 15 V | - | 630mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS4837NHT1GMOSFET N-CH 30V 10.2A/75A 5DFN |
17,115 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10.2A (Ta), 75A (Tc) | 4.5V, 11.5V | 5mOhm @ 30A, 10V | 2.5V @ 250µA | 23.8 nC @ 4.5 V | ±20V | 3016 pF @ 12 V | - | 880mW (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4931NT1GMOSFET N-CH 30V 23A/246A 5DFN |
3,161 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 23A (Ta), 246A (Tc) | 4.5V, 10V | 1.1mOhm @ 30A, 10V | 2.2V @ 250µA | 128 nC @ 10 V | ±20V | 9821 pF @ 15 V | - | 950mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4935NT3GMOSFET N-CH 30V 13A/93A 5DFN |
135,115 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 93A (Tc) | 4.5V, 10V | 3.2mOhm @ 30A, 10V | 2.2V @ 250µA | 49.4 nC @ 10 V | ±20V | 4850 pF @ 15 V | - | 930mW (Ta), 48W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4C032NT1GMOSFET N-CH 30V 13A/38A 5DFN |
59,192 | 0.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 38A (Tc) | 4.5V, 10V | 7.35mOhm @ 30A, 10V | 2.1V @ 250µA | 15.2 nC @ 10 V | ±20V | 770 pF @ 15 V | - | 2.46W (Ta), 21.6W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4C35NT1GMOSFET N-CH 30V 12.4A 5DFN |
2,719 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 12.4A (Ta) | 4.5V, 10V | 3.2mOhm @ 30A, 10V | 2.2V @ 250µA | 15 nC @ 4.5 V | ±20V | 2300 pF @ 15 V | - | 780mW (Ta), 33W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTTFS4H05NTAGMOSFET N-CH 25V 22.4A/94A 8WDFN |
2,110 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 25 V | 22.4A (Ta), 94A (Tc) | 4.5V, 10V | 3.3mOhm @ 30A, 10V | 2.1V @ 250µA | 18.9 nC @ 10 V | ±20V | 1205 pF @ 12 V | - | 2.66W (Ta), 46.3W (Tc) | 150°C (TJ) | Surface Mount |
|

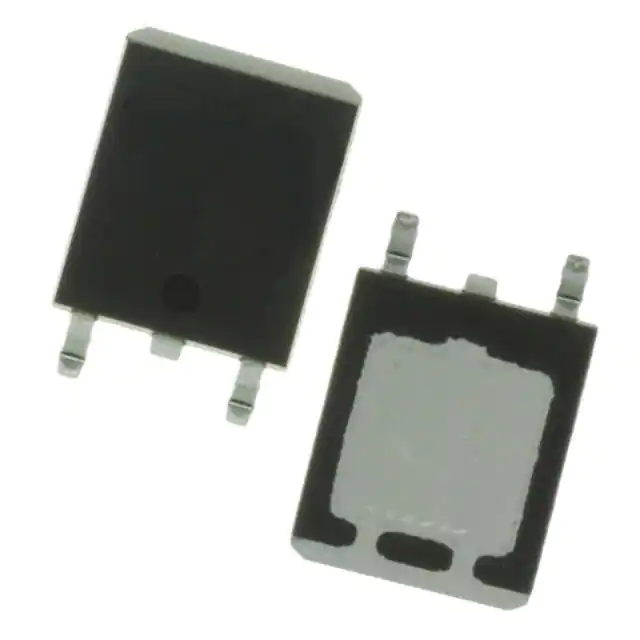

NVATS5A106PLZT4GMOSFET P-CHANNEL 40V 33A ATPAK |
2,393 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 33A (Ta) | 4.5V, 10V | 25mOhm @ 15A, 10V | 2.6V @ 1mA | 29 nC @ 10 V | ±20V | 1380 pF @ 20 V | - | 48W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVF3055-100T1GMOSFET N-CH 60V 3A SOT223 |
3,637 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3A (Ta) | 10V | 110mOhm @ 1.5A, 10V | 4V @ 250µA | 22 nC @ 10 V | ±20V | 455 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVGS3443T1GMOSFET P-CH 20V 3.1A 6TSOP |
3,006 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.1A (Ta) | - | 65mOhm @ 4.4A, 4.5V | 1.5V @ 250µA | 15 nC @ 4.5 V | - | 565 pF @ 5 V | - | - | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NVMFS5826NLWFT1GMOSFET N-CH 60V 8A 5DFN |
2,120 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 8A (Ta) | 4.5V, 10V | 24mOhm @ 10A, 10V | 2.5V @ 250µA | 17 nC @ 10 V | ±20V | 850 pF @ 25 V | - | 3.6W (Ta), 39W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
