| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FQB4N20TMMOSFET N-CH 200V 3.6A D2PAK |
3,053 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 3.6A (Tc) | 10V | 1.4Ohm @ 1.8A, 10V | 5V @ 250µA | 6.5 nC @ 10 V | ±30V | 220 pF @ 25 V | - | 3.13W (Ta), 45W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FDH5500MOSFET N-CH 55V 75A TO247-3 |
3,703 | 0.00 |
RFQ |
Datasheet |
Tube | UltraFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 7mOhm @ 75A, 10V | 4V @ 250µA | 268 nC @ 20 V | ±30V | 3565 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
2N7002_NB9G002MOSFET N-CH 60V 115MA SOT-23 |
3,780 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 115mA (Ta) | 5V, 10V | 7.5Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 50 pF @ 25 V | - | 200mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCA16N60_F109MOSFET N-CH 600V 16A TO3PN |
3,959 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 260mOhm @ 8A, 10V | 5V @ 250µA | 70 nC @ 10 V | ±30V | 2250 pF @ 25 V | - | 167W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FCPF20N60TYDTUMOSFET N-CH 600V 20A TO220F-3 |
2,458 | 0.00 |
RFQ |
Datasheet |
Tube | SuperFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FD70N20PWDMOSFET N-CH 200V 70A TO3P |
2,411 | 0.00 |
RFQ |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 70A (Ta) | - | - | - | - | - | - | - | - | - | Through Hole | |
|
|
FDA62N28MOSFET N-CH 280V 62A TO3PN |
2,682 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 280 V | 62A (Tc) | 10V | 51mOhm @ 31A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 4630 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDA79N15MOSFET N-CH 150V 79A TO3PN |
2,174 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 79A (Tc) | 10V | 30mOhm @ 39.5A, 10V | 5V @ 250µA | 73 nC @ 10 V | ±30V | 3410 pF @ 25 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDA8440MOSFET N-CH 40V 30A/100A TO3PN |
12,857 | 3.98 |
RFQ |
Datasheet |
Bulk,Tube,Tube | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 30A (Ta), 100A (Tc) | 4.5V, 10V | 2.1mOhm @ 80A, 10V | 3V @ 250µA | 450 nC @ 10 V | ±20V | 24740 pF @ 25 V | - | 306W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
FDAF69N25MOSFET N-CH 250V 34A TO3PF |
2,828 | 0.00 |
RFQ |
Datasheet |
Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 250 V | 34A (Tc) | 10V | 41mOhm @ 17A, 10V | 5V @ 250µA | 100 nC @ 10 V | ±30V | 4640 pF @ 25 V | - | 115W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDB3672MOSFET N-CH 100V 7.2A/44A TO263 |
3,616 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 7.2A (Ta), 44A (Tc) | 6V, 10V | 28mOhm @ 44A, 10V | 4V @ 250µA | 31 nC @ 10 V | ±20V | 1710 pF @ 25 V | - | 120W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDB5800_F085MOSFET N-CH 60V 14A/80A D2PAK |
3,596 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 14A (Ta), 80A (Tc) | 4.5V, 10V | 6mOhm @ 80A, 10V | 2.5V @ 250µA | 135 nC @ 10 V | ±20V | 6625 pF @ 15 V | - | 242W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDB6030LMOSFET N-CH 30V 48A TO263AB |
3,132 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Ta) | 4.5V, 10V | 13mOhm @ 26A, 10V | 3V @ 250µA | 18 nC @ 5 V | ±20V | 1250 pF @ 15 V | - | 52W (Tc) | -65°C ~ 175°C (TJ) | Surface Mount |
|

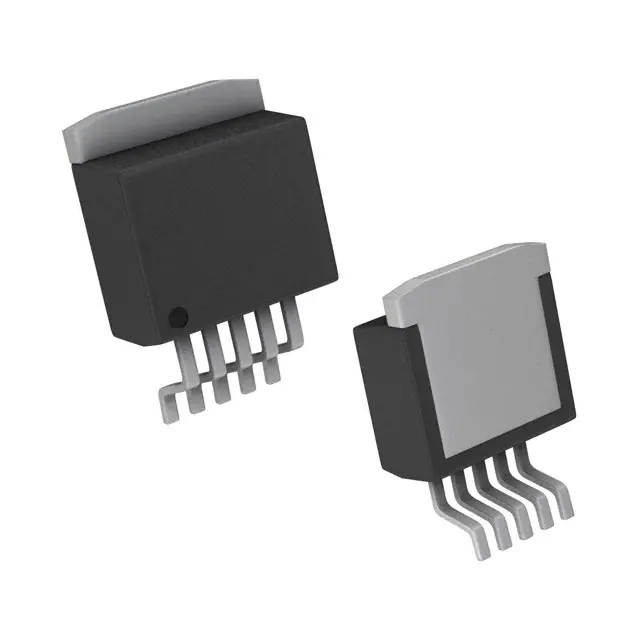

FDB8444TSMOSFET N-CH 40V 20A/70A TO263-5 |
2,872 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 20A (Ta), 70A (Tc) | 10V | 5mOhm @ 70A, 10V | 4V @ 250µA | 338 nC @ 20 V | ±20V | 8410 pF @ 25 V | - | 181W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDB8876MOSFET N-CH 30V 71A TO263AB |
2,964 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 71A (Tc) | 4.5V, 10V | 8.5mOhm @ 40A, 10V | 2.5V @ 250µA | 45 nC @ 10 V | ±20V | 1700 pF @ 15 V | - | 70W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDB8878MOSFET N-CH 30V 48A TO263 |
2,204 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 48A (Tc) | 4.5V, 10V | 14mOhm @ 40A, 10V | 2.5V @ 250µA | 23 nC @ 10 V | ±20V | 1235 pF @ 15 V | - | 47.3W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDC2512_F095MOSFET N-CH 150V 1.4A SUPERSOT6 |
2,129 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 150 V | 1.4A (Ta) | 6V, 10V | 425mOhm @ 1.4A, 10V | 4V @ 250µA | 11 nC @ 10 V | ±20V | 344 pF @ 75 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDC2612_F095MOSFET N-CH 200V 1.1A SUPERSOT6 |
2,032 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 1.1A (Ta) | 10V | 725mOhm @ 1.1A, 10V | 4.5V @ 250µA | 11 nC @ 10 V | ±20V | 234 pF @ 100 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDC3512_F095MOSFET N-CH 80V 3A SUPERSOT6 |
3,773 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 80 V | 3A (Ta) | 6V, 10V | 77mOhm @ 3A, 10V | 4V @ 250µA | 18 nC @ 10 V | ±20V | 634 pF @ 40 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDC3612_F095MOSFET N-CH 100V 2.6A SUPERSOT6 |
2,769 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.6A (Ta) | 6V, 10V | 125mOhm @ 2.6A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±20V | 660 pF @ 50 V | - | 1.6W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
