| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NDFP03N150CGMOSFET N-CH 1500V 2.5A TO220-3 |
3,235 | 3.41 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 2W (Ta), 32W (Tc) | 150°C (TJ) | Through Hole |
|
NTMFS5C404NLT3GMOSFET N-CH 40V 52A/370A 5DFN |
2,346 | 3.44 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 52A (Ta), 370A (Tc) | 4.5V, 10V | 0.75mOhm @ 50A, 10V | 2V @ 250µA | 181 nC @ 10 V | ±20V | 12168 pF @ 25 V | - | 3.2W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTMTSC4D2N10GTXG100V MVSOA IN DFNW8(PQFN8X8) PAC |
2,189 | 3.46 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 21A (Ta), 178A (Tc) | 10V | 4.2mOhm @ 88A, 10V | 4V @ 450µA | 159 nC @ 10 V | ±20V | 10450 pF @ 50 V | - | 3.9W (Ta), 267W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
NTMJS0D7N03CGTWGWIDE SOA |
2,651 | 3.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 59A (Ta), 410A (Tc) | 10V | 650µOhm @ 30A, 10V | 2.2V @ 280µA | 147 nC @ 10 V | ±20V | 12300 pF @ 15 V | - | 4W (Ta), 188W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFSS1D3N06CL60V T6 MAX DIE IN 5X6 SOURCE DOW |
2,821 | 3.54 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 31A (Ta), 243A (Tc) | 4.5V, 10V | 1.3mOhm @ 50A, 10V | 2V @ 250µA | 117 nC @ 10 V | ±20V | 8190 pF @ 30 V | - | 2.5W (Ta), 153W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMTS1D5N08HT8-80V IN PQFN88 FOR INDU |
2,693 | 3.55 |
RFQ |
Datasheet |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
FDMT800152DCMOSFET N-CH 150V 8 DUAL COOL88 |
2,970 | 3.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™, PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 13A (Ta), 72A (Tc) | 6V, 10V | 9mOhm @ 13A, 10V | 4V @ 250µA | 83 nC @ 10 V | ±20V | 5875 pF @ 75 V | - | 3.2W (Ta), 113W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NDCTR05120AMOSFET N-CH 1200V 5A SMD |
2,951 | 3.58 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
NTMYS2D2N06CLTWGMOSFET N-CH 60V 31A/185A LFPAK4 |
3,842 | 3.58 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 31A (Ta), 185A (Tc) | 4.5V, 10V | 1.9mOhm @ 50A, 10V | 2V @ 180µA | 69 nC @ 10 V | ±20V | 4850 pF @ 25 V | - | 3.9W (Ta), 134W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FCMT080N65S3MOSFET N-CH 650V 38A 4TDFN |
3,437 | 3.66 |
RFQ |
Tape & Reel (TR) | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 80mOhm @ 19A, 10V | 4.5V @ 880µA | 71 nC @ 10 V | ±30V | 2765 pF @ 400 V | - | 260W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
NTMJS2D5N06CLTWGMOSFET N-CH 60V 3.9A/113A 8LFPAK |
3,584 | 3.66 |
RFQ |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 3.9A (Ta), 113A (Tc) | 4.5V, 10V | 2.4mOhm @ 50A, 10V | 2V @ 135µA | 52 nC @ 10 V | ±20V | 3600 pF @ 25 V | - | 3.9W (Ta), 113A (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|

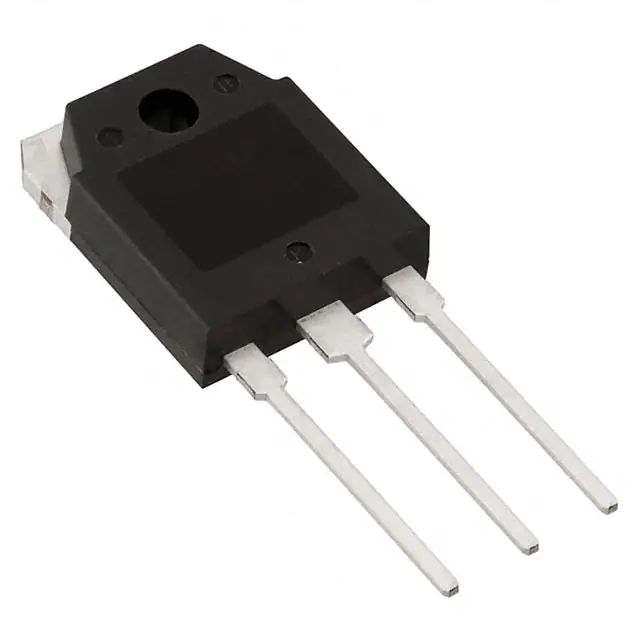

NDTL03N150CGMOSFET N-CH 1500V 2.5A TO3P |
3,609 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1.25A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 2.5W (Ta), 140W (Tc) | 150°C (TJ) | Through Hole |
|
NDUL03N150CGMOSFET N-CH 1500V 2.5A TO3P |
2,243 | 3.71 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2.5A (Ta) | 10V | 10.5Ohm @ 1.25A, 10V | - | 34 nC @ 10 V | ±30V | 650 pF @ 30 V | - | 3W (Ta), 50W (Tc) | 150°C (TJ) | Through Hole |
|
FQA30N40MOSFET N-CH 400V 30A TO3PN |
2,267 | 3.73 |
RFQ |
Datasheet |
Bulk,Tube | QFET® | Obsolete | N-Channel | MOSFET (Metal Oxide) | 400 V | 30A (Tc) | 10V | 140mOhm @ 15A, 10V | 5V @ 250µA | 120 nC @ 10 V | ±30V | 4400 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
FDMT1D3N08BMOSFET N-CH 80V 164A 8DL COOL88 |
3,361 | 3.76 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 164A (Tc) | 8V, 10V | 1.35mOhm @ 36A, 10V | 4V @ 250µA | 260 nC @ 10 V | ±20V | 19600 pF @ 40 V | - | 178W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMFS4H02NT3GMOSFET N-CH 25V 37A/193A 5DFN |
2,253 | 3.85 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 25 V | 37A (Ta), 193A (Tc) | 4.5V, 10V | 1.4mOhm @ 30A, 10V | 2.1V @ 250µA | 38.5 nC @ 10 V | ±20V | 2651 pF @ 12 V | - | 3.13W (Ta), 83W (Tc) | 150°C (TJ) | Surface Mount |
|
FDB0690N1507LMOSFET N-CH 150V 3.8A TO263-7 |
800 | 2.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 3.8A (Tc) | 10V | 6.9mOhm @ 17A, 10V | 4V @ 250µA | 115 nC @ 10 V | ±20V | 8775 pF @ 75 V | - | 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS5C604NLT1G-UIL3MOSFET N-CH 60V 40A/287A 5DFN |
2,224 | 3.89 |
RFQ |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Ta), 287A (Tc) | 4.5V, 10V | 1.2mOhm @ 50A, 10V | 2V @ 250µA | 120 nC @ 10 V | ±20V | 8900 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
NTMFS5C604NLT3GMOSFET N-CH 60V 40A/287A 5DFN |
3,789 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Ta), 287A (Tc) | 4.5V, 10V | 1.2mOhm @ 50A, 10V | 2V @ 250µA | 120 nC @ 10 V | ±20V | 8900 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS4H02NFT3GMOSFET N-CH 25V 37A/193A 5DFN |
2,586 | 3.99 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 25 V | 37A (Ta), 193A (Tc) | 4.5V, 10V | 1.4mOhm @ 30A, 10V | 2.1V @ 250µA | 40.9 nC @ 10 V | ±20V | 2652 pF @ 12 V | - | 3.13W (Ta), 83W (Tc) | 150°C (TJ) | Surface Mount |
