| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NTMJS1D2N04CLTWGMOSFET N-CH 40V 41A/237A 8LFPAK |
3,531 | 2.48 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 41A (Ta), 237A (Tc) | 4.5V, 10V | 1.2mOhm @ 50A, 10V | 2V @ 170µA | 93 nC @ 10 V | ±20V | 5600 pF @ 25 V | - | 3.8W (Ta), 128W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMJS0D9N04CLTWGMOSFET N-CH 40V 50A/330A 8LFPAK |
2,447 | 2.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 330A (Tc) | 4.5V, 10V | 0.82mOhm @ 50A, 10V | 2V @ 190µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMJS1D0N04CTWGMOSFET N-CH 40V 46A/300A 8LFPAK |
3,674 | 2.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta), 300A (Tc) | 10V | 0.92mOhm @ 50A, 10V | 3.5V @ 190µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 3.9W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVMFS6H818NLWFT1GMOSFET N-CH 80V 22A/135A 5DFN |
3,483 | 2.50 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 22A (Ta), 135A (Tc) | 4.5V, 10V | 3.2mOhm @ 20A, 10V | 2V @ 190µA | 64 nC @ 10 V | ±20V | 3844 pF @ 40 V | - | 3.8W (Ta), 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS4C01NWFT1GMOSFET N-CH 30V 49A/319A 5DFN |
3,077 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 49A (Ta), 319A (Tc) | 4.5V, 10V | 0.9mOhm @ 30A, 10V | 2.2V @ 250µA | 139 nC @ 10 V | ±20V | 10144 pF @ 15 V | - | 3.84W (Ta), 161W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMJS1D6N06CLTWGMOSFET N-CH 60V 38A/250A 8LFPAK |
3,161 | 2.51 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 38A (Ta), 250A (Tc) | 4.5V, 10V | 1.36mOhm @ 50A, 10V | 2V @ 250µA | 91 nC @ 10 V | ±20V | 6660 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS5C404NLTWFT1GMOSFET N-CH 40V 5DFN |
3,550 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 370A (Tc) | 4.5V, 10V | 0.75mOhm @ 50A, 10V | 2V @ 250µA | 181 nC @ 10 V | ±20V | 12168 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS5C612NLT3GMOSFET N-CH 60V 36A/235A 5DFN |
3,988 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 36A (Ta), 235A (Tc) | 4.5V, 10V | 1.5mOhm @ 50A, 10V | 2V @ 250µA | 91 nC @ 10 V | ±20V | 6660 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDA20N50-F109MOSFET N-CH 500V 22A TO3PN |
16,600 | 1.96 |
RFQ |
Datasheet |
Bulk,Tube | UniFET™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 230mOhm @ 11A, 10V | 5V @ 250µA | 59.5 nC @ 10 V | ±30V | 3120 pF @ 25 V | - | 280W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDB8443MOSFET N-CH 40V 25A/120A TO263AB |
3,801 | 3.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 40 V | 25A (Ta), 120A (Tc) | 10V | 3mOhm @ 80A, 10V | 4V @ 250µA | 185 nC @ 10 V | ±20V | 9310 pF @ 25 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTHL185N60S5HSUPERFET5 FAST 185MOHM TO-247-3 |
2,395 | 2.56 |
RFQ |
Datasheet |
Tray | SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 185mOhm @ 7.5A, 10V | 4.3V @ 1.4mA | 25 nC @ 10 V | ±30V | 1350 pF @ 400 V | - | 116W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

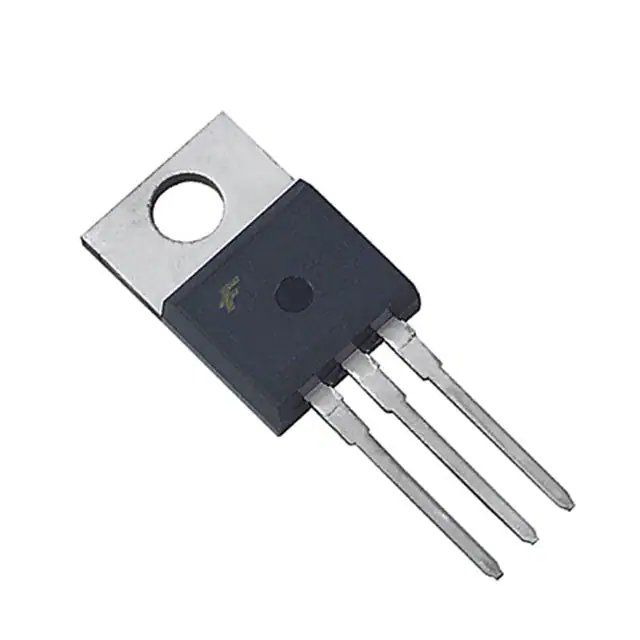

FDP047AN08A0-F102MOSFET N-CH 75V 80A TO220-3 |
2,858 | 2.58 |
RFQ |
Tube | - | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 75 V | 15A (Tc) | 6V, 10V | - | - | - | ±20V | - | - | 310W (Tc) | -55°C ~ 175°C (TJ) | Through Hole | |
|
|
NTMJS1D3N04CTWGMOSFET N-CH 40V 41A/235A 8LFPAK |
3,275 | 2.60 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 41A (Ta), 235A (Tc) | 10V | 1.3mOhm @ 50A, 10V | 3.5V @ 170µA | 65 nC @ 10 V | ±20V | 4300 pF @ 25 V | - | 3.8W (Ta), 128W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FCH190N65F-F155MOSFET N-CH 650V 20.6A TO247 |
3,142 | 2.63 |
RFQ |
Datasheet |
Tube | FRFET®, SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20.6A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 2mA | 78 nC @ 10 V | ±20V | 3225 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDMS8350LET40MOSFET N-CH 40V 49A/300A POWER56 |
3,747 | 2.63 |
RFQ |
Datasheet |
Tape & Reel (TR) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 49A (Ta), 300A (Tc) | 4.5V, 10V | 0.85mOhm @ 47A, 10V | 3V @ 250µA | 219 nC @ 10 V | ±20V | 16590 pF @ 20 V | - | 3.33W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFWS0D4N04XMT1G40V T10M IN S08FL GEN 2 PACKAGE |
2,600 | 2.64 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 519A (Tc) | 10V | 0.42mOhm @ 50A, 10V | 3.5V @ 330µA | 138 nC @ 10 V | ±20V | 8550 pF @ 25 V | - | 197W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BBS3002-TL-1EMOSFET P-CH 60V 100A D2PAK |
3,659 | 4.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 60 V | 100A (Ta) | 4V, 10V | 5.8mOhm @ 50A, 10V | - | 280 nC @ 10 V | ±20V | 13200 pF @ 20 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FCA20N60MOSFET N-CH 600V 20A TO3PN |
2,640 | 2.64 |
RFQ |
Datasheet |
Tube,Tube | SuperFET™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 3080 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVMFS5C406NT1GMOSFET N-CH 40V 52A/353A 5DFN |
3,355 | 2.65 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 52A (Ta), 353A (Tc) | 10V | 0.8mOhm @ 50A, 10V | 4V @ 280µA | 110 nC @ 10 V | ±20V | 7288 pF @ 20 V | - | 3.9W (Ta), 179W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMTS6D0N15MCPTNG 150V IN CEBU DFNW 8X8 FOR A |
3,418 | 2.67 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 18A (Ta), 128A (Tc) | 10V | 6.4mOhm @ 69A, 10V | 4.5V @ 379µA | 58 nC @ 10 V | ±20V | 4815 pF @ 75 V | - | 5W (Ta), 237W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
