| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCPF260N60EMOSFET N CH 600V 15A TO-220F |
2,140 | 2.79 |
RFQ |
Datasheet |
Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NTBGS2D5N06CPOWER MOSFET, 60 V, 2.5 M?, 224 |
3,040 | 6.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 27A (Ta), 169A (Tc) | 10V, 12V | 2.5mOhm @ 35A, 12V | 4V @ 175µA | 45.4 nC @ 10 V | ±20V | 3510 pF @ 30 V | - | 3.7W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FCP850N80ZMOSFET N-CH 800V 8A TO220-3 |
2,780 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 850mOhm @ 3A, 10V | 4.5V @ 600µA | 29 nC @ 10 V | ±20V | 1315 pF @ 100 V | - | 136W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FDBL9401-F085T6MOSFET N-CH 40V 58.4/240A 8HPSOF |
2,699 | 7.74 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 58.4A (Ta), 240A (Tc) | - | 0.67mOhm @ 50A, 10V | 4V @ 290µA | 148 nC @ 10 V | +20V, -16V | 10000 pF @ 25 V | - | 4.3W (Ta), 180.7W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FCPF850N80ZMOSFET N-CH 800V 6A TO220F |
3,203 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 850mOhm @ 3A, 10V | 4.5V @ 600µA | 29 nC @ 10 V | ±20V | 1315 pF @ 100 V | - | 28.4W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTMFS0D55N03CGT1GWIDE SOA |
2,836 | 5.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 35A (Ta) | 10V | 580µOhm @ 30A, 10V | 2.2V @ 330µA | 224.9 nC @ 10 V | ±20V | 18500 pF @ 15 V | - | 1.1W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVMTS1D5N08HMOSFET N-CH 80V 38A/273A 8DFNW |
2,569 | 5.87 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 38A (Ta), 273A (Tc) | 10V | 1.4mOhm @ 90A, 10V | 4V @ 490µA | 125 nC @ 10 V | ±20V | 8220 pF @ 40 V | - | 5W (Ta), 258W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
FCP165N60EMOSFET N-CH 600V 23A TO220 |
719 | 3.02 |
RFQ |
Datasheet |
Tube,Tube | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
FDB0170N607LMOSFET N-CH 60V 300A TO263-7 |
2,481 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 300A (Tc) | 10V | 1.4mOhm @ 39A, 10V | 4V @ 250µA | 243 nC @ 10 V | ±20V | 19250 pF @ 30 V | - | 3.8W (Ta), 250W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

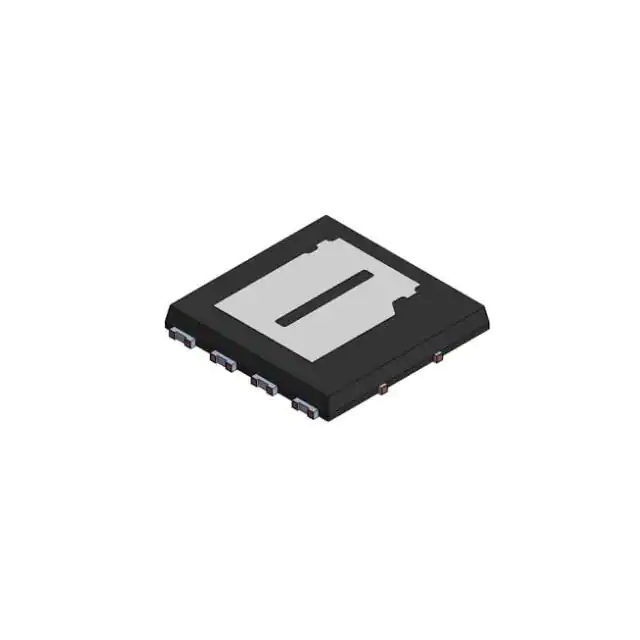

NVMTSC1D3N08M7TXGMOSFET N-CH 80V 46A/348A 8DFNW |
3,754 | 6.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 46A (Ta), 348A (Tc) | 10V | 1.25mOhm @ 80A, 10V | 4V @ 250µA | 196 nC @ 10 V | ±20V | 14530 pF @ 40 V | - | 5.1W (Ta), 287W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS5H414NLT1GMOSFET N-CH 40V 35A/210A 5DFN |
2,291 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 35A (Ta), 210A (Tc) | 4.5V, 10V | 1.4mOhm @ 20A, 10V | 2V @ 250µA | 75 nC @ 10 V | ±20V | 4550 pF @ 20 V | - | 3.1W (Ta), 110W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMJS0D8N04CLTWGMOSFET N-CH 40V 56A/368A 8LFPAK |
3,440 | 6.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 56A (Ta), 368A (Tc) | 4.5V, 10V | 0.72mOhm @ 50A, 10V | 2V @ 250µA | 162 nC @ 10 V | ±20V | 9600 pF @ 25 V | - | 4.2W (Ta), 180W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FCP190N60-GF102MOSFET N-CH 600V 20.2A TO220-3 |
2,071 | 3.18 |
RFQ |
Datasheet |
Tube | SuperFET® II | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 600 V | 20.2A (Tc) | 10V | 199mOhm @ 10A, 10V | 3.5V @ 250µA | 74 nC @ 10 V | ±20V | 2950 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NTMFS5C612NLT1GMOSFET N-CH 60V 36A/235A 5DFN |
2,400 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 36A (Ta), 235A (Tc) | 4.5V, 10V | 1.5mOhm @ 50A, 10V | 2V @ 250µA | 91 nC @ 10 V | ±20V | 6660 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NVMTSC4D3N15MCPTNG 150V IN CEBU DFNW 8X8 DUAL |
2,030 | 6.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | DUAL COOL® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 23A (Ta), 165A (Tc) | 10V | 4.45mOhm @ 95A, 10V | 4.5V @ 521µA | 79 nC @ 10 V | ±20V | 6514 pF @ 75 V | - | 5W (Ta), 292W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
NTPF190N65S3HFMOSFET N-CH 650V 20A TO220FP |
2,951 | 3.22 |
RFQ |
Datasheet |
Tube | FRFET®, SuperFET® III | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 430µA | 34 nC @ 10 V | ±30V | 1610 pF @ 400 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVMFS5C604NLWFT1GMOSFET N-CH 60V 40A/287A 5DFN |
2,666 | 6.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 40A (Ta), 287A (Tc) | 4.5V, 10V | 1.2mOhm @ 50A, 10V | 2V @ 250µA | 120 nC @ 10 V | ±20V | 8900 pF @ 25 V | - | 3.9W (Ta), 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS5C410NT3GMOSFET N-CH 40V 46A/300A 5DFN |
2,476 | 7.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta), 300A (Tc) | 10V | 0.92mOhm @ 50A, 10V | 3.5V @ 250µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 3.9W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTBL050N65S3HMOSFET - POWER,NCHANNEL, SUPERFE |
2,384 | 8.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 49A (Tc) | 10V | 50mOhm @ 24.5A, 10V | 4V @ 4.8mA | 98 nC @ 10 V | ±30V | 4880 pF @ 400 V | - | 305W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FDPF17N60NTMOSFET N-CH 600V 17A TO220F |
3,390 | 3.41 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 340mOhm @ 8.5A, 10V | 5V @ 250µA | 65 nC @ 10 V | ±30V | 3040 pF @ 25 V | - | 62.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
