| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FCPF650N80ZMOSFET N-CH 800V 8A TO220F |
2,845 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 650mOhm @ 4A, 10V | 4.5V @ 800µA | 35 nC @ 10 V | ±20V | 1565 pF @ 100 V | - | 30.5W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NVMTS1D2N08HMOSFET N-CH 80V 43.5A/337A 8DFNW |
3,364 | 6.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 43.5A (Ta), 337A (Tc) | 10V | 1.1mOhm @ 90A, 10V | 4V @ 590µA | 147 nC @ 10 V | ±20V | 10100 pF @ 40 V | - | 5W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDBL0260N100MOSFET N-CH 100V 200A 8HPSOF |
3,931 | 6.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | PowerTrench® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Tc) | 10V | 2.6mOhm @ 80A, 10V | 4V @ 250µA | 116 nC @ 10 V | ±20V | 9265 pF @ 50 V | - | 3.5W (Ta), 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
NTMFS5C410NLT1GMOSFET N-CH 40V 46A/302A 5DFN |
3,946 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta), 302A (Tc) | 4.5V, 10V | 0.9mOhm @ 50A, 10V | 2V @ 250µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.2W (Ta), 139W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
NTMYS014N06CLTWGMOSFET N-CH 60V 12A/36A 4LFPAK |
2,489 | 4.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 12A (Ta), 36A (Tc) | 4.5V, 10V | 15mOhm @ 10A, 10V | 2V @ 25µA | 9.7 nC @ 10 V | ±20V | 620 pF @ 25 V | - | 3.8W (Ta), 37W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
FDP20N50FMOSFET N-CH 500V 20A TO220-3 |
2,607 | 3.26 |
RFQ |
Datasheet |
Tube | UniFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 260mOhm @ 10A, 10V | 5V @ 250µA | 65 nC @ 10 V | ±30V | 3390 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
NTBL082N65S3HFNTBL082N65S3HF |
2,011 | 6.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SuperFET® III, FRFET® | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 40A (Tc) | 10V | 82mOhm @ 20A, 10V | 5V @ 1mA | 79 nC @ 10 V | ±30V | 3330 pF @ 400 V | - | 313W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
NTMTS6D0N15MCSINGLE N-CHANNEL POWER MOSFET 15 |
2,135 | 6.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 19A (Ta), 135A (Tc) | 8V, 10V | 6.4mOhm @ 69A, 10V | 4.5V @ 379µA | 58 nC @ 10 V | ±20V | 4815 pF @ 75 V | - | 4.9W (Ta), 245W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMFS4C020NT1GMOSFET N-CH 30V 47A/303A 5DFN |
3,645 | 4.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 47A (Ta), 303A (Tc) | 4.5V, 10V | 0.7mOhm @ 30A, 10V | 2.2V @ 250µA | 139 nC @ 10 V | ±20V | 10144 pF @ 15 V | - | 3.2W (Ta), 134W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
FQA24N50-ON24A, 500V, 0.2OHM, N-CHANNEL, M |
3,626 | 0.00 |
RFQ |
Datasheet |
Bulk | QFET® | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 24A (Tc) | 10V | 200mOhm @ 12A, 10V | 5V @ 250µA | 120 nC @ 10 V | ±30V | 4500 pF @ 25 V | - | 290W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
FQB34N20TM-AM002MOSFET N-CH 200V 31A D2PAK |
3,154 | 2.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | QFET® | Last Time Buy | N-Channel | MOSFET (Metal Oxide) | 200 V | 31A (Tc) | 10V | 75mOhm @ 15.5A, 10V | 5V @ 250µA | 78 nC @ 10 V | ±30V | 3100 pF @ 25 V | - | 3.13W (Ta), 180W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
FCP190N65FMOSFET N-CH 650V 20.6A TO220-3 |
2,889 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | FRFET®, SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20.6A (Tc) | 10V | 190mOhm @ 10A, 10V | 5V @ 2mA | 78 nC @ 10 V | ±20V | 3225 pF @ 25 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVMFS5C612NLT1GMOSFET N-CH 60V 36A/235A 5DFN |
2,262 | 4.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 36A (Ta), 235A (Tc) | 4.5V, 10V | 1.5mOhm @ 50A, 10V | 2V @ 250µA | 91 nC @ 10 V | ±20V | 6660 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NTMTSC4D3N15MCSINGLE N-CHANNEL POWER MOSFET 15 |
3,823 | 6.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Dual Cool™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 22A (Ta), 174A (Tc) | 8V, 10V | 4.45mOhm @ 95A, 10V | 4.5V @ 521µA | 79 nC @ 10 V | ±20V | 6514 pF @ 75 V | - | 5W (Ta), 293W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount, Wettable Flank |
|
|
FDB9503L-F085MOSFET P-CH 40V 110A D2PAK |
2,869 | 3.47 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, PowerTrench® | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 110A (Tc) | 4.5V, 10V | 2.6mOhm @ 80A, 10V | 3V @ 250µA | 255 nC @ 10 V | ±16V | 8320 pF @ 20 V | - | 333W (Tj) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FDBL86062-F085MOSFET N-CH 100V 300A 8HPSOF |
11,160 | 7.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 300A (Tc) | 10V | 2mOhm @ 80A, 10V | 4.5V @ 250µA | 124 nC @ 10 V | ±20V | 6970 pF @ 50 V | - | 429W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
NVMFS5C410NLWFAFT1GMOSFET N-CH 40V 50A/330A 5DFN |
3,096 | 4.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta), 330A (Tc) | 4.5V, 10V | 0.82mOhm @ 50A, 10V | 2V @ 250µA | 143 nC @ 10 V | ±20V | 8862 pF @ 25 V | - | 3.8W (Ta), 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
FCPF380N60EMOSFET N-CH 600V 10.2A TO220F |
1,761 | 2.44 |
RFQ |
Datasheet |
Bulk,Tube | SuperFET® II | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.2A (Tc) | 10V | 380mOhm @ 5A, 10V | 3.5V @ 250µA | 45 nC @ 10 V | ±20V | 1770 pF @ 25 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

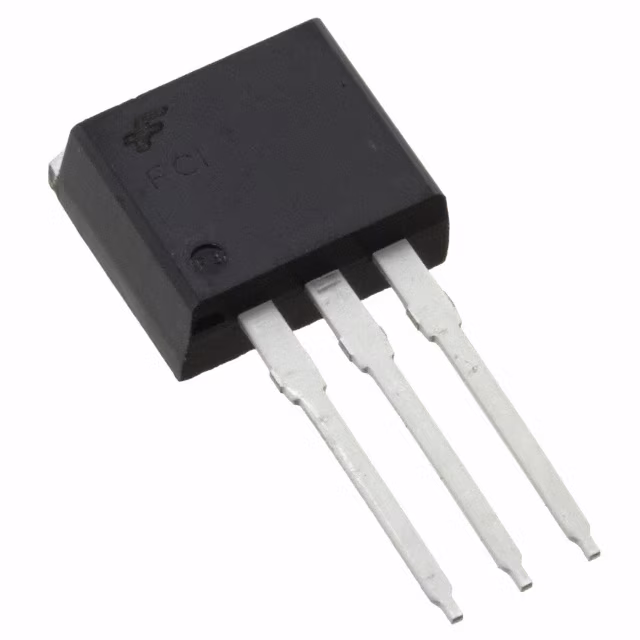

FCI7N60MOSFET N-CH 600V 7A I2PAK |
2,622 | 2.46 |
RFQ |
Datasheet |
Tube | SuperFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 7A (Tc) | 10V | 600mOhm @ 3.5A, 10V | 5V @ 250µA | 30 nC @ 10 V | ±30V | 920 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
NVMFS5C410NAFT1GMOSFET N-CH 40V 46A/300A 5DFN |
2,524 | 4.67 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 46A (Ta), 300A (Tc) | 10V | 0.92mOhm @ 50A, 10V | 3.5V @ 250µA | 86 nC @ 10 V | ±20V | 6100 pF @ 25 V | - | 3.9W (Ta), 166W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
