| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TPCA8065-H,LQ(SMOSFET N-CH 30V 16A 8SOP |
2,118 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVII-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta) | 4.5V, 10V | 11.4mOhm @ 8A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1600 pF @ 10 V | - | 1.6W (Ta), 25W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCA8120,LQ(CMMOSFET P-CH 30V 45A 8SOP |
3,299 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVI | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 45A (Ta) | 4.5V, 10V | 3mOhm @ 22.5A, 10V | 2V @ 1mA | 190 nC @ 10 V | +20V, -25V | 7420 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCA8128,LQ(CMMOSFET P-CH 30V 34A 8SOP |
2,142 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVI | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 34A (Ta) | 4.5V, 10V | 4.8mOhm @ 17A, 10V | 2V @ 500µA | 115 nC @ 10 V | +20V, -25V | 4800 pF @ 10 V | - | 1.6W (Ta), 45W (Tc) | 150°C (TJ) | Surface Mount |
|
TPCC8009,LQ(OMOSFET N-CH 30V 24A 8TSON |
2,812 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 24A (Ta) | - | 7mOhm @ 12A, 10V | 3V @ 200µA | 26 nC @ 10 V | - | 1270 pF @ 10 V | - | - | 150°C (TJ) | Surface Mount |
|
|
TPCC8065-H,LQ(SMOSFET N-CH 30V 13A 8TSON |
3,636 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVII-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 11.4mOhm @ 6.5A, 10V | 2.3V @ 200µA | 20 nC @ 10 V | ±20V | 1350 pF @ 10 V | - | 700mW (Ta), 18W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8066-H,LQ(SMOSFET N-CH 30V 11A 8TSON |
3,743 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVII-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 15mOhm @ 5.5A, 10V | 2.3V @ 100µA | 15 nC @ 10 V | ±20V | 1100 pF @ 10 V | - | 700mW (Ta), 17W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8067-H,LQ(SMOSFET N-CH 30V 9A 8TSON |
3,808 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVII-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 25mOhm @ 4.5A, 10V | 2.3V @ 100µA | 9.5 nC @ 10 V | ±20V | 690 pF @ 10 V | - | 700mW (Ta), 15W (Tc) | 150°C (TJ) | Surface Mount |
|
SSM3K17SU,LFMOSFET N-CH 50V 100MA USM |
2,549 | 0.00 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 50 V | 100mA (Ta) | - | 20Ohm @ 10mA, 4V | 1.5V @ 1µA | - | - | 7 pF @ 3 V | - | 150mW (Ta) | - | Surface Mount | |
|
SSM3K7002BS,LFMOSFET N-CH 60V 200MA S-MINI |
3,331 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 200mA (Ta) | 4.5V, 10V | 2.1Ohm @ 500mA, 10V | 2.5V @ 250µA | - | ±20V | 17 pF @ 25 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
TPN2R503NC,L1QMOSFET N CH 30V 40A 8TSON-ADV |
3,361 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVIII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4.5V, 10V | 2.5mOhm @ 20A, 10V | 2.3V @ 500µA | 40 nC @ 10 V | ±20V | 2230 pF @ 15 V | - | 700mW (Ta), 35W (Tc) | 150°C (TJ) | Surface Mount |
|
TK16J60W,S1VQMOSFET N-CH 600V 15.8A TO3P |
2,205 | 0.00 |
RFQ |
Datasheet |
Tube | DTMOSIV | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15.8A (Ta) | 10V | 190mOhm @ 7.9A, 10V | 3.7V @ 790µA | 38 nC @ 10 V | ±30V | 1350 pF @ 300 V | Super Junction | 130W (Tc) | 150°C (TJ) | Through Hole |
|
TK8A10K3,S5QMOSFET N-CH 100V 8A TO220SIS |
2,817 | 0.00 |
RFQ |
Datasheet |
Tube | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 8A (Ta) | 10V | 120mOhm @ 4A, 10V | 4V @ 1mA | 12.9 nC @ 10 V | ±20V | 530 pF @ 10 V | - | 18W (Tc) | 150°C (TJ) | Through Hole |
|
2SK1829TE85LFMOSFET N-CH 20V 50MA SC70 |
3,584 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 50mA (Ta) | 2.5V | 40Ohm @ 10mA, 2.5V | - | - | 10V | 5.5 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
2SK2034TE85LFMOSFET N-CH 20V 100MA SC70 |
3,469 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 2.5V | 12Ohm @ 10mA, 2.5V | - | - | 10V | 8.5 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
HN4K03JUTE85LFMOSFET N-CH 20V 100MA USV |
2,595 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 2.5V | 12Ohm @ 10mA, 2.5V | - | - | 10V | 8.5 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J14TTE85LFMOSFET P-CH 30V 2.7A TSM |
2,569 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSII | Obsolete | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.7A (Ta) | 4V, 10V | 85mOhm @ 1.35A, 10V | - | - | ±20V | 413 pF @ 15 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
|

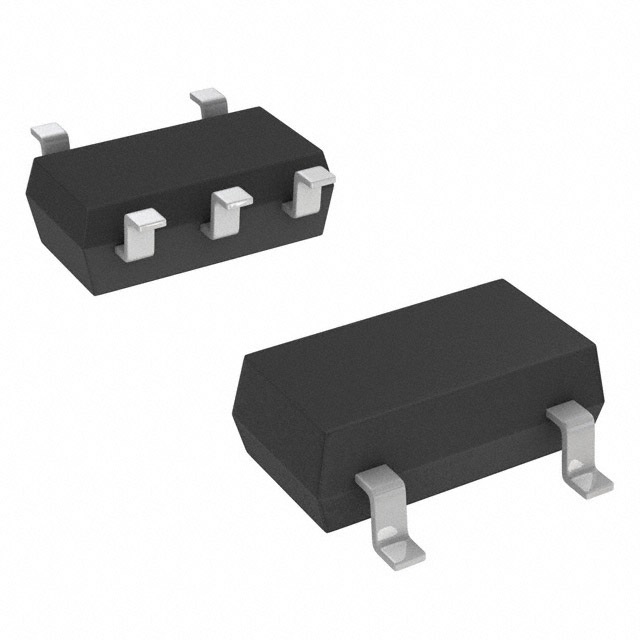

SSM5N16FUTE85LFMOSFET N-CH 20V 100MA USV |
3,059 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 3Ohm @ 10mA, 4V | - | - | ±10V | 9.3 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
2SK2035(T5L,F,T)MOSFET N-CH 20V 100MA SSM |
3,586 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 2.5V | 12Ohm @ 10mA, 2.5V | - | - | 10V | 8.5 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3J15CT(TPL3)MOSFET P-CH 30V 100MA CST3 |
2,756 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 12Ohm @ 10mA, 4V | - | - | ±20V | 9.1 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J16CT(TPL3)MOSFET P-CH 20V 100MA CST3 |
3,022 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 100mA (Ta) | 1.5V, 4V | 8Ohm @ 10mA, 4V | 1.1V @ 100µA | - | ±10V | 11 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
