| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK4A60D(STA4,Q,M)MOSFET N-CH 600V 4A TO220SIS |
2,167 | 0.00 |
RFQ |
Datasheet |
Tube | π-MOSVII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 4A (Ta) | 10V | 1.7Ohm @ 2A, 10V | 4.4V @ 1mA | 12 nC @ 10 V | ±30V | 600 pF @ 25 V | - | 35W (Tc) | 150°C (TJ) | Through Hole |
|
SSM3K106TU(TE85L)MOSFET N-CH 20V 1.2A UFM |
3,532 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 1.2A (Ta) | 4V, 10V | 310mOhm @ 600mA, 10V | 2.3V @ 100µA | - | ±20V | 36 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K15CT(TPL3)MOSFET N-CH 30V 100MA CST3 |
3,161 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 4Ohm @ 10mA, 4V | 1.5V @ 100µA | - | ±20V | 7.8 pF @ 3 V | - | 100mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K15FS,LFMOSFET N-CH 30V 100MA SSM |
3,207 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 100mA (Ta) | 2.5V, 4V | 4Ohm @ 10mA, 4V | 1.5V @ 100µA | - | ±20V | 7.8 pF @ 3 V | - | 200mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K303T(TE85L,F)MOSFET N-CH 30V 2.9A TSM |
2,554 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVII | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 2.9A (Ta) | 4V, 10V | 83mOhm @ 1.5A, 10V | 2.6V @ 1mA | 3.3 nC @ 4 V | ±20V | 180 pF @ 10 V | - | 700mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM3K35MFV(TPL3)MOSFET N-CH 20V 180MA VESM |
3,149 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | π-MOSVI | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 180mA (Ta) | 1.2V, 4V | 3Ohm @ 50mA, 4V | 1V @ 1mA | - | ±10V | 9.5 pF @ 3 V | - | 150mW (Ta) | 150°C (TJ) | Surface Mount |
|
SSM6J206FE(TE85L,FMOSFET P-CH 20V 2A ES6 |
2,084 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.8V, 4V | 130mOhm @ 1A, 4V | 1V @ 1mA | - | ±8V | 335 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
TK50P03M1(T6RSS-Q)MOSFET N-CH 30V 50A DP |
2,973 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Ta) | 4.5V, 10V | 7.5mOhm @ 25A, 10V | 2.3V @ 200µA | 25.3 nC @ 10 V | ±20V | 1700 pF @ 10 V | - | 47W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TK50P04M1(T6RSS-Q)MOSFET N-CH 40V 50A DP |
2,613 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Ta) | 4.5V, 10V | 8.7mOhm @ 25A, 10V | 2.3V @ 500µA | 38 nC @ 10 V | ±20V | 2600 pF @ 10 V | - | 60W (Tc) | 150°C (TJ) | Surface Mount |
|
TPCC8001-H(TE12LQMMOSFET N-CH 30V 22A 8TSON |
2,146 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta) | 4.5V, 10V | 8.3mOhm @ 11A, 10V | 2.5V @ 1mA | 27 nC @ 10 V | ±20V | 2500 pF @ 10 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8002-H(TE12LQMMOSFET N-CH 30V 22A 8TSON |
2,892 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta) | 4.5V, 10V | 8.3mOhm @ 11A, 10V | 2.5V @ 1mA | 27 nC @ 10 V | ±20V | 2500 pF @ 10 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8003-H(TE12LQMMOSFET N-CH 30V 13A 8TSON |
2,023 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta) | 4.5V, 10V | 16.9mOhm @ 6.5A, 10V | 2.3V @ 200µA | 17 nC @ 10 V | ±20V | 1300 pF @ 10 V | - | 700mW (Ta), 22W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8005-H(TE12LQMMOSFET N-CH 30V 26A 8TSON |
3,436 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 26A (Ta) | 4.5V, 10V | 6.4mOhm @ 13A, 10V | 2.3V @ 500µA | 35 nC @ 10 V | ±20V | 2900 pF @ 10 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8006-H(TE12LQMMOSFET N-CH 30V 22A 8TSON |
3,113 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 22A (Ta) | 4.5V, 10V | 8mOhm @ 11A, 10V | 2.3V @ 200µA | 27 nC @ 10 V | ±20V | 2200 pF @ 10 V | - | 700mW (Ta), 27W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8008(TE12L,QM)MOSFET N-CH 30V 25A 8TSON |
3,257 | 0.00 |
RFQ |
Datasheet |
Cut Tape (CT) | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Ta) | 4.5V, 10V | 6.8mOhm @ 12.5A, 10V | 2.5V @ 1A | 30 nC @ 10 V | ±25V | 1600 pF @ 10 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | Surface Mount |
|
|
TPCC8A01-H(TE12LQMMOSFET N-CH 30V 21A 8TSON |
2,946 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSV-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 21A (Ta) | 4.5V, 10V | 9.9mOhm @ 10.5A, 10V | 2.3V @ 1mA | 20 nC @ 10 V | ±20V | 1900 pF @ 10 V | - | 700mW (Ta), 30W (Tc) | 150°C (TJ) | Surface Mount |
|

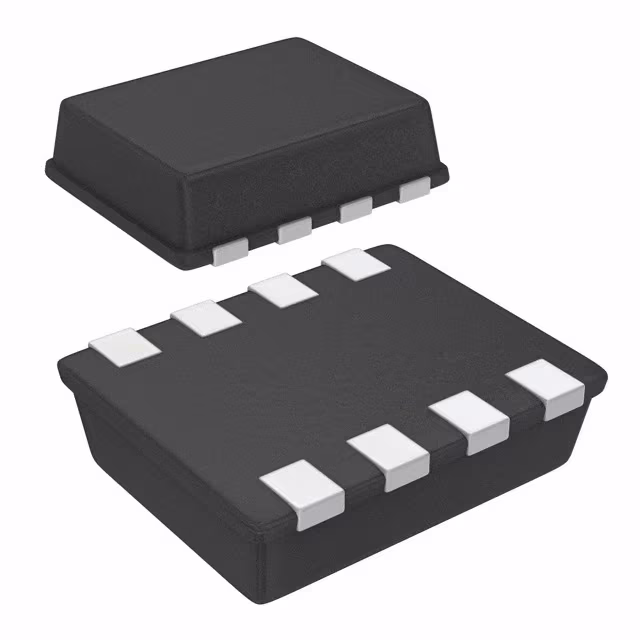

TPCP8004(TE85L,F)MOSFET N-CH 30V 8.3A PS-8 |
2,960 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIV | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 8.3A (Ta) | 4.5V, 10V | 8.5mOhm @ 4.2A, 10V | 2.5V @ 1mA | 26 nC @ 10 V | ±20V | 1270 pF @ 10 V | - | 840mW (Ta) | 150°C (TJ) | Surface Mount |
|
TPCP8103-H(TE85LFMMOSFET P-CH 40V 4.8A PS-8 |
3,960 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | U-MOSIII-H | Obsolete | P-Channel | MOSFET (Metal Oxide) | 40 V | 4.8A (Ta) | 4.5V, 10V | 40mOhm @ 2.4A, 10V | 2V @ 1mA | 19 nC @ 10 V | ±20V | 800 pF @ 10 V | - | 840mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
SSM3J108TU(TE85L)MOSFET P-CH 20V 1.8A UFM |
2,752 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSIII | Obsolete | P-Channel | MOSFET (Metal Oxide) | 20 V | 1.8A (Ta) | 1.8V, 4V | 158mOhm @ 800mA, 4V | 1V @ 1mA | - | ±8V | 250 pF @ 10 V | - | 500mW (Ta) | 150°C (TJ) | Surface Mount |
|
|
TK40P03M1(T6RSS-Q)MOSFET N-CH 30V 40A DP |
2,040 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | U-MOSVI-H | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 40A (Ta) | 4.5V, 10V | 10.8mOhm @ 20A, 10V | 2.3V @ 100µA | 17.5 nC @ 10 V | ±20V | 1150 pF @ 10 V | - | - | - | Surface Mount |
