| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STP28N60DM2MOSFET N-CH 600V 21A TO220 |
2,990 | 4.08 |
RFQ |
Datasheet |
Tube | MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 160mOhm @ 10.5A, 10V | 5V @ 250µA | 34 nC @ 10 V | ±25V | 1500 pF @ 100 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STW28N65M2MOSFET N-CH 650V 20A TO247 |
2,308 | 4.48 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 20A (Tc) | 10V | 180mOhm @ 10A, 10V | 4V @ 250µA | 35 nC @ 10 V | ±25V | 1440 pF @ 100 V | - | 170W (Tc) | 150°C (TJ) | Through Hole |
|
STP40N65M2MOSFET N-CH 650V 32A TO220 |
2,458 | 6.17 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 99mOhm @ 16A, 10V | 4V @ 250µA | 56.5 nC @ 10 V | ±25V | 2355 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | Through Hole |
|
|
STW7N95K3MOSFET N-CH 950V 7.2A TO247-3 |
3,692 | 6.95 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 7.2A (Tc) | 10V | 1.35Ohm @ 3.6A, 10V | 5V @ 100µA | 34 nC @ 10 V | ±30V | 1031 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP13N95K3MOSFET N-CH 950V 10A TO220 |
2,342 | 7.44 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 10A (Tc) | 10V | 850mOhm @ 5A, 10V | 5V @ 100µA | 51 nC @ 10 V | ±30V | 1620 pF @ 100 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP270N8F7MOSFET N CH 80V 180A TO220 |
3,771 | 6.17 |
RFQ |
Datasheet |
Tube | DeepGATE™, STripFET™ VII | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 180A (Tc) | 10V | 2.5mOhm @ 90A, 10V | 4V @ 250µA | 193 nC @ 10 V | ±20V | 13600 pF @ 50 V | - | 315W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
STP9NM60NMOSFET N-CH 600V 6.5A TO220AB |
680 | 2.83 |
RFQ |
Datasheet |
Tube | MDmesh™ II | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 6.5A (Tc) | 10V | 745mOhm @ 3.25A, 10V | 4V @ 250µA | 17.4 nC @ 10 V | ±25V | 452 pF @ 50 V | - | 70W (Tc) | 150°C (TJ) | Through Hole |
|
STF18N65M2MOSFET N-CH 650V 12A TO220FP |
765 | 2.85 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 330mOhm @ 6A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±25V | 770 pF @ 100 V | - | 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP24N60M6MOSFET N-CH 600V TO220 |
732 | 3.04 |
RFQ |
Tube | MDmesh™ M6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tj) | - | - | - | - | - | - | - | - | - | Through Hole | |
|
|
STP18N65M2MOSFET N-CH 650V 12A TO220 |
2,088 | 3.04 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 330mOhm @ 6A, 10V | 4V @ 250µA | 20 nC @ 10 V | ±25V | 770 pF @ 100 V | - | 110W (Tc) | 150°C (TJ) | Through Hole |
|
STF12N65M5MOSFET N-CH 650V 8.5A TO220FP |
153 | 3.24 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 8.5A (Tc) | 10V | 430mOhm @ 4.3A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 900 pF @ 100 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP42N60M2-EPMOSFET N-CH 600V 34A TO220 |
3,164 | 7.62 |
RFQ |
Datasheet |
Tube | MDmesh™ M2-EP | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 87mOhm @ 17A, 10V | 4.75V @ 250µA | 55 nC @ 10 V | ±25V | 2370 pF @ 100 V | - | 250W (Tc) | 150°C (TJ) | Through Hole |
|
|
STP15N65M5MOSFET N CH 650V 11A TO220 |
1,000 | 2.91 |
RFQ |
Datasheet |
Tube | MDmesh™ V | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 11A (Tc) | 10V | 340mOhm @ 5.5A, 10V | 5V @ 250µA | 22 nC @ 10 V | ±25V | 810 pF @ 100 V | - | 125W (Tc) | 150°C (TJ) | Through Hole |
|
|
STW58N60DM2AGMOSFET N-CH 600V 50A TO247 |
2,523 | 12.63 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, MDmesh™ DM2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 50A (Tc) | 10V | 60mOhm @ 25A, 10V | 5V @ 250µA | 90 nC @ 10 V | ±25V | 4100 pF @ 100 V | - | 360W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP7N95K3MOSFET N-CH 950V 7.2A TO220-3 |
320 | 3.29 |
RFQ |
Datasheet |
Tube | SuperMESH3™ | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 7.2A (Tc) | 10V | 1.35Ohm @ 3.6A, 10V | 5V @ 100µA | 34 nC @ 10 V | ±30V | 1031 pF @ 100 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STF16N60M2MOSFET N-CH 600V 12A TO220FP |
231 | 2.13 |
RFQ |
Datasheet |
Tube | MDmesh™ M2 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 320mOhm @ 6A, 10V | 4V @ 250µA | 19 nC @ 10 V | ±25V | 700 pF @ 100 V | - | 25W (Tc) | 150°C (TJ) | Through Hole |
|

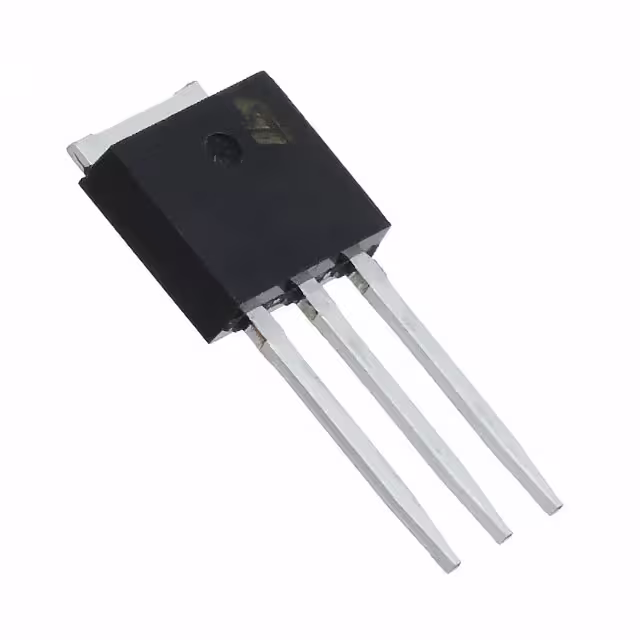

STU6N90K5MOSFET N-CH 900V 6A IPAK |
182 | 2.27 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 6A (Tc) | 10V | 1.1Ohm @ 3A, 10V | 5V @ 100µA | - | ±30V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
STP7LN80K5MOSFET N-CH 800V 5A TO220 |
955 | 2.33 |
RFQ |
Datasheet |
Tube | MDmesh™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5A (Tc) | 10V | 1.15Ohm @ 2.5A, 10V | 5V @ 100µA | 12 nC @ 10 V | ±30V | 270 pF @ 100 V | - | 85W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STU8N80K5MOSFET N-CH 800V 6A TO251 |
498 | 2.60 |
RFQ |
Datasheet |
Tube | SuperMESH5™ | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 950mOhm @ 3A, 10V | 5V @ 100µA | 16.5 nC @ 10 V | ±30V | 450 pF @ 100 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
STI6N90K5MOSFET N-CH 900V 6A I2PAK |
140 | 2.61 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 6A (Tc) | 10V | 1.1Ohm @ 3A, 10V | 5V @ 100µA | - | ±30V | - | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
