| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STB110N55F6MOSFET N-CH 550V DPAK |
3,504 | 0.00 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
STB140N4F6MOSFET N-CH 40V 80A D2PAK |
2,078 | 0.00 |
RFQ |
Tape & Reel (TR) | STripFET™ F6 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 80A (Tc) | 4.5V, 10V | - | - | - | - | - | - | 168W (Tc) | - | Surface Mount | |
|
|
STB20N60M2-EPMOSFET N-CH 600V 13A D2PAK |
3,880 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | MDmesh™ M2-EP | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | - | 4.75V @ 250µA | 22 nC @ 10 V | - | - | - | - | 150°C (TJ) | Surface Mount |
|
|
STB78NF55-08MOSFET N-CH 55V 80A D2PAK |
3,165 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 55 V | 80A (Tc) | 10V | 8mOhm @ 40A, 10V | 4V @ 250µA | 155 nC @ 10 V | ±20V | 3740 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
STD100N10LF7AGMOSFET N-CH 100V 80A DPAK |
2,184 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, STripFET™ F7 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 4.5V, 10V | 9mOhm @ 40A, 10V | 2.5V @ 250µA | 73 nC @ 10 V | ±20V | 4000 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STD13NM50NMOSFET N-CH 500V DPAK |
3,425 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STD19NF06LMOSFET N-CH 60V DPAK |
2,572 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
STD19NF20MOSFET N-CHANNEL 200V 15A DPAK |
2,584 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | MESH OVERLAY™ | Obsolete | N-Channel | MOSFET (Metal Oxide) | 200 V | 15A (Tc) | 10V | 160mOhm @ 7.5A, 10V | 4V @ 250µA | 24 nC @ 10 V | ±20V | 800 pF @ 25 V | - | 90W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
;;2.jpg)
|
STD90NS3LLH7MOSFET N-CHANNEL 30V 80A DPAK |
3,205 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ H7 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 30 V | 80A (Tc) | 4.5V, 10V | 3.4mOhm @ 40A, 10V | 1.2V @ 1mA | 13.7 nC @ 4.5 V | ±20V | 2110 pF @ 25 V | Schottky Diode (Body) | 57W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
STH180N4F6-2MOSFET N-CH 40V 120A H2PAK-2 |
2,275 | 0.00 |
RFQ |
Tape & Reel (TR) | STripFET™ F6 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tc) | 10V | 2.4mOhm @ 60A, 10V | 4.5V @ 250µA | 130 nC @ 10 V | ±20V | 7735 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
STH52N10LF3-2AGMOSFET N-CH 100V 52A H2PAK-2 |
3,760 | 0.00 |
RFQ |
Tape & Reel (TR) | STripFET™ F3 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 52A (Tc) | 5V, 10V | 20mOhm @ 26A, 10V | 2.5V @ 250µA | 18.5 nC @ 5 V | ±20V | 1900 pF @ 400 V | - | 110W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
STL100N12F7MOSFET N-CH 120V 100A POWERFLAT |
3,976 | 0.00 |
RFQ |
Tape & Reel (TR) | STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 100A (Tc) | 10V | 7.5mOhm @ 9A, 10V | 4.5V @ 250µA | 46 nC @ 10 V | ±20V | 3300 pF @ 60 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
STL11N60M2-EPMOSFET N-CH 600V POWERFLAT HV |
2,599 | 0.00 |
RFQ |
Tape & Reel (TR) | MDmesh™ M2-EP | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 5.5A (Tc) | - | - | - | - | - | - | - | - | 150°C (TJ) | Surface Mount | |
|
|
STL200N45LF7MOSFET N-CH 45V 120A POWERFLAT |
3,067 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | STripFET™ F7 | Active | N-Channel | MOSFET (Metal Oxide) | 45 V | 120A (Tc) | 4.5V, 10V | 1.8mOhm @ 18A, 10V | 1.2V @ 250µA | 33 nC @ 4.5 V | ±20V | 5170 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STL287N4F7AGMOSFET N-CH 40V PWRFLAT 8X8 |
3,536 | 0.00 |
RFQ |
Tape & Reel (TR) | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
STL8N6LF3MOSFET N-CH 60V 20A POWERFLAT |
2,480 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101, STripFET™ F3 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 60 V | 20A (Tc) | 5V, 10V | 30mOhm @ 4A, 10V | 2.5V @ 250µA | 13 nC @ 10 V | ±20V | 668 pF @ 25 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
STL9N80K5MOSFET N-CH 800V 7A POWERFLAT |
3,792 | 0.00 |
RFQ |
Tape & Reel (TR) | MDmesh™ K5 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 7A (Tc) | 10V | - | - | - | - | - | - | 110W (Tc) | - | Surface Mount | |
|

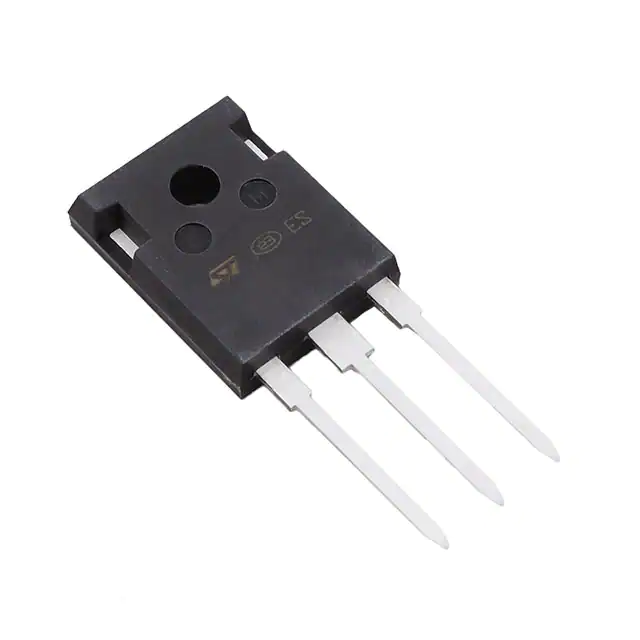

SCTWA30N120IC POWER MOSFET 1200V HIP247 |
559 | 0.00 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 1200 V | 45A (Tc) | 20V | 100mOhm @ 20A, 20V | 3.5V @ 1mA (Typ) | 105 nC @ 20 V | +25V, -10V | 1700 pF @ 400 V | - | 270W (Tc) | -55°C ~ 200°C (TJ) | Through Hole |
|
STF22NM60NDMOSFET N-CH 600V 17A TO220FP |
3,520 | 0.00 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, FDmesh™ II | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 17A (Tc) | 10V | 220mOhm @ 8.5A, 10V | 5V @ 250µA | 60 nC @ 10 V | ±25V | 1800 pF @ 50 V | - | 30W (Tc) | 150°C (TJ) | Through Hole |
|
|
STFI10LN80K5MOSFET N-CH 800V 8A I2PAKFP |
2,226 | 0.00 |
RFQ |
Datasheet |
Tube | MDmesh™ K5 | Obsolete | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 630mOhm @ 4A, 10V | 5V @ 100µA | 15 nC @ 10 V | ±30V | 427 pF @ 100 V | - | 20W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
