| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSC500N20NS3GATMA1MOSFET N-CH 200V 24A TDSON-8 |
3,159 | 2.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 24A (Tc) | 10V | 50mOhm @ 22A, 10V | 4V @ 60µA | 15 nC @ 10 V | ±20V | 1580 pF @ 100 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPB029N06N3GATMA1MOSFET N-CH 60V 120A D2PAK |
3,577 | 2.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 2.9mOhm @ 100A, 10V | 4V @ 118µA | 165 nC @ 10 V | ±20V | 13000 pF @ 30 V | - | 188W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SPD15P10PLGBTMA1MOSFET P-CH 100V 15A TO252-3 |
3,908 | 2.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Tc) | 4.5V, 10V | 200mOhm @ 11.3A, 10V | 2V @ 1.54mA | 62 nC @ 10 V | ±20V | 1490 pF @ 25 V | - | 128W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD082N10N3GATMA1MOSFET N-CH 100V 80A TO252-3 |
2,810 | 2.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 6V, 10V | 8.2mOhm @ 73A, 10V | 3.5V @ 75µA | 55 nC @ 10 V | ±20V | 3980 pF @ 50 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

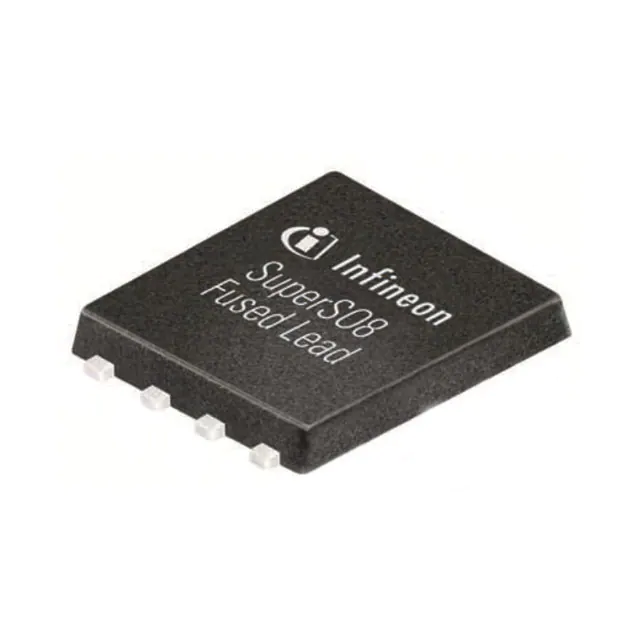

ISC060N10NM6ATMA1TRENCH >=100V PG-TDSON-8 |
2,326 | 2.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 15A (Ta), 97A (Tc) | 8V, 10V | 6mOhm @ 25A, 10V | 3.3V @ 50µA | 33 nC @ 10 V | ±20V | 2500 pF @ 50 V | - | 3W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
AUIRLR3410TRLMOSFET N-CH 100V 17A DPAK |
3,012 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 17A (Tc) | 4V, 10V | 105mOhm @ 10A, 10V | 2V @ 250µA | 34 nC @ 5 V | ±16V | 800 pF @ 25 V | - | 79W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IAUC120N04S6L009ATMA1MOSFET N-CH 40V 150A TDSON-8-34 |
3,466 | 2.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™-6 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 150A (Tc) | 4.5V, 10V | 960mOhm @ 60A, 10V | 2V @ 90µA | 128 nC @ 10 V | ±16V | 7806 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFR3710ZTRPBFMOSFET N-CH 100V 42A DPAK |
2,705 | 2.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 18mOhm @ 33A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 2930 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRFR3710ZTRLPBFMOSFET N-CH 100V 42A DPAK |
3,817 | 2.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 42A (Tc) | 10V | 18mOhm @ 33A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 2930 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSC030N08NS5ATMA1MOSFET N-CH 80V 100A TDSON |
3,401 | 2.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 100A (Tc) | 6V, 10V | 3mOhm @ 50A, 10V | 3.8V @ 95µA | 76 nC @ 10 V | ±20V | 5600 pF @ 40 V | - | 2.5W (Ta), 139W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSP135H6906XTSA1MOSFET N-CH 600V 120MA SOT223-4 |
2,268 | 2.68 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | SIPMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 120mA (Ta) | 0V, 10V | 45Ohm @ 120mA, 10V | 1V @ 94µA | 4.9 nC @ 5 V | ±20V | 146 pF @ 25 V | Depletion Mode | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRF9540NSTRLPBFMOSFET P-CH 100V 23A D2PAK |
3,392 | 2.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 23A (Tc) | 10V | 117mOhm @ 14A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 3.1W (Ta), 110W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ISC010N04NM6ATMA1TRENCH <= 40V |
2,025 | 2.76 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ 6 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Ta), 285A (Tc) | 6V, 10V | 1mOhm @ 50A, 10V | 2.8V @ 747µA | 83 nC @ 10 V | ±20V | 6000 pF @ 20 V | - | 3W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSC080P03LSGAUMA1MOSFET P-CH 30V 16A/30A TDSON-8 |
2,438 | 2.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 16A (Ta), 30A (Tc) | 10V | 8mOhm @ 30A, 10V | 2.2V @ 250µA | 122.4 nC @ 10 V | ±25V | 6140 pF @ 15 V | - | 2.5W (Ta), 89W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD70N10S3L12ATMA1MOSFET N-CH 100V 70A TO252-3 |
3,769 | 2.84 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 70A (Tc) | 4.5V, 10V | 11.5mOhm @ 70A, 10V | 2.4V @ 83µA | 77 nC @ 10 V | ±20V | 5550 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD110N12N3GATMA1MOSFET N-CH 120V 75A TO252-3 |
2,197 | 2.85 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 75A (Tc) | 10V | 11mOhm @ 75A, 10V | 3V @ 83µA (Typ) | 65 nC @ 10 V | ±20V | 4310 pF @ 60 V | - | 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPB60R280P7ATMA1MOSFET N-CH 600V 12A D2PAK |
2,197 | 2.97 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 12A (Tc) | 10V | 280mOhm @ 3.8A, 10V | 4V @ 190µA | 18 nC @ 10 V | ±20V | 761 pF @ 400 V | - | 53W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD90P03P4L04ATMA1MOSFET P-CH 30V 90A TO252-3 |
2,524 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS™ | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | 4.5V, 10V | 4.1mOhm @ 90A, 10V | 2V @ 253µA | 160 nC @ 10 V | +5V, -16V | 11300 pF @ 25 V | - | 137W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD90P04P405ATMA1MOSFET P-CH 40V 90A TO252-3 |
2,027 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Not For New Designs | P-Channel | MOSFET (Metal Oxide) | 40 V | 90A (Tc) | 10V | 4.7mOhm @ 90A, 10V | 4V @ 250µA | 154 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPD90P03P404ATMA2MOSFET P-CH 30V 90A TO252-31 |
2,561 | 2.99 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS®-P2 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 90A (Tc) | - | 4.5mOhm @ 90A, 10V | 4V @ 253µA | 130 nC @ 10 V | ±20V | 10300 pF @ 25 V | - | 137W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
