| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSS138WH6327XTSA1MOSFET N-CH 60V 280MA SOT323-3 |
771 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 280mA (Ta) | 4.5V, 10V | 3.5Ohm @ 200mA, 10V | 1.4V @ 26µA | 1.5 nC @ 10 V | ±20V | 43 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSS308PEH6327XTSA1MOSFET P-CH 30V 2A SOT23-3 |
3,206 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2A (Ta) | 4.5V, 10V | 80mOhm @ 2A, 10V | 2V @ 11µA | 5 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLML0030TRPBFMOSFET N-CH 30V 5.3A SOT23 |
3,551 | 0.55 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 5.3A (Ta) | 4.5V, 10V | 27mOhm @ 5.2A, 10V | 2.3V @ 25µA | 2.6 nC @ 4.5 V | ±20V | 382 pF @ 15 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS131H6327XTSA1MOSFET N-CH 240V 110MA SOT23-3 |
3,318 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 240 V | 110mA (Ta) | 4.5V, 10V | 14Ohm @ 100mA, 10V | 1.8V @ 56µA | 3.1 nC @ 10 V | ±20V | 77 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS127H6327XTSA2MOSFET N-CH 600V 21MA SOT23-3 |
3,558 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21mA (Ta) | 4.5V, 10V | 500Ohm @ 16mA, 10V | 2.6V @ 8µA | 1 nC @ 10 V | ±20V | 28 pF @ 25 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS83PH6327XTSA1MOSFET P-CH 60V 330MA SOT23-3 |
3,679 | 0.47 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 330mA (Ta) | 4.5V, 10V | 2Ohm @ 330mA, 10V | 2V @ 80µA | 3.57 nC @ 10 V | ±20V | 78 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML6401TRPBFMOSFET P-CH 12V 4.3A SOT23 |
2,278 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 12 V | 4.3A (Ta) | 1.8V, 4.5V | 50mOhm @ 4.3A, 4.5V | 950mV @ 250µA | 15 nC @ 5 V | ±8V | 830 pF @ 10 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRLML0100TRPBFMOSFET N-CH 100V 1.6A SOT23 |
2,387 | 0.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.6A (Ta) | 4.5V, 10V | 220mOhm @ 1.6A, 10V | 2.5V @ 25µA | 2.5 nC @ 4.5 V | ±16V | 290 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS139H6327XTSA1MOSFET N-CH 250V 100MA SOT23-3 |
2,551 | 0.60 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 100mA (Ta) | 0V, 10V | 14Ohm @ 100µA, 10V | 1V @ 56µA | 3.5 nC @ 5 V | ±20V | 76 pF @ 25 V | Depletion Mode | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSP88H6327XTSA1MOSFET N-CH 240V 350MA SOT223-4 |
2,415 | 0.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SIPMOS® | Active | N-Channel | MOSFET (Metal Oxide) | 240 V | 350mA (Ta) | 2.8V, 10V | 6Ohm @ 350mA, 10V | 1.4V @ 108µA | 6.8 nC @ 10 V | ±20V | 95 pF @ 25 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPZ40N04S5L7R4ATMA1MOSFET N-CH 40V 40A 8TSDSON |
3,917 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS™-5 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 40A (Tc) | 4.5V, 10V | 7.4mOhm @ 20A, 10V | 2V @ 10µA | 17 nC @ 10 V | ±16V | 920 pF @ 25 V | - | 34W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPD70R1K4P7SAUMA1MOSFET N-CH 700V 4A TO252-3 |
2,089 | 0.82 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 4A (Tc) | 10V | 1.4Ohm @ 700mA, 10V | 3.5V @ 40µA | 4.7 nC @ 10 V | ±16V | 158 pF @ 400 V | - | 23W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPD60R1K5CEAUMA1MOSFET N-CH 650V 5A TO252 |
2,434 | 0.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 5A (Tc) | 10V | 1.5Ohm @ 1.1A, 10V | 3.5V @ 90µA | 9.4 nC @ 10 V | ±20V | 200 pF @ 100 V | - | 49W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
BSZ130N03LSGATMA1MOSFET N-CH 30V 10A/35A 8TSDSON |
3,565 | 0.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta), 35A (Tc) | 4.5V, 10V | 13mOhm @ 20A, 10V | 2.2V @ 250µA | 13 nC @ 10 V | ±20V | 970 pF @ 15 V | - | 2.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IAUZ30N06S5L140ATMA1MOSFET N-CH 60V 30A TSDSON-8-32 |
3,212 | 0.88 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 30A (Tj) | - | 14mOhm @ 15A, 10V | 2.2V @ 10µA | 12.2 nC @ 10 V | ±16V | 888 pF @ 30 V | - | 33W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|

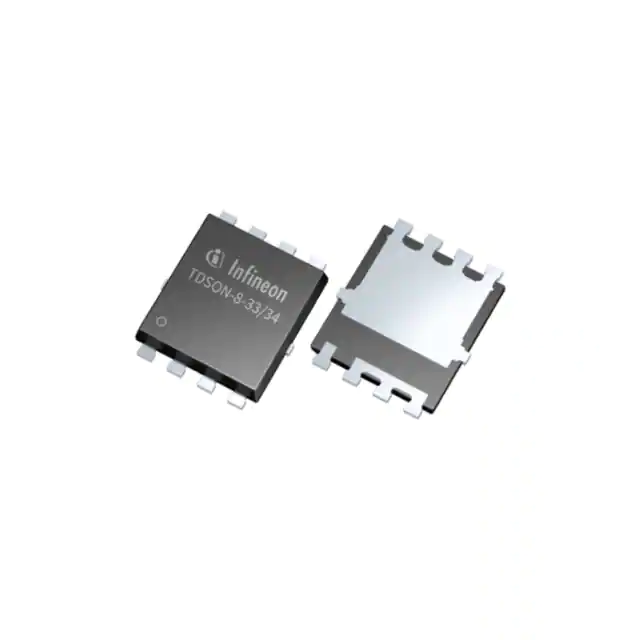

BSC090N03LSGATMA1MOSFET N-CH 30V 13A/48A TDSON |
2,730 | 0.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 13A (Ta), 48A (Tc) | 4.5V, 10V | 9mOhm @ 30A, 10V | 2.2V @ 250µA | 18 nC @ 10 V | ±20V | 1500 pF @ 15 V | - | 2.5W (Ta), 32W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM9331TRPBFMOSFET P-CH 30V 11A/24A PQFN |
3,668 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | HEXFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta), 24A (Tc) | 10V, 20V | 10mOhm @ 11A, 20V | 2.4V @ 25µA | 48 nC @ 10 V | ±25V | 1543 pF @ 25 V | - | 2.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFHM3911TRPBFMOSFET N-CH 100V 3.2A/20A 8PQFN |
3,191 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 3.2A (Ta), 20A (Tc) | 10V | 115mOhm @ 6.3A, 10V | 4V @ 35µA | 26 nC @ 10 V | ±20V | 760 pF @ 50 V | - | 2.8W (Ta), 29W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSZ060NE2LSATMA1MOSFET N-CH 25V 12A/40A TSDSON |
83,750 | 0.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 25 V | 12A (Ta), 40A (Tc) | 4.5V, 10V | 6mOhm @ 20A, 10V | 2V @ 250µA | 9.1 nC @ 10 V | ±20V | 670 pF @ 12 V | - | 2.1W (Ta), 26W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRLL024ZTRPBFMOSFET N-CH 55V 5A SOT223 |
2,215 | 0.96 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 5A (Tc) | 4.5V, 10V | 60mOhm @ 3A, 10V | 3V @ 250µA | 11 nC @ 5 V | ±16V | 380 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
