| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRL40SC209MOSFET N-CH 40V 478A D2PAK |
335 | 4.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | StrongIRFET™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 478A (Tc) | 4.5V, 10V | 0.8mOhm @ 100A, 10V | 2.4V @ 250µA | 267 nC @ 4.5 V | ±20V | 15270 pF @ 25 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

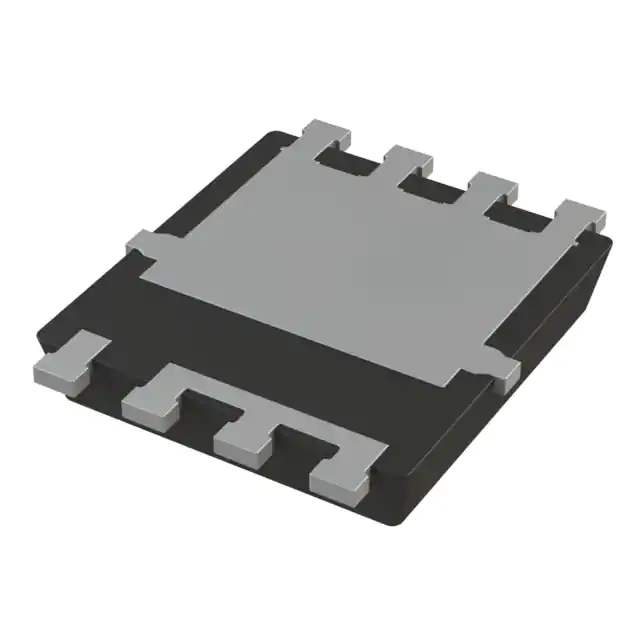

BSC070N10LS5ATMA1MOSFET N-CH 100V 14A/79A TDSON |
2,219 | 3.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ 5 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 14A (Ta), 79A (Tc) | 4.5V, 10V | 7mOhm @ 40A, 10V | 2.3V @ 49µA | 20 nC @ 4.5 V | ±20V | 2700 pF @ 50 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSC028N06NSATMA1MOSFET N-CH 60V 23A/100A TDSON |
2,755 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 23A (Ta), 100A (Tc) | 6V, 10V | 2.8mOhm @ 50A, 10V | 2.8V @ 50µA | 37 nC @ 10 V | ±20V | 2700 pF @ 30 V | - | 2.5W (Ta), 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
BSC080N12LSGATMA1TRENCH >=100V PG-TDSON-8 |
4,914 | 3.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 120 V | 12A (Ta), 99A (Tc) | 4.5V, 10V | 8mOhm @ 50A, 10V | 2.4V @ 112µA | 79 nC @ 10 V | ±20V | 7400 pF @ 60 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF3805STRLPBFMOSFET N-CH 55V 75A D2PAK |
690 | 5.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 75A (Tc) | 10V | 3.3mOhm @ 75A, 10V | 4V @ 250µA | 290 nC @ 10 V | ±20V | 7960 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPB60R160C6ATMA1MOSFET N-CH 600V 23.8A D2PAK |
1,000 | 5.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 23.8A (Tc) | 10V | 160mOhm @ 11.3A, 10V | 3.5V @ 750µA | 75 nC @ 10 V | ±20V | 1660 pF @ 100 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPC313N10N3RX1SA2TRENCH >=100V |
7,784 | 3.30 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IPB60R199CPATMA1MOSFET N-CH 650V 16A TO263-3 |
537 | 5.25 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 16A (Tc) | 10V | 199mOhm @ 9.9A, 10V | 3.5V @ 660µA | 43 nC @ 10 V | ±20V | 1520 pF @ 100 V | - | 139W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPT60R150G7XTMA1MOSFET N-CH 650V 17A 8HSOF |
1,071 | 5.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ G7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 17A (Tc) | 10V | 150mOhm @ 5.3A, 10V | 4V @ 260µA | 23 nC @ 10 V | ±20V | 902 pF @ 400 V | - | 106W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPD95R450P7ATMA1MOSFET N-CH 950V 14A TO252-3 |
2,481 | 3.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 14A (Tc) | 10V | 450mOhm @ 7.2A, 10V | 3.5V @ 360µA | 35 nC @ 10 V | ±20V | 1053 pF @ 400 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPT60R102G7E8236XTMA1HIGH POWER_NEW |
6,748 | 3.44 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IST026N10NM5AUMA1TRENCH >=100V PG-HSOF-5 |
1,988 | 5.57 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™5 | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 27A (Ta), 248A (Tc) | 6V, 10V | 2.6mOhm @ 100A, 10V | 3.8V @ 148µA | 125 nC @ 10 V | ±20V | 6300 pF @ 50 V | - | 3.8W (Ta), 313W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
BSC014N04LSIATMA1MOSFET N-CH 40V 31A/100A TDSON |
19,508 | 3.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 31A (Ta), 100A (Tc) | 4.5V, 10V | 1.45mOhm @ 50A, 10V | 2V @ 250µA | 55 nC @ 10 V | ±20V | 4000 pF @ 20 V | - | 2.5W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPB80N08S207ATMA1MOSFET N-CH 75V 80A TO263-3 |
258 | 5.61 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 80A (Tc) | 10V | 7.1mOhm @ 80A, 10V | 4V @ 250µA | 180 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
AUIRFS4010-7PAUIRFS4010 - 120V-300V N-CHANNEL |
894 | 3.65 |
RFQ |
Datasheet |
Bulk | Automotive, AEC-Q101, HEXFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 190A (Tc) | - | 4mOhm @ 110A, 10V | 4V @ 250µA | 230 nC @ 10 V | ±20V | 9830 pF @ 50 V | - | 380W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSC007N04LS6ATMA1MOSFET N-CH 40V 100A TDSON-8-6 |
11,073 | 3.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 381A (Tc) | 4.5V, 10V | 0.7mOhm @ 50A, 10V | 2.3V @ 250µA | 94 nC @ 4.5 V | ±20V | 8400 pF @ 20 V | - | 188W | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
BSC110N15NS5ATMA1MOSFET N-CH 150V 76A TDSON |
2,100 | 3.95 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 76A (Tc) | 8V, 10V | 11mOhm @ 38A, 10V | 4.6V @ 91µA | 35 nC @ 10 V | ±20V | 2770 pF @ 75 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IAUC120N04S6L005ATMA1IAUC120N04S6L005ATMA1 |
5,000 | 4.10 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 120A (Tj) | 4.5V, 10V | 0.55mOhm @ 60A, 10V | 2V @ 130µA | 177 nC @ 10 V | ±16V | 11203 pF @ 25 V | - | 187W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPDD60R125CFD7XTMA1MOSFET N-CH 600V 27A HDSOP-10 |
861 | 6.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 27A (Tc) | - | 125mOhm @ 6.8A, 10V | 4.5V @ 340µA | 31 nC @ 10 V | ±20V | 1329 pF @ 400 V | - | 176W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPB020N08N5ATMA1MOSFET N-CH 80V 120A D2PAK |
395 | 6.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 120A (Tc) | 6V, 10V | 2mOhm @ 100A, 10V | 3.8V @ 208µA | 166 nC @ 10 V | ±20V | 12100 pF @ 40 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
