| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IPB60R060C7ATMA1MOSFET N-CH 650V 35A TO263-3 |
2,732 | 10.87 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 35A (Tc) | 10V | 60mOhm @ 15.9A, 10V | 4V @ 800µA | 68 nC @ 10 V | ±20V | 2850 pF @ 400 V | - | 162W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPW60R165CPFKSA1MOSFET N-CH 600V 21A TO247-3 |
3,601 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 165mOhm @ 12A, 10V | 3.5V @ 790µA | 52 nC @ 10 V | ±20V | 2000 pF @ 100 V | - | 192W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW60R105CFD7XKSA1MOSFET N-CH 600V 21A TO247-3 |
3,270 | 7.79 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 105mOhm @ 9.3A, 10V | 4.5V @ 470µA | 42 nC @ 10 V | ±20V | 1752 pF @ 400 V | - | 106W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW60R099C7XKSA1MOSFET N-CH 600V 14A TO247-3 |
3,359 | 7.83 |
RFQ |
Datasheet |
Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 14A (Tc) | 10V | 99mOhm @ 9.7A, 10V | 4V @ 490µA | 42 nC @ 10 V | ±20V | 1819 pF @ 400 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPW65R110CFDFKSA1MOSFET N-CH 650V 31.2A TO247-3 |
3,872 | 8.82 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 31.2A (Tc) | 10V | 110mOhm @ 12.7A, 10V | 4.5V @ 1.3mA | 118 nC @ 10 V | ±20V | 3240 pF @ 100 V | - | 277.8W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPP65R110CFDAAKSA1MOSFET N-CH 650V 31.2A TO220-3 |
3,096 | 9.43 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 31.2A (Tc) | 10V | 110mOhm @ 12.7A, 10V | 4.5V @ 1.3mA | 118 nC @ 10 V | ±20V | 3240 pF @ 100 V | - | 277.8W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPZA60R060P7XKSA1MOSFET N-CH 600V 48A TO247-4 |
2,998 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 48A (Tc) | 10V | 60mOhm @ 15.9A, 10V | 4V @ 800µA | 67 nC @ 10 V | ±20V | 2895 pF @ 400 V | - | 164W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPW65R099C6FKSA1MOSFET N-CH 650V 38A TO247-3 |
2,393 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 38A (Tc) | 10V | 99mOhm @ 12.8A, 10V | 3.5V @ 1.2mA | 127 nC @ 10 V | ±20V | 2780 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPBE65R075CFD7AATMA1MOSFET N-CH 650V 32A TO263-7 |
3,940 | 13.28 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 75mOhm @ 16.4A, 10V | 4.5V @ 820µA | 68 nC @ 10 V | ±20V | 3288 pF @ 400 V | - | 171W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPW65R110CFDAFKSA1MOSFET N-CH 650V 31.2A TO247-3 |
3,474 | 10.94 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 31.2A (Tc) | 10V | 110mOhm @ 12.7A, 10V | 4.5V @ 1.3mA | 118 nC @ 10 V | ±20V | 3240 pF @ 100 V | - | 277.8W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IPZ65R065C7XKSA1MOSFET N-CH 650V 33A TO247-4 |
3,766 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 33A (Tc) | 10V | 65mOhm @ 17.1A, 10V | 4V @ 850µA | 64 nC @ 10 V | ±20V | 3020 pF @ 400 V | - | 171W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPW65R099CFD7AXKSA1MOSFET N-CH 650V 24A TO247-3-41 |
2,765 | 9.71 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 24A (Tc) | 10V | 99mOhm @ 12.5A, 10V | 4.5V @ 630µA | 53 nC @ 10 V | ±20V | 2513 pF @ 400 V | - | 127W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPT60R035CFD7XTMA1MOSFET N-CH 600V 67A 8HSOF |
2,395 | 15.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ CFD7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 67A (Tc) | 10V | 35mOhm @ 24.9A, 10V | 4.5V @ 1.25mA | 109 nC @ 10 V | ±20V | 4354 pF @ 400 V | - | 351W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|

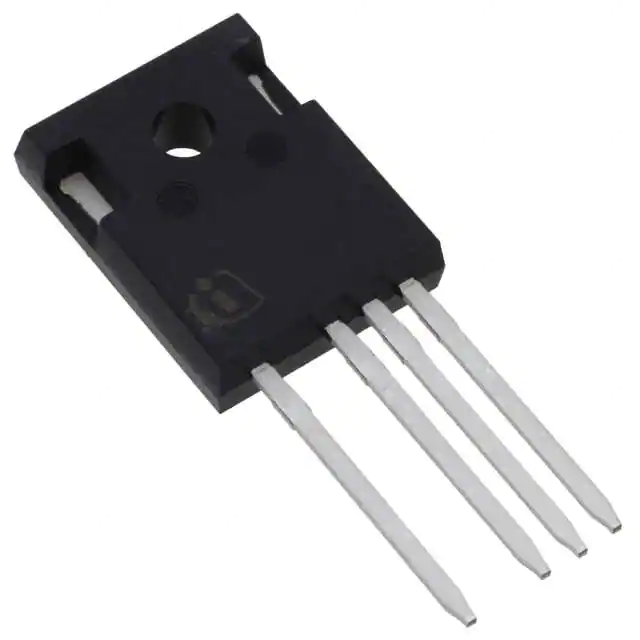

IPZ65R045C7XKSA1MOSFET N-CH 650V 46A TO247 |
2,371 | 17.08 |
RFQ |
Datasheet |
Tube | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 46A (Tc) | 10V | 45mOhm @ 24.9A, 10V | 4V @ 1.25mA | 93 nC @ 10 V | ±20V | 4340 pF @ 400 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPW65R075CFD7AXKSA1MOSFET N-CH 650V 32A TO247-3-41 |
3,241 | 12.66 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 75mOhm @ 16.4A, 10V | 4.5V @ 820µA | 68 nC @ 10 V | ±20V | 3288 pF @ 400 V | - | 171W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
|
IPW65R050CFD7AXKSA1MOSFET N-CH 650V 45A TO247-3-41 |
2,458 | 14.39 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | 4.5V @ 1.24mA | 102 nC @ 10 V | ±20V | 4975 pF @ 400 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPP65R050CFD7AAKSA1MOSFET N-CH 650V 45A TO220-3 |
2,093 | 14.83 |
RFQ |
Datasheet |
Tube | Automotive, AEC-Q101, CoolMOS™ CFD7A | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 45A (Tc) | 10V | 50mOhm @ 24.8A, 10V | 4.5V @ 1.24mA | 102 nC @ 10 V | ±20V | 4975 pF @ 400 V | - | 227W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
SN7002WL6327SMALL SIGNAL N-CHANNEL MOSFET |
3,057 | 0.00 |
RFQ |
Datasheet |
Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BSS123IXTMA1100V N-CH SMALL SIGNAL MOSFET IN |
2,708 | 0.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 190mA (Ta) | 4.5V, 10V | 6Ohm @ 190mA, 10V | 1.8V @ 13µA | 0.63 nC @ 10 V | ±20V | 15 pF @ 50 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BSS138IXTSA1SMALL SIGNAL MOSFETS PG-SOT23-3 |
11,900 | 0.44 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 230mA (Ta) | 4.5V, 10V | 3.5Ohm @ 230mA, 10V | 1.4V @ 26µA | 1 nC @ 10 V | ±20V | 32 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
