| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRF6716MTRPBFMOSFET N-CH 25V 39A DIRECTFET |
3,431 | 1.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 25 V | 39A (Ta), 180A (Tc) | 4.5V, 10V | 1.6mOhm @ 40A, 10V | 2.4V @ 100µA | 59 nC @ 4.5 V | ±20V | 5150 pF @ 13 V | - | 3.6W (Ta), 78W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
IPB120N06S403ATMA2MOSFET N-CH 60V 120A TO263-3 |
3,248 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | Automotive, AEC-Q101, OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 120A (Tc) | 10V | 3.2mOhm @ 100A, 10V | 4V @ 120µA | 160 nC @ 10 V | ±20V | 13150 pF @ 25 V | - | 167W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IPI086N10N3GXKSA1MOSFET N-CH 100V 80A TO262-3 |
2,127 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 6V, 10V | 8.6mOhm @ 73A, 10V | 3.5V @ 75µA | 55 nC @ 10 V | ±20V | 3980 pF @ 50 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IPA60R400CEXKSA1MOSFET N-CH 600V 10.3A TO220-FP |
2,451 | 1.95 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.3A (Tc) | 10V | 400mOhm @ 3.8A, 10V | 3.5V @ 300µA | 32 nC @ 10 V | ±20V | 700 pF @ 100 V | - | 31W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPP80R900P7XKSA1MOSFET N-CH 800V 6A TO220-3 |
547 | 1.97 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 6A (Tc) | 10V | 900mOhm @ 2.2A, 10V | 3.5V @ 110µA | 15 nC @ 10 V | ±20V | 350 pF @ 500 V | - | 45W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPA60R600P7XKSA1MOSFET N-CH 600V 6A TO220 |
3,385 | 2.01 |
RFQ |
Datasheet |
Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 6A (Tc) | 10V | 600mOhm @ 1.7A, 10V | 4V @ 80µA | 9 nC @ 10 V | ±20V | 363 pF @ 400 V | - | 21W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPA60R600P6XKSA1MOSFET N-CH 600V 4.9A TO220-FP |
2,655 | 2.12 |
RFQ |
Datasheet |
Tube | CoolMOS™ P6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 4.9A (Tc) | 10V | 600mOhm @ 2.4A, 10V | 4.5V @ 200µA | 12 nC @ 10 V | ±20V | 557 pF @ 100 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IPB60R180C7ATMA1MOSFET N-CH 650V 13A TO263-3 |
2,013 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 13A (Tc) | 10V | 130mOhm @ 5.3A, 10V | 4V @ 260µA | 24 nC @ 10 V | ±20V | 1080 pF @ 400 V | - | 68W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IPP086N10N3GXKSA1MOSFET N-CH 100V 80A TO220-3 |
2,643 | 2.20 |
RFQ |
Datasheet |
Tube | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 80A (Tc) | 6V, 10V | 8.6mOhm @ 73A, 10V | 3.5V @ 75µA | 55 nC @ 10 V | ±20V | 3980 pF @ 50 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IPA65R600E6XKSA1MOSFET N-CH 650V 7.3A TO220-FP |
3,601 | 2.26 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 7.3A (Tc) | 10V | 600mOhm @ 2.1A, 10V | 3.5V @ 210µA | 23 nC @ 10 V | ±20V | 440 pF @ 100 V | - | 28W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPA80R1K0CEXKSA2MOSFET N-CH 800V 5.7A TO220-FP |
3,062 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ CE | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 5.7A (Tc) | 10V | 950mOhm @ 3.6A, 10V | 3.9V @ 250µA | 31 nC @ 10 V | ±20V | 785 pF @ 100 V | - | 32W (Tc) | -40°C ~ 150°C (TJ) | Through Hole |
|
IPL60R185C7AUMA1MOSFET N-CH 600V 13A 4VSON |
2,196 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | CoolMOS™ C7 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 13A (Tc) | 10V | 185mOhm @ 5.3A, 10V | 4V @ 260µA | 24 nC @ 10 V | ±20V | 1080 pF @ 400 V | - | 77W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
BSB165N15NZ3GXUMA1MOSFET N-CH 150V 9A/45A 2WDSON |
17,058 | 4.24 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 9A (Ta), 45A (Tc) | 8V, 10V | 16.5mOhm @ 30A, 10V | 4V @ 110µA | 35 nC @ 10 V | ±20V | 2800 pF @ 75 V | - | 2.8W (Ta), 78W (Tc) | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
IPA60R360P7XKSA1MOSFET N-CHANNEL 650V 9A TO220 |
3,563 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 9A (Tc) | 10V | 360mOhm @ 2.7A, 10V | 4V @ 140µA | 13 nC @ 10 V | ±20V | 555 pF @ 400 V | - | 22W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPB65R190CFDATMA1MOSFET N-CH 650V 17.5A D2PAK |
2,350 | 2.42 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | CoolMOS™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 650 V | 17.5A (Tc) | 10V | 190mOhm @ 7.3A, 10V | 4.5V @ 730µA | 68 nC @ 10 V | ±20V | 1850 pF @ 100 V | - | 151W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IPU95R750P7AKMA1MOSFET N-CH 950V 9A TO251-3 |
1,660 | 2.47 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 950 V | 9A (Tc) | 10V | 750mOhm @ 4.5A, 10V | 3.5V @ 220µA | 23 nC @ 10 V | ±20V | 712 pF @ 400 V | - | 73W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IPP80R600P7XKSA1MOSFET N-CH 800V 8A TO220-3 |
2,971 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P7 | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 8A (Tc) | 10V | 600mOhm @ 3.4A, 10V | 3.5V @ 170µA | 20 nC @ 10 V | ±20V | 570 pF @ 500 V | - | 60W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

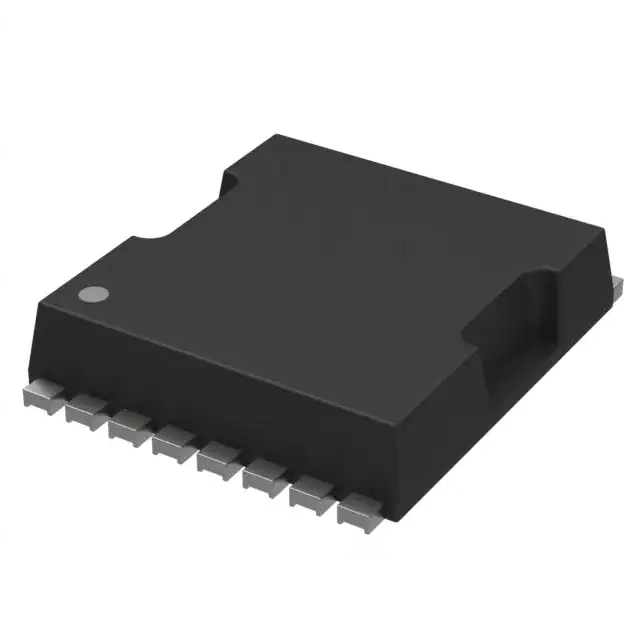

IPT029N08N5ATMA1MOSFET N-CH 80V 52A/169A HSOF-8 |
3,321 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT),Bulk | OptiMOS™ 5 | Active | N-Channel | MOSFET (Metal Oxide) | 80 V | 52A (Ta), 169A (Tc) | 6V, 10V | 2.9mOhm @ 150A, 10V | 3.8V @ 108µA | 87 nC @ 10 V | ±20V | 6500 pF @ 40 V | - | 168W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF4104SPBFMOSFET N-CH 40V 75A D2PAK |
2,326 | 2.53 |
RFQ |
Datasheet |
Tube | HEXFET® | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 40 V | 75A (Tc) | 10V | 5.5mOhm @ 75A, 10V | 4V @ 250µA | 100 nC @ 10 V | ±20V | 3000 pF @ 25 V | - | 140W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IPA60R380P6XKSA1MOSFET N-CH 600V 10.6A TO220-FP |
3,183 | 1.00 |
RFQ |
Datasheet |
Bulk,Tube | CoolMOS™ P6 | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 10.6A (Tc) | 10V | 380mOhm @ 3.8A, 10V | 4.5V @ 320µA | 19 nC @ 10 V | ±20V | 877 pF @ 100 V | - | 31W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
