| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BSS123K-13BSS FAMILY SOT23 T&R 10K |
2,185 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 230mA (Ta) | 4.5V, 10V | 6Ohm @ 170mA, 10V | 2V @ 1mA | 1.3 nC @ 10 V | ±20V | 38 pF @ 50 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3020UFDF-13MOSFET N-CH 30V 15A 6UDFN |
2,103 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 15A (Tc) | 1.5V, 4.5V | 19mOhm @ 4.5A, 4.5V | 1V @ 250µA | 27 nC @ 8 V | ±12V | 1304 pF @ 15 V | - | 2.03W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3025LSS-13MOSFET N CH 30V 7.2A 8-SO |
3,960 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 4.5V, 10V | 20mOhm @ 10A, 10V | 2V @ 250µA | 13.2 nC @ 10 V | ±20V | 641 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN4020LFDEQ-13MOSFET BVDSS: 31V~40V U-DFN2020- |
3,490 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 8.6A (Ta) | 4.5V, 10V | 21mOhm @ 8A, 10V | 2.4V @ 250µA | 25.3 nC @ 10 V | ±20V | 1201 pF @ 20 V | - | 850mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3025LFV-7MOSFET N-CH 30V 25A POWERDI3333 |
3,573 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 25A (Tc) | 4.5V, 10V | 18mOhm @ 7A, 10V | 2V @ 250µA | 9.8 nC @ 10 V | ±20V | 500 pF @ 15 V | - | 900mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2022UFDF-13MOSFET N-CH 20V 7.9A 6UDFN |
2,518 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.9A (Ta) | 1.5V, 4.5V | 22mOhm @ 4A, 4.5V | 1V @ 250µA | 18 nC @ 8 V | ±8V | 907 pF @ 10 V | - | 660mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN63D1LT-13MOSFET N-CH 60V 320MA SOT523 |
3,437 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 320mA (Ta) | 5V, 10V | 2Ohm @ 500mA, 10V | 2.5V @ 1mA | 392 nC @ 4.5 V | ±20V | 30 pF @ 25 V | - | 330mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN10H220L-13MOSFET N-CH 100V 1.4A SOT23 |
3,846 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 1.4A (Ta) | 4.5V, 10V | 220mOhm @ 1.6A, 10V | 2.5V @ 250µA | 8.3 nC @ 10 V | ±16V | 401 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2305UVT-7MOSFET P-CH 20V 4.2A SOT23-3 |
3,727 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.2A (Ta) | 1.8V, 4.5V | 60mOhm @ 4.2A, 4.5V | 900mV @ 250µA | 7.6 nC @ 4.5 V | ±8V | 727 pF @ 20 V | - | 1.4W | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN6070SY-13MOSFET N-CH 60V 4.1A SOT89-3 |
3,776 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 4.1A (Ta) | 4.5V, 10V | 85mOhm @ 2.5A, 10V | 3V @ 250µA | 12.3 nC @ 10 V | ±20V | 588 pF @ 30 V | - | 2.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

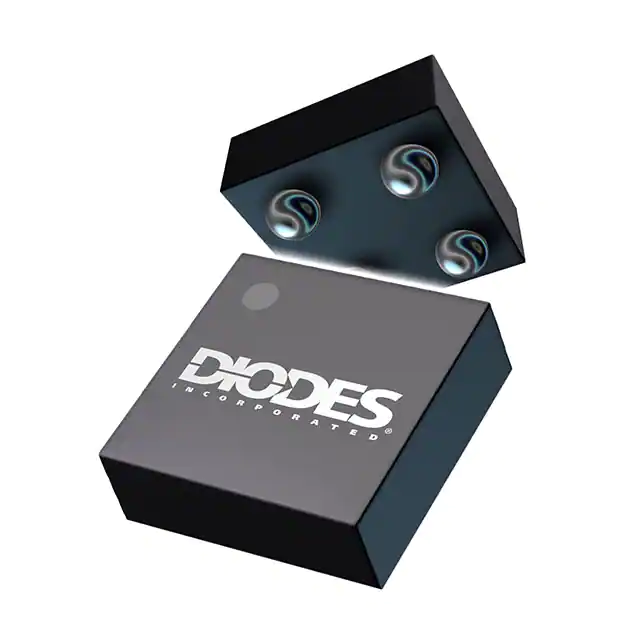

DMN2080UCB4-7MOSFET N-CH 20V 3A X2-WLB0606-4 |
2,305 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3A (Ta) | 1.5V, 4.5V | 56mOhm @ 1A, 4.5V | 1V @ 250µA | 7.4 nC @ 4.5 V | ±8V | 540 pF @ 10 V | - | 710mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2230U-7MOSFET N-CH 20V 2A SOT23-3 |
2,082 | 0.50 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.8V, 4.5V | 110mOhm @ 2.5A, 4.5V | 1V @ 250µA | - | ±12V | 188 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMPH6250SQ-13MOSFET P-CH 60V 2.4A SOT23 T&R |
2,806 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.4A (Ta) | 4.5V, 10V | 155mOhm @ 2A, 10V | 3V @ 250µA | 8.3 nC @ 10 V | ±20V | 512 pF @ 30 V | - | 920mW | -55°C ~ 175°C (TJ) | Surface Mount |
|
DMP3045LVT-7MOSFET BVDSS: 25V~30V TSOT26 T&R |
2,599 | 0.14 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 5.4A (Ta) | 4.5V, 10V | 42mOhm @ 4.9A, 10V | 2.1V @ 250µA | 14.3 nC @ 10 V | ±20V | 749 pF @ 15 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3016LFDFQ-7MOSFET BVDSS: 25V~30V U-DFN2020- |
3,468 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 10A (Ta) | 4.5V, 10V | 12mOhm @ 11A, 10V | 2V @ 250µA | 25.1 nC @ 10 V | ±20V | 1415 pF @ 15 V | - | 730mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2026UVT-7MOSFET N-CH 20V 6.2A TSOT-26 |
3,366 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.2A (Tc) | 2.5V, 4.5V | 24mOhm @ 6.2A, 4.5V | 1.5V @ 250µA | 18.4 nC @ 8 V | ±10V | 887 pF @ 10 V | - | 1.15W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP6350S-13MOSFET P-CH 60V 1.5A SOT23 |
2,837 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.5A (Ta) | 4.5V, 10V | 350mOhm @ 900mA, 10V | 3V @ 250µA | 4.1 nC @ 10 V | ±20V | 206 pF @ 30 V | - | 720mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2015UFDF-13MOSFET N-CH 20V 15.2A 6UDFN |
2,118 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 15.2A (Ta) | 1.5V, 4.5V | 9mOhm @ 8.5A, 4.5V | 1.2V @ 250µA | 42.3 nC @ 10 V | ±12V | 1439 pF @ 10 V | - | 1.8W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN3028L-13MOSFET BVDSS: 25V~30V SOT23 T&R |
2,049 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.2A (Ta) | 2.5V, 10V | 25mOhm @ 4A, 10V | 1.8V @ 250µA | 10.9 nC @ 10 V | ±20V | 680 pF @ 15 V | - | 860mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN1008UFDF-7MOSFET N-CH 12V 12.2A 6UDFN |
2,002 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 12 V | 12.2A (Ta) | 2.5V, 4.5V | 8mOhm @ 5A, 4.5V | 1V @ 250µA | 23.4 nC @ 8 V | ±8V | 995 pF @ 6 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
