| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMN2025UFDF-13MOSFET N-CH 20V 6.5A 6UDFN |
3,223 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.5A (Ta) | 1.8V, 4.5V | 25mOhm @ 4A, 4.5V | 1V @ 250µA | 12.3 nC @ 10 V | ±10V | 486 pF @ 10 V | - | 700mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN62D1LFDQ-7MOSFET N-CH 60V 400MA 3DFN T&R 3 |
2,448 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 400mA (Ta) | 1.5V, 4V | 2Ohm @ 100mA, 4V | 1V @ 250µA | 0.55 nC @ 4.5 V | ±20V | 36 pF @ 25 V | - | 500mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN24H3D6S-7MOSFET BVDSS: 101V-250V SOT23 |
2,572 | 0.11 |
RFQ |
Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
DMN30H4D1S-7MOSFET N-CH 300V 430MA SOT23 |
3,513 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 430mA (Ta) | 4.5V, 10V | 4Ohm @ 300mA, 10V | 3V @ 250µA | 4.8 nC @ 10 V | ±20V | 174 pF @ 25 V | - | 360mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3056L-13MOSFET P-CH 30V 4.3A SOT23 |
3,850 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4.3A (Ta) | 4.5V, 10V | 50mOhm @ 6A, 10V | 2.1V @ 250µA | 11.8 nC @ 10 V | ±25V | 642 pF @ 25 V | - | 1.38W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

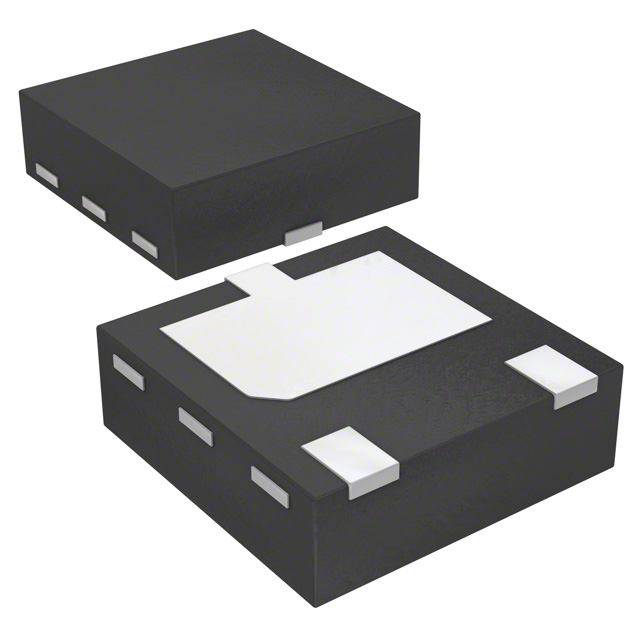

DMP2045UFY4-7MOSFET P-CH 20V 4.7A X2-DFN2015 |
2,711 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4.7A (Ta) | 1.5V, 4.5V | 45mOhm @ 4A, 4.5V | 1V @ 250µA | 6.8 nC @ 4.5 V | ±8V | 634 pF @ 10 V | - | 670mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN10H220LFDF-13MOSFET BVDSS: 61V~100V U-DFN2020 |
3,886 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.2A (Ta) | 4.5V, 10V | 225mOhm @ 2A, 10V | 2.5V @ 250µA | 6.7 nC @ 10 V | ±20V | 384 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN10H220LFDF-7MOSFET BVDSS: 61V~100V U-DFN2020 |
3,420 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 2.2A (Ta) | 4.5V, 10V | 225mOhm @ 2A, 10V | 2.5V @ 250µA | 6.7 nC @ 10 V | ±20V | 384 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

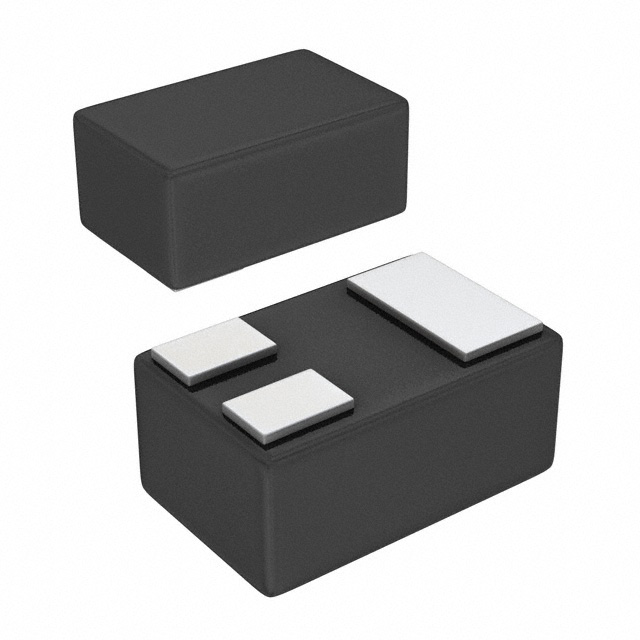

DMP2077UCA3-7MOSFET P-CH 20V 4A X4-DSN1006-3 |
3,442 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 4A (Ta) | 1.5V, 8V | 78mOhm @ 500mA, 8V | 1V @ 250µA | 1.34 nC @ 4.5 V | ±12V | 143 pF @ 10 V | - | 660mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN30H4D0LFDE-13MOSFET N-CH 300V 550MA 6UDFN |
2,951 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 550mA (Ta) | 2.7V, 10V | 4Ohm @ 300mA, 10V | 2.8V @ 250µA | 7.6 nC @ 10 V | ±20V | 187.3 pF @ 25 V | - | 630mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP21D0UFB-7MOSFET P-CH 20V 770MA 3DFN |
2,426 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 770mA (Ta) | 1.8V, 4.5V | 495mOhm @ 400mA, 4.5V | 1V @ 250µA | 1.5 nC @ 8 V | ±8V | 76.5 pF @ 10 V | - | 430mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN2028UVT-13MOSFET N-CH 20V 6.2A TSOT-26 |
3,279 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 6.2A (Ta) | 2.5V, 4.5V | 24mOhm @ 6.2A, 4.5V | 1.5V @ 250µA | 8.3 nC @ 4.5 V | ±8V | 856 pF @ 10 V | - | 1.2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP2040UVT-13MOSFET P-CH 20V TSOT26 |
3,739 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | - | - | - | 5.5A (Ta), 13A (Tc) | - | - | - | - | - | - | - | - | - | - |
|
|
DMP2079LCA3-7MOSFET P-CH 20V 3.4A X4DSN1006-3 |
3,348 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 3.4A (Ta) | 1.8V, 8V | 78mOhm @ 500mA, 8V | 1.2V @ 250µA | 1.1 nC @ 4.5 V | -12V | 152 pF @ 10 V | - | 810mW | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2024UFDF-13MOSFET N-CH 20V 7.1A 6UDFN |
3,580 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 7.1A (Ta) | 1.5V, 4.5V | 22mOhm @ 4A, 4.5V | 1V @ 250µA | 0.9 nC @ 10 V | ±10V | 647 pF @ 10 V | - | 960mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMPH6250S-13MOSFET P-CH 60V 2.4A SOT23 |
3,882 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 2.4A (Ta) | 4.5V, 10V | 155mOhm @ 2A, 10V | 3V @ 250µA | 8.3 nC @ 10 V | ±20V | 512 pF @ 30 V | - | 920mW | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
DMN6075SQ-13MOSFET BVDSS: 41V~60V SOT23 T&R |
3,438 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2A (Ta) | 4.5V, 10V | 85mOhm @ 3.2A, 10V | 3V @ 250µA | 12.3 nC @ 10 V | ±20V | 606 pF @ 20 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMG3407SSN-7MOSFET P-CH 30V 4A SC59 |
3,545 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 4A (Ta) | 4.5V, 10V | 50mOhm @ 4.1A, 10V | 2.1V @ 250µA | 16 nC @ 10 V | ±20V | 700 pF @ 15 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG2307LQ-7MOSFET BVDSS: 25V~30V SOT23 T&R |
3,411 | 0.11 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 2.5A (Ta) | 4.5V, 10V | 90mOhm @ 2.5A, 10V | 3V @ 250µA | 8.2 nC @ 10 V | ±20V | 371.3 pF @ 15 V | - | 760mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN2230UQ-13MOSFET N-CH 20V 2A SOT23 |
3,859 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 2A (Ta) | 1.8V, 4.5V | 110mOhm @ 2.5A, 4.5V | 1V @ 250µA | 2.3 nC @ 10 V | ±12V | 188 pF @ 10 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
