| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IXFR4N100QMOSFET N-CH 1000V 3.5A ISOPLS247 |
2,043 | 10.21 |
RFQ |
Datasheet |
Box | HiPerFET™, Q Class | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 3.5A (Tc) | 10V | 3Ohm @ 2A, 10V | 5V @ 1.5mA | 39 nC @ 10 V | ±20V | 1050 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH20N60MOSFET N-CH 600V 20A TO-247AD |
3,286 | 10.26 |
RFQ |
Datasheet |
Tube | HiPerFET™ | Not For New Designs | N-Channel | MOSFET (Metal Oxide) | 600 V | 20A (Tc) | 10V | 350mOhm @ 10A, 10V | 4.5V @ 4mA | 170 nC @ 10 V | ±20V | 4500 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTH360N055T2MOSFET N-CH 55V 360A TO247 |
3,822 | 10.29 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 360A (Tc) | 10V | 2.4mOhm @ 100A, 10V | 4V @ 250µA | 330 nC @ 10 V | ±20V | 20000 pF @ 25 V | - | 935W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

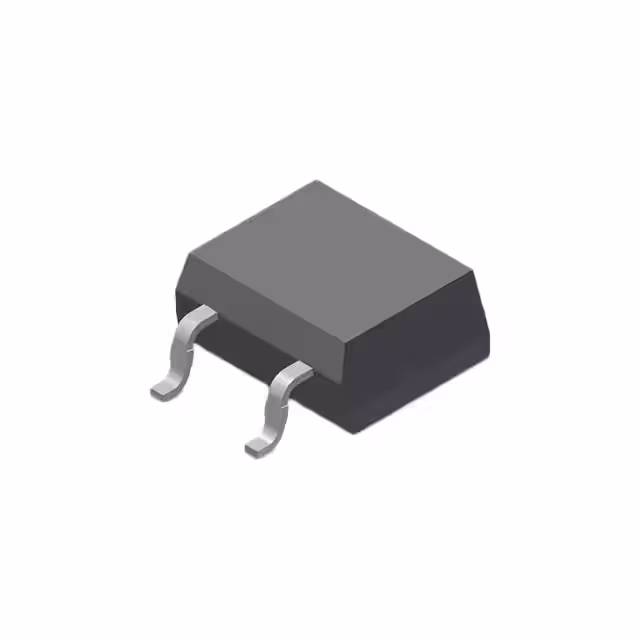

IXFT70N65X3HVMOSFET 70A 650V X3 TO268HV |
3,056 | 10.43 |
RFQ |
Tube | HiPerFET™, Ultra X3 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
IXTK170N10PMOSFET N-CH 100V 170A TO264 |
3,661 | 10.45 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 170A (Tc) | 10V | 9mOhm @ 500mA, 10V | 5V @ 250µA | 198 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 715W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFJ20N85XMOSFET N-CH 850V 9.5A ISO TO247 |
2,050 | 10.56 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 850 V | 9.5A (Tc) | 10V | 360mOhm @ 10A, 10V | 5.5V @ 2.5mA | 63 nC @ 10 V | ±30V | 1660 pF @ 25 V | - | 110W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXKC20N60CMOSFET N-CH 600V 15A ISOPLUS220 |
2,829 | 10.57 |
RFQ |
Datasheet |
Tube | CoolMOS™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 15A (Tc) | 10V | 190mOhm @ 16A, 10V | 3.9V @ 1mA | 114 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | - | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTF200N10TMOSFET N-CH 100V 90A I4PAC |
3,994 | 10.61 |
RFQ |
Datasheet |
Tube | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 90A (Tc) | 10V | 7mOhm @ 50A, 10V | 4.5V @ 250µA | 152 nC @ 10 V | ±30V | 9400 pF @ 25 V | - | 156W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFT20N100PMOSFET N-CH 1000V 20A TO268 |
3,449 | 10.68 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 20A (Tc) | 10V | 570mOhm @ 10A, 10V | 6.5V @ 1mA | 126 nC @ 10 V | ±30V | 7300 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFT36N60PMOSFET N-CH 600V 36A TO268 |
3,548 | 10.73 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 190mOhm @ 18A, 10V | 5V @ 4mA | 102 nC @ 10 V | ±30V | 5800 pF @ 25 V | - | 650W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT69N30PMOSFET N-CH 300V 69A TO268 |
2,336 | 10.76 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 69A (Tc) | 10V | 49mOhm @ 500mA, 10V | 5V @ 250µA | 180 nC @ 10 V | ±20V | 4960 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFT88N30P-TRLMOSFET N-CH 300V 88A TO268 |
2,691 | 10.80 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 88A (Tc) | 10V | 40mOhm @ 44A, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTH2N150DISCMOSFET N-CH STD-HIVOLTAGE TO |
2,448 | 10.81 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 2A (Tc) | 10V | 9.2Ohm @ 500mA, 10V | 5V @ 250µA | 28 nC @ 10 V | ±30V | 830 pF @ 25 V | - | 170W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
IXTQ48N65X2MDISCRETE MOSFET 48A 650V X2 TO3P |
2,169 | 10.83 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 48A (Tc) | 10V | 65mOhm @ 24A, 10V | 5V @ 250µA | 76 nC @ 10 V | ±30V | 4300 pF @ 25 V | - | 70W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
IXTT50P10MOSFET P-CH 100V 50A TO268 |
2,449 | 10.86 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 10V | 55mOhm @ 25A, 10V | 5V @ 250µA | 140 nC @ 10 V | ±20V | 4350 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTH52N65XMOSFET N-CH 650V 52A TO247 |
3,278 | 10.86 |
RFQ |
Datasheet |
Tube | Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 52A (Tc) | 10V | 68mOhm @ 26A, 10V | 5V @ 250µA | 113 nC @ 10 V | ±30V | 4350 pF @ 25 V | - | 660W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFR20N80PMOSFET N-CH 800V 11A ISOPLUS247 |
3,041 | 10.89 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 11A (Tc) | 10V | 500mOhm @ 10A, 10V | 5V @ 4mA | 85 nC @ 10 V | ±30V | 4680 pF @ 25 V | - | 166W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTQ44N50PMOSFET N-CH 500V 44A TO3P |
2,581 | 10.95 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 44A (Tc) | 10V | 140mOhm @ 22A, 10V | 5V @ 250µA | 98 nC @ 10 V | ±30V | 5440 pF @ 25 V | - | 658W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTA30N25L2MOSFET N-CH 250V 30A TO263 |
3,196 | 11.05 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Tc) | 10V | 140mOhm @ 15A, 10V | 4.5V @ 250µA | 130 nC @ 10 V | ±20V | 3200 pF @ 25 V | - | 355W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFT69N30PMOSFET N-CH 300V 69A TO268 |
3,709 | 11.13 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 69A (Tc) | 10V | 49mOhm @ 500mA, 10V | 5V @ 4mA | 180 nC @ 10 V | ±20V | 4960 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
