| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFA90N20X3-TRLMOSFET N-CH 200V 90A TO263 |
3,094 | 6.52 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 90A (Tc) | 10V | 12.8mOhm @ 45A, 10V | 4.5V @ 1.5mA | 78 nC @ 10 V | ±20V | 5420 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXFA72N30X3-TRLMOSFET N-CH 300V 72A TO263 |
3,084 | 6.52 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 72A (Tc) | 10V | 19mOhm @ 36A, 10V | 4.5V @ 1.5mA | 82 nC @ 10 V | ±20V | 5400 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
IXFH96N15PMOSFET N-CH 150V 96A TO247AD |
2,136 | 6.59 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 96A (Tc) | 10V | 24mOhm @ 500mA, 10V | 5V @ 4mA | 110 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFA18N60XMOSFET N-CH 600V 18A TO263AA |
2,737 | 6.61 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 18A (Tc) | 10V | 230mOhm @ 9A, 10V | 4.5V @ 1.5mA | 35 nC @ 10 V | ±30V | 1440 pF @ 25 V | - | 320W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTH22N50PMOSFET N-CH 500V 22A TO247 |
3,397 | 6.61 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 22A (Tc) | 10V | 270mOhm @ 11A, 10V | 5.5V @ 250µA | 50 nC @ 10 V | ±30V | 2630 pF @ 25 V | - | 350W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTH300N04T2MOSFET N-CH 40V 300A TO247 |
3,438 | 6.68 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 300A (Tc) | 10V | 2.5mOhm @ 50A, 10V | 4V @ 250µA | 145 nC @ 10 V | ±20V | 10700 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

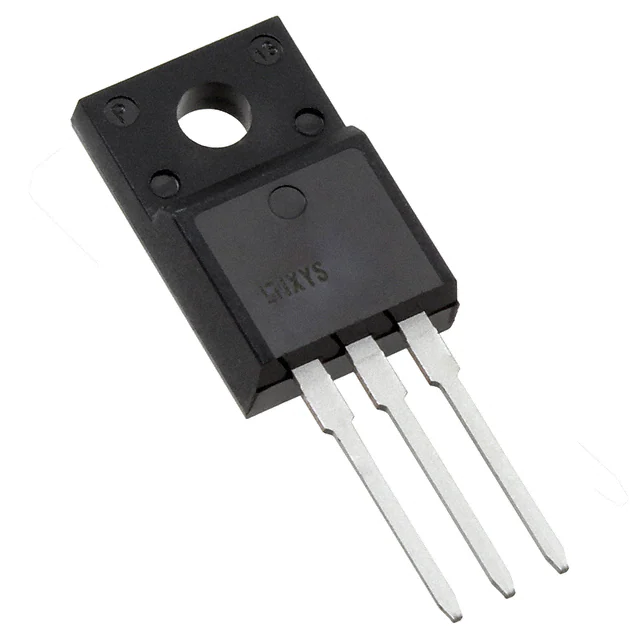

IXFP30N25X3MMOSFET N-CH 250V 30A TO220 |
2,496 | 6.70 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 30A (Tc) | 10V | 60mOhm @ 15A, 10V | 4.5V @ 500µA | 21 nC @ 10 V | ±20V | 1450 pF @ 25 V | - | 36W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFA6N120P-TRLMOSFET N-CH 1200V 6A TO263 |
2,166 | 6.71 |
RFQ |
Datasheet |
Tape & Reel (TR) | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.4Ohm @ 500mA, 10V | 5V @ 1mA | 92 nC @ 10 V | ±30V | 2830 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFT14N80PMOSFET N-CH 800V 14A TO268 |
2,309 | 6.77 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 14A (Tc) | 10V | 720mOhm @ 500mA, 10V | 5.5V @ 4mA | 61 nC @ 10 V | ±30V | 3900 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTP02N50DMOSFET N-CH 500V 200MA TO220AB |
3,428 | 6.77 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 200mA (Tc) | 10V | 30Ohm @ 50mA, 0V | 5V @ 25µA | - | ±20V | 120 pF @ 25 V | Depletion Mode | 1.1W (Ta), 25W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH22N60PMOSFET N-CH 600V 22A TO247AD |
3,280 | 6.87 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 22A (Tc) | 10V | 350mOhm @ 11A, 10V | 5.5V @ 4mA | 58 nC @ 10 V | ±30V | 3600 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFT26N60PMOSFET N-CH 600V 26A TO268 |
2,404 | 6.92 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 26A (Tc) | 10V | 270mOhm @ 500mA, 10V | 5V @ 4mA | 72 nC @ 10 V | ±30V | 4150 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTT34N65X2HVMOSFET N-CH 650V 34A TO268HV |
3,871 | 6.92 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 34A (Tc) | 10V | 96mOhm @ 17A, 10V | 5V @ 250µA | 54 nC @ 10 V | ±30V | 3000 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTH32N65XMOSFET N-CH 650V 32A TO247 |
3,103 | 6.97 |
RFQ |
Datasheet |
Tube | Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 32A (Tc) | 10V | 135mOhm @ 16A, 10V | 5.5V @ 250µA | 54 nC @ 10 V | ±30V | 2205 pF @ 25 V | - | 500W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH16N50P3MOSFET N-CH 500V 16A TO247AD |
3,334 | 7.02 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 10V | 360mOhm @ 8A, 10V | 5V @ 2.5mA | 29 nC @ 10 V | ±30V | 1515 pF @ 25 V | - | 330W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTT64N25PMOSFET N-CH 250V 64A TO268 |
3,379 | 7.09 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 64A (Tc) | 10V | 49mOhm @ 500mA, 10V | 5V @ 250µA | 105 nC @ 10 V | ±20V | 3450 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTT74N20PMOSFET N-CH 200V 74A TO268 |
2,314 | 7.09 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 74A (Tc) | 10V | 34mOhm @ 37A, 10V | 5V @ 250µA | 107 nC @ 10 V | ±20V | 3300 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IXTA90N20X3MOSFET N-CH 200V 90A TO263 |
3,434 | 7.14 |
RFQ |
Tube | Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 90A (Tc) | 10V | 12mOhm @ 45A, 10V | 4.5V @ 250µA | 78 nC @ 10 V | ±20V | 5420 pF @ 25 V | - | 390W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
IXFH110N15T2MOSFET N-CH 150V 110A TO247AD |
2,227 | 7.14 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 110A (Tc) | 10V | 13mOhm @ 500mA, 10V | 4.5V @ 250µA | 150 nC @ 10 V | ±20V | 8600 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXTT110N10PMOSFET N-CH 100V 110A TO268 |
2,156 | 7.37 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 15mOhm @ 500mA, 10V | 5V @ 250µA | 110 nC @ 10 V | ±20V | 3550 pF @ 25 V | - | 480W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
