| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXTA08N100PMOSFET N-CH 1000V 800MA TO263 |
2,735 | 2.60 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 800mA (Tc) | 10V | 20Ohm @ 500mA, 10V | 4V @ 50µA | 11.3 nC @ 10 V | ±20V | 240 pF @ 25 V | - | 42W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTA18P10TMOSFET P-CH 100V 18A TO263 |
3,850 | 2.60 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 18A (Tc) | 10V | 120mOhm @ 9A, 10V | 4.5V @ 250µA | 39 nC @ 10 V | ±15V | 2100 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTA28P065TMOSFET P-CH 65V 28A TO263 |
3,046 | 2.60 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 65 V | 28A (Tc) | 10V | 45mOhm @ 14A, 10V | 4.5V @ 250µA | 46 nC @ 10 V | ±15V | 2030 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFA4N100P-TRLMOSFET N-CH 1000V 4A TO263 |
3,290 | 2.60 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 4A (Tc) | 10V | 3.3Ohm @ 2A, 10V | 6V @ 250µA | 26 nC @ 10 V | ±20V | 1456 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
IXTP42N15TMOSFET N-CH 150V 42A TO220AB |
2,706 | 2.62 |
RFQ |
Datasheet |
Tube | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 42A (Tc) | 10V | 45mOhm @ 500mA, 10V | 4.5V @ 250µA | 21 nC @ 10 V | ±30V | 1880 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXTA42N15T-TRLMOSFET N-CH 150V 42A TO263 |
3,309 | 2.64 |
RFQ |
Tape & Reel (TR) | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 42A (Tc) | 10V | 45mOhm @ 21A, 10V | 4.5V @ 250µA | 21 nC @ 10 V | ±30V | 1880 pF @ 25 V | - | 200W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
IXFA12N50P-TRLMOSFET N-CH 500V 12A TO263 |
2,810 | 2.64 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 12A (Tc) | 10V | 500mOhm @ 6A, 10V | 5.5V @ 1mA | 29 nC @ 10 V | ±30V | 1830 pF @ 25 V | - | 200W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTA3N50D2-TRLMOSFET N-CH 500V 3A TO263 |
3,218 | 2.64 |
RFQ |
Tape & Reel (TR) | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 3A (Tj) | 0V | 1.5Ohm @ 1.5A, 0V | 4.5V @ 250µA | 40 nC @ 5 V | ±20V | 1070 pF @ 25 V | Depletion Mode | 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTP12N65X2MOSFET N-CH 650V 12A TO220 |
2,009 | 2.66 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 300mOhm @ 6A, 10V | 5V @ 250µA | 17 nC @ 10 V | ±30V | 1100 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

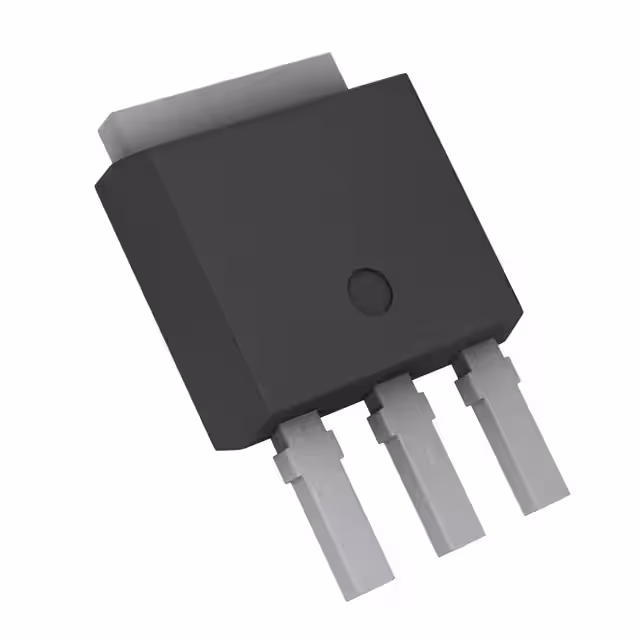

IXTU4N70X2MOSFET N-CH 700V 4A TO251 |
3,914 | 2.67 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 700 V | 4A (Tc) | 10V | 850mOhm @ 2A, 10V | 4.5V @ 250µA | 11.8 nC @ 10 V | ±30V | 386 pF @ 25 V | - | 80W (Tc) | 150°C (TJ) | Through Hole |
|
|
IXTA140N055T2MOSFET N-CH 55V 140A TO263 |
2,576 | 2.69 |
RFQ |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 140A (Tc) | 10V | 5.4mOhm @ 50A, 10V | 4V @ 250µA | 82 nC @ 10 V | ±20V | 4760 pF @ 25 V | - | 250W (Ta) | -55°C ~ 175°C (TJ) | Surface Mount | |
|
|
IXFA12N65X2-TRLMOSFET N-CH 650V 12A TO263 |
3,562 | 2.69 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 310mOhm @ 6A, 10V | 5V @ 250µA | 18.5 nC @ 10 V | ±30V | 1134 pF @ 25 V | - | 180W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
IXTY4N65X2MOSFET N-CH 650V 4A TO252 |
2,848 | 2.71 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 4A (Tc) | 10V | 850mOhm @ 2A, 10V | 5V @ 250µA | 8.3 nC @ 10 V | ±30V | 455 pF @ 25 V | - | 80W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXTP230N04T4MMOSFET N-CH 40V 230A TO220 |
2,537 | 2.76 |
RFQ |
Datasheet |
Tube | Trench | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 230A (Tc) | 10V | 2.9mOhm @ 115A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±15V | 7400 pF @ 25 V | - | 40W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXTA48P05T-TRLMOSFET P-CH 50V 48A TO263 |
3,773 | 2.80 |
RFQ |
Tape & Reel (TR) | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 50 V | 48A (Tc) | 10V | 30mOhm @ 24A, 10V | 4.5V @ 250µA | 53 nC @ 10 V | ±15V | 3660 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTP08N120PMOSFET N-CH 1200V 800MA TO220AB |
3,457 | 2.83 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 800mA (Tc) | 10V | 25Ohm @ 500mA, 10V | 4.5V @ 50µA | 14 nC @ 10 V | ±20V | 333 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFP4N100PMOSFET N-CH 1000V 4A TO220AB |
2,131 | 2.83 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 4A (Tc) | 10V | 3.3Ohm @ 2A, 10V | 5V @ 250µA | 26 nC @ 10 V | ±20V | 1456 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFA10N80P-TRLMOSFET N-CH 800V 10A TO263 |
2,416 | 2.87 |
RFQ |
Tape & Reel (TR) | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 10A (Tc) | 10V | 1.1Ohm @ 5A, 10V | 5.5V @ 2.5mA | 40 nC @ 10 V | ±30V | 2050 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
|
IXTP12N65X2MMOSFET N-CH 650V 12A TO220 |
3,919 | 2.89 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 12A (Tc) | 10V | 300mOhm @ 6A, 10V | 4.5V @ 250µA | 17.7 nC @ 10 V | ±30V | 1100 pF @ 25 V | - | 40W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTP15P15TMOSFET P-CH 150V 15A TO220AB |
2,673 | 2.92 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 150 V | 15A (Tc) | 10V | 240mOhm @ 7A, 10V | 4.5V @ 250µA | 48 nC @ 10 V | ±15V | 3650 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
