| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFT80N65X2HVMOSFET N-CH 650V 80A TO268HV |
210 | 15.75 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 80A (Tc) | 10V | - | 5V @ 4mA | 140 nC @ 10 V | ±30V | 8300 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IXFH100N25PMOSFET N-CH 250V 100A TO247AD |
3,475 | 12.31 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 100A (Tc) | 10V | 27mOhm @ 50A, 10V | 5V @ 4mA | 185 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTH1N170DHVMOSFET N-CH 1700V 1A TO247HV |
3,971 | 16.33 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 1700 V | 1A (Tj) | 0V | 16Ohm @ 500mA, 0V | 4.5V @ 250µA | 47 nC @ 5 V | ±20V | 3090 pF @ 25 V | Depletion Mode | 290W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXTH75N10L2MOSFET N-CH 100V 75A TO247 |
2,645 | 16.55 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 75A (Tc) | 10V | 21mOhm @ 500mA, 10V | 4.5V @ 250µA | 215 nC @ 10 V | ±20V | 8100 pF @ 25 V | - | 400W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFK120N20PMOSFET N-CH 200V 120A TO264AA |
3,815 | 13.21 |
RFQ |
Datasheet |
Bulk | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 120A (Tc) | 10V | 22mOhm @ 500mA, 10V | 5V @ 4mA | 152 nC @ 10 V | ±20V | 6000 pF @ 25 V | - | 714W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFK90N65X3MOSFET 90A 650V X3 TO264K |
2,285 | 17.56 |
RFQ |
Tube | HiPerFET™, Ultra X3 | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
.jpg)
|
IXFX80N60P3MOSFET N-CH 600V 80A PLUS247-3 |
3,370 | 18.06 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 80A (Tc) | 10V | 70mOhm @ 500mA, 10V | 5V @ 8mA | 190 nC @ 10 V | ±30V | 13100 pF @ 25 V | - | 1300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK120N30P3MOSFET N-CH 300V 120A TO264AA |
2,055 | 18.16 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 120A (Tc) | 10V | 27mOhm @ 60A, 10V | 5V @ 4mA | 150 nC @ 10 V | ±20V | 8630 pF @ 25 V | - | 1130W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTP64N10L2MOSFET N-CH 100V 64A TO220AB |
2,797 | 18.21 |
RFQ |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 64A (Tc) | 10V | 32mOhm @ 32A, 10V | 4.5V @ 250µA | 100 nC @ 10 V | ±20V | 3620 pF @ 25 V | - | 357W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
IXTH68P20TMOSFET P-CH 200V 68A TO247 |
3,792 | 18.42 |
RFQ |
Datasheet |
Tube | TrenchP™ | Active | P-Channel | MOSFET (Metal Oxide) | 200 V | 68A (Tc) | 10V | 55mOhm @ 34A, 10V | 4V @ 250µA | 380 nC @ 10 V | ±15V | 33400 pF @ 25 V | - | 568W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
.jpg)
|
IXFR200N10PMOSFET N-CH 100V 133A ISOPLUS247 |
2,055 | 18.58 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 133A (Tc) | 10V | 9mOhm @ 100A, 10V | 5V @ 8mA | 235 nC @ 10 V | ±20V | 7600 pF @ 25 V | - | 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXTH220N20X4MOSFET N-CH 200V 220A X4 TO-247 |
2,407 | 18.68 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 220A (Tc) | 10V | 5.5mOhm @ 110A, 10V | 4.5V @ 250µA | 157 nC @ 10 V | ±20V | 12300 pF @ 25 V | - | 800W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

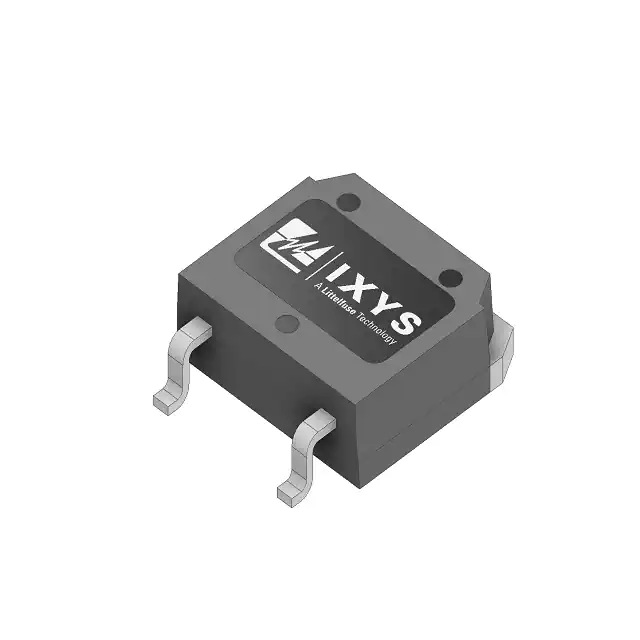

IXTT220N20X4HVMOSFET N-CH 200V 220A X4 TO268HV |
3,870 | 18.88 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 220A (Tc) | 10V | 5.5mOhm @ 110A, 10V | 4.5V @ 250µA | 157 nC @ 10 V | ±20V | 12300 pF @ 25 V | - | 800W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IXTQ30N60L2MOSFET N-CH 600V 30A TO3P |
273 | 18.96 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 30A (Tc) | 10V | 240mOhm @ 15A, 10V | 4.5V @ 250µA | 335 nC @ 10 V | ±20V | 10700 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH150N20TMOSFET N-CH 200V 150A TO247AD |
3,029 | 19.19 |
RFQ |
Datasheet |
Tube | HiPerFET™, Trench | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 150A (Tc) | 10V | 15mOhm @ 75A, 10V | 5V @ 4mA | 177 nC @ 10 V | ±20V | 11700 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH80N65X2-4MOSFET N-CH 650V 80A TO247-4L |
3,870 | 15.94 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 80A (Tc) | 10V | 38mOhm @ 500mA, 10V | 5V @ 4mA | 140 nC @ 10 V | ±30V | 8300 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH110N10L2MOSFET N-CH 100V 110A TO247 |
2,626 | 19.77 |
RFQ |
Datasheet |
Bulk | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 18mOhm @ 500mA, 10V | 4.5V @ 250µA | 260 nC @ 10 V | ±20V | 10500 pF @ 25 V | - | 600W (Tc) | - | Through Hole |
|

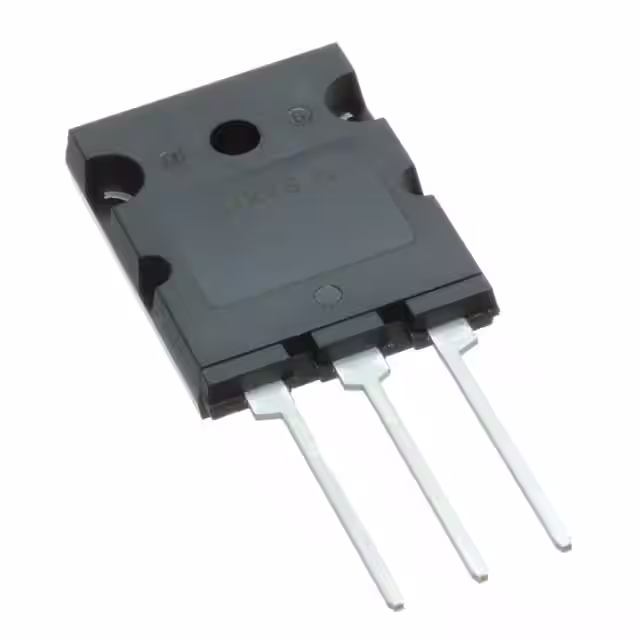

IXTK102N65X2MOSFET N-CH 650V 102A TO264 |
3,040 | 20.12 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 102A (Tc) | 10V | 30mOhm @ 51A, 10V | 5V @ 250µA | 152 nC @ 10 V | ±30V | 10900 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK150N30P3MOSFET N-CH 300V 150A TO264AA |
3,498 | 21.36 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 150A (Tc) | 10V | 19mOhm @ 75A, 10V | 5V @ 8mA | 197 nC @ 10 V | ±20V | 12100 pF @ 25 V | - | 1300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTR102N65X2MOSFET N-CH 650V 54A ISOPLUS247 |
2,580 | 21.86 |
RFQ |
Datasheet |
Tube | Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 54A (Tc) | 10V | 33mOhm @ 51A, 10V | 5V @ 250µA | 152 nC @ 10 V | ±30V | 10900 pF @ 25 V | - | 330W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
