| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IXFT140N10PMOSFET N-CH 100V 140A TO268 |
2,653 | 11.00 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 140A (Tc) | 10V | 11mOhm @ 70A, 10V | 5V @ 4mA | 155 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 600W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IXFH26N65X2IXFH26N65X2 |
2,020 | 11.57 |
RFQ |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 26A (Tc) | 10V | 130mOhm @ 500mA, 10V | 5V @ 2.5mA | 45 nC @ 10 V | ±30V | 2450 pF @ 25 V | - | 460W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
IXTQ150N15PMOSFET N-CH 150V 150A TO3P |
3,530 | 11.76 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 150A (Tc) | 10V | 13mOhm @ 500mA, 10V | 5V @ 250µA | 190 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFH6N120PMOSFET N-CH 1200V 6A TO247AD |
2,278 | 11.77 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 1200 V | 6A (Tc) | 10V | 2.4Ohm @ 500mA, 10V | 5V @ 1mA | 92 nC @ 10 V | ±30V | 2830 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTH94N20X4MOSFET N-CH 200V 94A X4 TO-247 |
3,816 | 11.98 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 94A (Tc) | 10V | 10.6mOhm @ 47A, 10V | 4.5V @ 250µA | 77 nC @ 10 V | ±20V | 5050 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXFA130N15X3MOSFET N-CH 150V 130A TO263AA |
2,282 | 9.65 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 130A (Tc) | 10V | 9mOhm @ 65A, 10V | 4.5V @ 1.5mA | 80 nC @ 10 V | ±20V | 5230 pF @ 25 V | - | 390W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFH94N30P3MOSFET N-CH 300V 94A TO247 |
3,611 | 12.54 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar3™ | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 94A (Tc) | 10V | 36mOhm @ 47A, 10V | 5V @ 4mA | 102 nC @ 10 V | ±20V | 5510 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTP94N20X4MOSFET 200V 94A N-CH ULTRA TO220 |
3,894 | 12.54 |
RFQ |
Datasheet |
Tube | Ultra X4 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 94A (Tc) | 10V | 10.6mOhm @ 47A, 10V | 4.5V @ 250µA | 77 nC @ 10 V | ±20V | 5050 pF @ 25 V | - | 360W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXFH110N25TMOSFET N-CH 250V 110A TO247AD |
3,449 | 9.69 |
RFQ |
Datasheet |
Tube | HiPerFET™, Trench | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 3mA | 157 nC @ 10 V | ±20V | 9400 pF @ 25 V | - | 694W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXTK100N25PMOSFET N-CH 250V 100A TO264 |
3,320 | 12.92 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 100A (Tc) | 10V | 27mOhm @ 500mA, 10V | 5V @ 250µA | 185 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTK150N15PMOSFET N-CH 150V 150A TO264 |
2,928 | 12.92 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 150A (Tc) | 10V | 13mOhm @ 500mA, 10V | 5V @ 250µA | 190 nC @ 10 V | ±20V | 5800 pF @ 25 V | - | 714W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
.jpg)
|
IXTH16N50D2MOSFET N-CH 500V 16A TO247-3 |
2,831 | 12.95 |
RFQ |
Datasheet |
Tube | Depletion | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 16A (Tc) | 0V | 240mOhm @ 8A, 0V | - | 199 nC @ 5 V | ±20V | 5250 pF @ 25 V | Depletion Mode | 695W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH3N150MOSFET N-CH 1500V 3A TO247 |
3,100 | 13.11 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 1500 V | 3A (Tc) | 10V | 7.3Ohm @ 1.5A, 10V | 5V @ 250µA | 38.6 nC @ 10 V | ±30V | 1375 pF @ 25 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTT88N30PMOSFET N-CH 300V 88A TO268 |
3,570 | 13.28 |
RFQ |
Datasheet |
Tube | Polar | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 88A (Tc) | 10V | 40mOhm @ 44A, 10V | 5V @ 250µA | 180 nC @ 10 V | ±20V | 6300 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
.jpg)
|
IXFX360N10TMOSFET N-CH 100V 360A PLUS247-3 |
2,675 | 13.56 |
RFQ |
Datasheet |
Tube | HiPerFET™, Trench | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 360A (Tc) | 10V | 2.9mOhm @ 100A, 10V | 5V @ 3mA | 525 nC @ 10 V | ±20V | 33000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IXTH500N04T2MOSFET N-CH 40V 500A TO247 |
2,247 | 14.88 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 500A (Tc) | 10V | 1.6mOhm @ 100A, 10V | 3.5V @ 250µA | 405 nC @ 10 V | ±20V | 25000 pF @ 25 V | - | 1000W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXTT360N055T2MOSFET N-CH 55V 360A TO268 |
3,927 | 11.89 |
RFQ |
Datasheet |
Tube | TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 55 V | 360A (Tc) | 10V | 2.4mOhm @ 100A, 10V | 4V @ 250µA | 330 nC @ 10 V | ±20V | 20000 pF @ 25 V | - | 935W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|

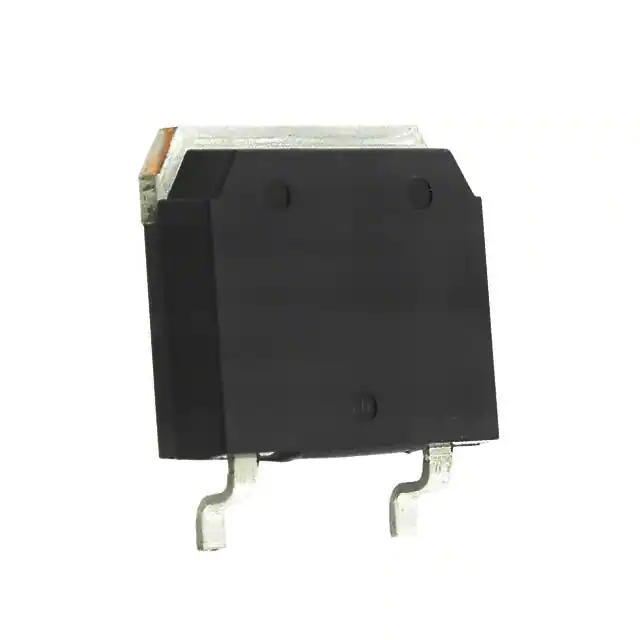

IXTT110N10L2-TRLMOSFET N-CH 100V 110A TO268 |
3,888 | 21.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 110A (Tc) | 10V | 18mOhm @ 55A, 10V | 4.5V @ 250µA | 260 nC @ 10 V | ±20V | 10500 pF @ 25 V | - | 600W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTA02N250HVMOSFET N-CH 2500V 200MA TO263AB |
3,233 | 12.21 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 2500 V | 200mA (Tc) | 10V | 450Ohm @ 50mA, 10V | 4.5V @ 250µA | 7.4 nC @ 10 V | ±20V | 116 pF @ 25 V | - | 83W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFX520N075T2MOSFET N-CH 75V 520A PLUS247-3 |
192 | 15.75 |
RFQ |
Datasheet |
Tube | HiPerFET™, TrenchT2™ | Active | N-Channel | MOSFET (Metal Oxide) | 75 V | 520A (Tc) | 10V | 2.2mOhm @ 100A, 10V | 5V @ 8mA | 545 nC @ 10 V | ±20V | 41000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
