| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
IXFX64N60PMOSFET N-CH 600V 64A PLUS247-3 |
3,542 | 21.86 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 64A (Tc) | 10V | 96mOhm @ 500mA, 10V | 5V @ 8mA | 200 nC @ 10 V | ±30V | 12000 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFH32N100XMOSFET N-CH 1000V 32A TO247 |
3,051 | 21.96 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X | Active | N-Channel | MOSFET (Metal Oxide) | 1000 V | 32A (Tc) | 10V | 220mOhm @ 16A, 10V | 6V @ 4mA | 130 nC @ 10 V | ±30V | 4075 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFH120N15PMOSFET N-CH 150V 120A TO247AD |
2,628 | 9.80 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 120A (Tc) | 10V | 16mOhm @ 500mA, 10V | 5V @ 4mA | 150 nC @ 10 V | ±20V | 4900 pF @ 25 V | - | 600W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IXTK40P50PMOSFET P-CH 500V 40A TO264 |
3,990 | 22.82 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 500 V | 40A (Tc) | 10V | 230mOhm @ 20A, 10V | 4V @ 1mA | 205 nC @ 10 V | ±20V | 11500 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFT150N30X3HVMOSFET N-CH 300V 150A TO268HV |
2,064 | 22.82 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 300 V | 150A (Tc) | 10V | 8.3mOhm @ 75A, 10V | 4.5V @ 4mA | 254 nC @ 10 V | ±20V | 13100 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXFX120N65X2MOSFET N-CH 650V 120A PLUS247-3 |
3,551 | 24.34 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X2 | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 120A (Tc) | 10V | 24mOhm @ 60A, 10V | 5.5V @ 8mA | 225 nC @ 10 V | ±30V | 15500 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IXFN140N20PMOSFET N-CH 200V 115A SOT227B |
2,896 | 27.58 |
RFQ |
Datasheet |
Box | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 115A (Tc) | 10V, 15V | 18mOhm @ 70A, 10V | 5V @ 4mA | 240 nC @ 10 V | ±20V | 7500 pF @ 25 V | - | 680W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
.jpg)
|
IXTH50P10MOSFET P-CH 100V 50A TO247 |
2,349 | 11.48 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 50A (Tc) | 10V | 55mOhm @ 25A, 10V | 5V @ 250µA | 140 nC @ 10 V | ±20V | 4350 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTH10P60MOSFET P-CH 600V 10A TO247 |
2,245 | 11.57 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 600 V | 10A (Tc) | 10V | 1Ohm @ 5A, 10V | 5V @ 250µA | 160 nC @ 10 V | ±20V | 4700 pF @ 25 V | - | 300W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFB60N80PMOSFET N-CH 800V 60A PLUS264 |
2,049 | 28.89 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 60A (Tc) | 10V | 140mOhm @ 30A, 10V | 5V @ 8mA | 250 nC @ 10 V | ±30V | 18000 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFN420N10TMOSFET N-CH 100V 420A SOT227B |
2,508 | 32.85 |
RFQ |
Datasheet |
Tube | HiPerFET™, Trench | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 420A (Tc) | 10V | 2.3mOhm @ 60A, 10V | 5V @ 8mA | 670 nC @ 10 V | ±20V | 47000 pF @ 25 V | - | 1070W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
|

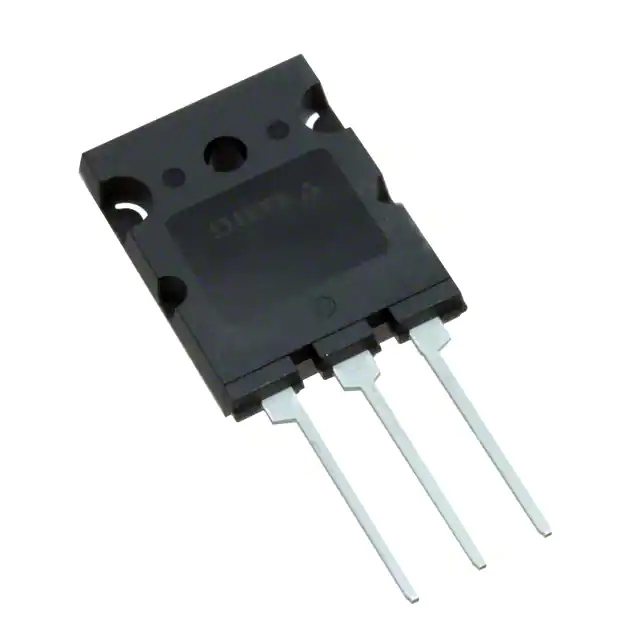

IXFK240N25X3MOSFET N-CH 250V 240A TO264 |
2,051 | 33.68 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 240A (Tc) | 10V | 5mOhm @ 120A, 10V | 4.5V @ 8mA | 345 nC @ 10 V | ±20V | 23800 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFK300N20X3MOSFET N-CH 200V 300A TO264 |
3,308 | 33.68 |
RFQ |
Datasheet |
Tube | HiPerFET™, Ultra X3 | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 300A (Tc) | 10V | 4mOhm @ 150A, 10V | 4.5V @ 8mA | 375 nC @ 10 V | ±20V | 23800 pF @ 25 V | - | 1250W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTX200N10L2MOSFET N-CH 100V 200A PLUS247-3 |
2,024 | 35.39 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 200A (Tc) | 10V | 11mOhm @ 100A, 10V | 4.5V @ 3mA | 540 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXTN40P50PMOSFET P-CH 500V 40A SOT227B |
2,950 | 37.01 |
RFQ |
Datasheet |
Tube | PolarP™ | Active | P-Channel | MOSFET (Metal Oxide) | 500 V | 40A (Tc) | 10V | 230mOhm @ 500mA, 10V | 4V @ 1mA | 205 nC @ 10 V | ±20V | 11500 pF @ 25 V | - | 890W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
|
IXTX110N20L2MOSFET N-CH 200V 110A PLUS247-3 |
2,680 | 37.67 |
RFQ |
Datasheet |
Tube | Linear L2™ | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 110A (Tc) | 10V | 24mOhm @ 55A, 10V | 4.5V @ 3mA | 500 nC @ 10 V | ±20V | 23000 pF @ 25 V | - | 960W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFN100N50PMOSFET N-CH 500V 90A SOT-227B |
2,551 | 38.34 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 90A (Tc) | 10V | 49mOhm @ 50A, 10V | 5V @ 8mA | 240 nC @ 10 V | ±30V | 20000 pF @ 25 V | - | 1040W (Tc) | -55°C ~ 150°C (TJ) | Chassis Mount |
|
IXTT1N300P3HVMOSFET N-CH 3000V 1A TO268 |
2,712 | 39.73 |
RFQ |
Datasheet |
Tube | Polar P3™ | Active | N-Channel | MOSFET (Metal Oxide) | 3000 V | 1A (Tc) | 10V | 50Ohm @ 500mA, 10V | 4V @ 250µA | 30.6 nC @ 10 V | ±20V | 895 pF @ 25 V | - | 195W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IXTK46N50LMOSFET N-CH 500V 46A TO264 |
3,404 | 45.73 |
RFQ |
Datasheet |
Tube | Linear | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 46A (Tc) | 20V | 160mOhm @ 500mA, 20V | 6V @ 250µA | 260 nC @ 15 V | ±30V | 7000 pF @ 25 V | - | 700W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IXFN210N20PMOSFET N-CH 200V 188A SOT-227B |
3,298 | 45.94 |
RFQ |
Datasheet |
Tube | HiPerFET™, Polar | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 188A (Tc) | 10V | 10.5mOhm @ 105A, 10V | 4.5V @ 8mA | 255 nC @ 10 V | ±20V | 18600 pF @ 25 V | - | 1070W (Tc) | -55°C ~ 175°C (TJ) | Chassis Mount |
