| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

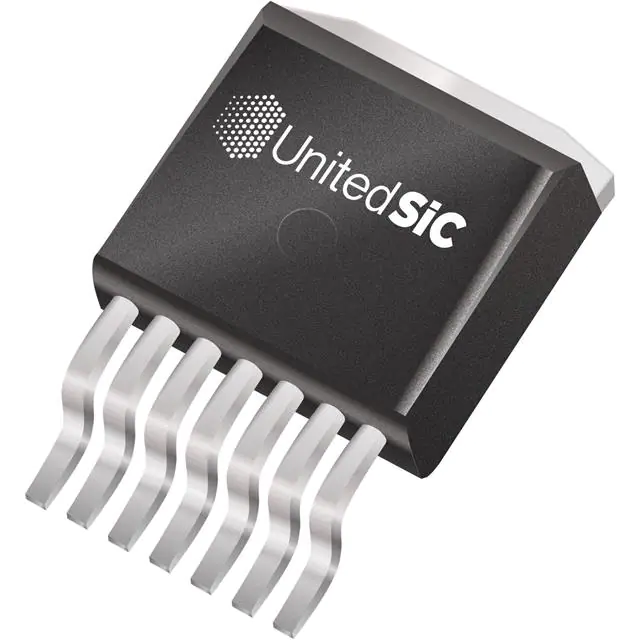

UF3C120150B7S1200V/150MOHM, SIC, FAST CASCODE |
952 | 8.93 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 17A (Tc) | 12V | 180mOhm @ 5A, 12V | 5.5V @ 10mA | 25.7 nC @ 12 V | ±25V | 738 pF @ 100 V | Super Junction | 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
UF3C065080B7SSICFET N-CH 650V 27A D2PAK-7 |
2,870 | 9.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 650 V | 27A (Tc) | - | 105mOhm @ 20A, 12V | 6V @ 10mA | 23 nC @ 12 V | ±25V | 760 pF @ 100 V | - | 136.4W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
UF3C120400K3SSICFET N-CH 1200V 7.6A TO247-3 |
730 | 7.78 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 7.6A (Tc) | 12V | 515mOhm @ 5A, 12V | 6V @ 10mA | 27 nC @ 15 V | ±25V | 740 pF @ 100 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
UF3C065080T3SMOSFET N-CH 650V 31A TO220-3 |
4,957 | 7.92 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | - | 650 V | 31A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UJ3C065080T3SMOSFET N-CH 650V 31A TO220-3 |
738 | 7.92 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | - | 650 V | 31A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UF3C065080K3SMOSFET N-CH 650V 31A TO247-3 |
536 | 8.51 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | - | 650 V | 31A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UF3C120080B7SSICFET P-CH 1200V 28.8A D2PAK-7 |
1,811 | 13.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 28.8A (Tc) | - | 105mOhm @ 20A, 12V | 6V @ 10mA | 23 nC @ 12 V | ±25V | 754 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
UF3C065040B3MOSFET N-CH 650V 41A TO263 |
800 | 13.71 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | - | 650 V | 41A (Tc) | 12V | 52mOhm @ 30A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 176W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
UJ4C075060K3SSICFET N-CH 750V 28A TO247-3 |
6,869 | 10.01 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 750 V | 28A (Tc) | - | 74mOhm @ 20A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1422 pF @ 100 V | - | 155W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UJ3C120150K3SSICFET N-CH 1200V 18.4A TO247-3 |
960 | 10.55 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 18.4A (Tc) | 12V | 180mOhm @ 5A, 12V | 5.5V @ 10mA | 30 nC @ 15 V | ±25V | 738 pF @ 100 V | - | 166.7W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
UJ4C075033K4S750V/33MOHM, SIC, CASCODE, G4, T |
526 | 11.84 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 750 V | 47A (Tc) | 12V | 41mOhm @ 30A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1400 pF @ 400 V | - | 242W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UJ4C075023K3S750V/23MOHM, SIC, CASCODE, G4, T |
442 | 15.55 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Silicon Carbide) | 750 V | 66A (Tc) | 12V | 29mOhm @ 40A, 12V | 6V @ 10mA | 37.8 nC @ 15 V | ±20V | 1400 pF @ 400 V | - | 306W (Tc) | -55°C ~ 175°C | Through Hole |
|
|
UJ3C120070K3SSICFET N-CH 1200V 34.5A TO247-3 |
658 | 15.82 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 34.5A (Tc) | 12V | 90mOhm @ 20A, 12V | 6V @ 10mA | 46 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 254.2W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UF3SC120040B7S1200V/40MOHM, SIC, STACKED FAST |
2,773 | 26.83 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 47A (Tc) | 12V | 45mOhm @ 35A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 214W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
UJ3C065030B3MOSFET N-CH 650V 65A TO263 |
2,948 | 19.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | - | 650 V | 65A (Tc) | 12V | 35mOhm @ 50A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 242W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
UF3C065040K3SMOSFET N-CH 650V 54A TO247-3 |
2,481 | 13.95 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | - | 650 V | 54A (Tc) | 12V | 52mOhm @ 40A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 326W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UF3C065080B3MOSFET N-CH 650V 25A TO263 |
10,312 | 7.92 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | - | 650 V | 25A (Tc) | - | - | - | - | - | - | - | - | - | Surface Mount |
|
|
UJ3C065080K3SMOSFET N-CH 650V 31A TO247-3 |
464 | 8.51 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | - | 650 V | 31A (Tc) | 12V | 111mOhm @ 20A, 12V | 6V @ 10mA | 51 nC @ 15 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UF3C065080K4SMOSFET N-CH 650V 31A TO247-4 |
8,689 | 8.79 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | - | 650 V | 31A (Tc) | 12V | 100mOhm @ 20A, 12V | 6V @ 10mA | 43 nC @ 12 V | ±25V | 1500 pF @ 100 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
UF3C120150K4SSICFET N-CH 1200V 18.4A TO247-4 |
325 | 10.55 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | SiCFET (Cascode SiCJFET) | 1200 V | 18.4A (Tc) | 12V | 180mOhm @ 5A, 12V | 5.5V @ 10mA | 25.7 nC @ 12 V | ±25V | 738 pF @ 100 V | - | 166.7W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
