| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

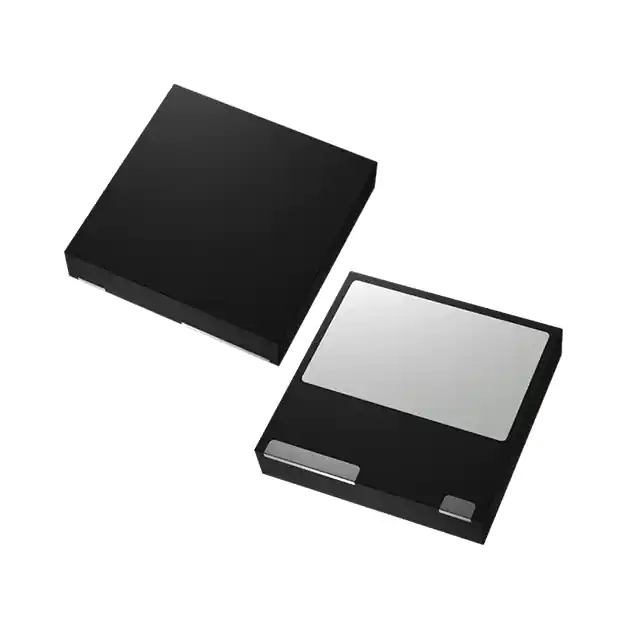

TP65H070LDG-TR650 V 25 A GAN FET |
206 | 12.98 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TP65H070L | Active | N-Channel | GaNFET (Gallium Nitride) | 650 V | 25A (Tc) | 10V | 85mOhm @ 16A, 10V | 4.8V @ 700µA | 9.3 nC @ 10 V | ±20V | 600 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
TP65H035WSGANFET N-CH 650V 46.5A TO247-3 |
2,364 | 21.76 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 650 V | 46.5A (Tc) | 12V | 41mOhm @ 30A, 10V | 4.8V @ 1mA | 36 nC @ 10 V | ±20V | 1500 pF @ 400 V | - | 156W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TP65H050G4BS650 V 34 A GAN FET |
3,693 | 13.65 |
RFQ |
Datasheet |
Tube | SuperGaN® | Active | N-Channel | GaNFET (Gallium Nitride) | 650 V | 34A (Tc) | 10V | 60mOhm @ 22A, 10V | 4.8V @ 700µA | 24 nC @ 10 V | ±20V | 1000 pF @ 400 V | - | 119W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TP65H150G4PSGAN FET N-CH 650V TO-220 |
2,906 | 6.24 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
TPH3206LSGANFET N-CH 600V 17A PQFN |
2,822 | 10.85 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 17A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
TPH3207WSGANFET N-CH 650V 50A TO247-3 |
3,199 | 33.20 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 50A (Tc) | 10V | 41mOhm @ 32A, 8V | 2.65V @ 700µA | 42 nC @ 8 V | ±18V | 2197 pF @ 400 V | - | 178W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
TPH3202PSGANFET N-CH 600V 9A TO220AB |
2,399 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
TPH3202LDGANFET N-CH 600V 9A 4PQFN |
2,666 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
TPH3206LDGANFET N-CH 600V 17A PQFN |
2,131 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 17A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 96W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
TPH3208LDGANFET N-CH 650V 20A 4PQFN |
2,659 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TPH3202PDGANFET N-CH 600V 9A TO220AB |
3,696 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
TPH3202LSGANFET N-CH 600V 9A 3PQFN |
3,534 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 600 V | 9A (Tc) | 10V | 350mOhm @ 5.5A, 8V | 2.5V @ 250µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 65W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
TPH3208PDGANFET N-CH 650V 20A TO220AB |
2,582 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C | Through Hole |
|
|
TPH3208LSGANFET N-CH 650V 20A 3PQFN |
2,309 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 13A, 8V | 2.6V @ 300µA | 14 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TPH3205WSBGANFET N-CH 650V 36A TO247-3 |
2,063 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 36A (Tc) | 10V | 60mOhm @ 22A, 8V | 2.6V @ 700µA | 42 nC @ 8 V | ±18V | 2200 pF @ 400 V | - | 125W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
TPH3206LDGBGANFET N-CH 650V 16A PQFN |
3,175 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 16A (Tc) | 10V | 180mOhm @ 11A, 8V | 2.6V @ 500µA | 9.3 nC @ 4.5 V | ±18V | 760 pF @ 480 V | - | 81W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TPH3212PSGANFET N-CH 650V 27A TO220AB |
2,104 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Cascode Gallium Nitride FET) | 650 V | 27A (Tc) | 10V | 72mOhm @ 17A, 8V | 2.6V @ 400uA | 14 nC @ 8 V | ±18V | 1130 pF @ 400 V | - | 104W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
TPH3206LDBGANFET N-CH 650V 16A PQFN |
3,931 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 16A (Tc) | 10V | 180mOhm @ 10A, 8V | 2.6V @ 500µA | 6.2 nC @ 4.5 V | ±18V | 720 pF @ 480 V | - | 81W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
TPH3206LSBGANFET N-CH 650V 16A PQFN |
2,074 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 16A (Tc) | 10V | 180mOhm @ 10A, 8V | 2.6V @ 500µA | 6.2 nC @ 4.5 V | ±18V | 720 pF @ 480 V | - | 81W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
TPH3208LSGGANFET N-CH 650V 20A 3PQFN |
3,624 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | GaNFET (Gallium Nitride) | 650 V | 20A (Tc) | 10V | 130mOhm @ 14A, 8V | 2.6V @ 300µA | 42 nC @ 8 V | ±18V | 760 pF @ 400 V | - | 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
