| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IRFZ40PBFMOSFET N-CH 60V 50A TO220AB |
200 | 2.91 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 50A (Tc) | 10V | 28mOhm @ 31A, 10V | 4V @ 250µA | 67 nC @ 10 V | ±20V | 1900 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHB23N60E-GE3MOSFET N-CH 600V 23A D2PAK |
3,653 | 4.11 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 23A (Tc) | 10V | 158mOhm @ 12A, 10V | 4V @ 250µA | 95 nC @ 10 V | ±30V | 2418 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHF22N60E-GE3MOSFET N-CH 600V 21A TO220 |
2,535 | 4.23 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 35W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHB22N60E-GE3MOSFET N-CH 600V 21A D2PAK |
3,609 | 4.31 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 21A (Tc) | 10V | 180mOhm @ 11A, 10V | 4V @ 250µA | 86 nC @ 10 V | ±30V | 1920 pF @ 100 V | - | 227W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFP140PBFMOSFET N-CH 100V 31A TO247-3 |
2,509 | 4.34 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 31A (Tc) | 10V | 77mOhm @ 19A, 10V | 4V @ 250µA | 72 nC @ 10 V | ±20V | 1700 pF @ 25 V | - | 180W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP254PBFMOSFET N-CH 250V 23A TO247-3 |
1,620 | 4.42 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 23A (Tc) | 10V | 140mOhm @ 14A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±20V | 2700 pF @ 25 V | - | 190W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SUP70101EL-GE3MOSFET P-CH 100V 120A TO220AB |
2,009 | 3.11 |
RFQ |
Datasheet |
Tube | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 120A (Tc) | 4.5V, 10V | - | 2.5V @ 250µA | 190 nC @ 10 V | ±20V | 7000 pF @ 50 V | - | 375W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHB125N60EF-GE3MOSFET N-CH 600V 25A D2PAK |
3,257 | 4.61 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 125mOhm @ 12A, 10V | 5V @ 250µA | 47 nC @ 10 V | ±30V | 1533 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SIHH27N60EF-T1-GE3MOSFET N-CH 600V 29A PPAK 8 X 8 |
2,299 | 7.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 29A (Tc) | 10V | 100mOhm @ 13.5A, 10V | 4V @ 250µA | 135 nC @ 10 V | ±30V | 2609 pF @ 100 V | - | 202W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFPF40PBFMOSFET N-CH 900V 4.7A TO247-3 |
2,180 | 4.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 900 V | 4.7A (Tc) | 10V | 2.5Ohm @ 2.8A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±20V | 1600 pF @ 25 V | - | 150W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHP17N80E-BE3MOSFET N-CH 800V 15A TO220AB |
2,680 | 5.08 |
RFQ |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 800 V | 15A (Tc) | 10V | 290mOhm @ 8.5A, 10V | 4V @ 250µA | 122 nC @ 10 V | ±30V | 2408 pF @ 100 V | - | 208W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
|
SUP57N20-33-E3MOSFET N-CH 200V 57A TO220AB |
2,432 | 4.90 |
RFQ |
Datasheet |
Tube | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 57A (Tc) | 10V | 33mOhm @ 30A, 10V | 4V @ 250µA | 130 nC @ 10 V | ±20V | 5100 pF @ 25 V | - | 3.75W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRFP048PBFMOSFET N-CH 60V 70A TO247-3 |
3,800 | 4.98 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 70A (Tc) | 10V | 18mOhm @ 44A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 190W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SIHH070N60EF-T1GE3MOSFET N-CH 600V 36A PPAK 8 X 8 |
2,275 | 8.22 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 36A (Tc) | 10V | 71mOhm @ 15A, 10V | 5V @ 250µA | 75 nC @ 10 V | ±30V | 2647 pF @ 100 V | - | 202W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SUP40N25-60-E3MOSFET N-CH 250V 40A TO220AB |
2,159 | 5.28 |
RFQ |
Datasheet |
Tube | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 250 V | 40A (Tc) | 6V, 10V | 60mOhm @ 20A, 10V | 4V @ 250µA | 140 nC @ 10 V | ±30V | 5000 pF @ 25 V | - | 3.75W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|

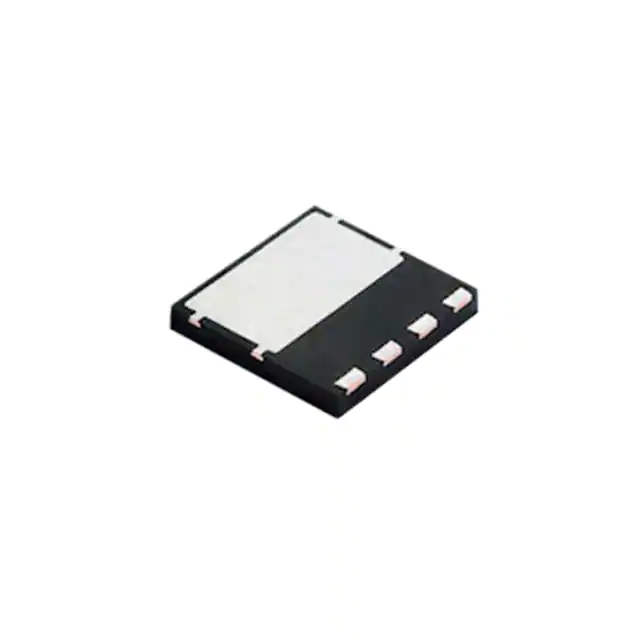

SIHH068N60E-T1-GE3MOSFET N-CH 600V 34A PPAK 8 X 8 |
2,489 | 8.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 34A (Tc) | 10V | 68mOhm @ 15A, 10V | 5V @ 250µA | 80 nC @ 10 V | ±30V | 2650 pF @ 100 V | - | 202W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SUG80050E-GE3MOSFET N-CH 150V 100A TO247AC |
2,496 | 5.39 |
RFQ |
Datasheet |
Tube | ThunderFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 100A (Tc) | 7.5V, 10V | 5.4mOhm @ 20A, 10V | 4V @ 250µA | 165 nC @ 10 V | ±20V | 6250 pF @ 75 V | - | 500W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SIHB120N60E-GE3MOSFET N-CH 600V 25A D2PAK |
3,585 | 5.49 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 25A (Tc) | 10V | 120mOhm @ 12A, 10V | 5V @ 250µA | 45 nC @ 10 V | ±30V | 1562 pF @ 100 V | - | 179W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SUP85N15-21-E3MOSFET N-CH 150V 85A TO220AB |
3,511 | 5.66 |
RFQ |
Datasheet |
Tube | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 85A (Tc) | 10V | 21mOhm @ 30A, 10V | 4V @ 250µA | 110 nC @ 10 V | ±20V | 4750 pF @ 25 V | - | 2.4W (Ta), 300W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
SIHF068N60EF-GE3MOSFET N-CH 600V 16A TO220 |
3,761 | 5.72 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 16A (Tc) | 10V | 68mOhm @ 16A, 10V | 5V @ 250µA | 77 nC @ 10 V | ±30V | 2628 pF @ 100 V | - | 39W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
