| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

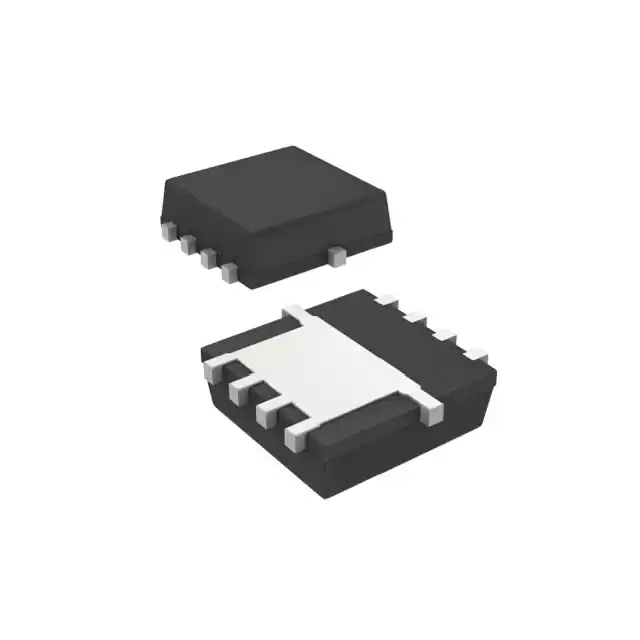

SIDR626LDP-T1-RE3MOSFET N-CH 60V 45.6A/2.4A PPAK |
2,432 | 3.19 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® Gen IV | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 45.6A (Ta), 2.4A (Tc) | 4.5V, 10V | 1.5mOhm @ 20A, 10V | 2.5V @ 250µA | 135 nC @ 10 V | ±20V | 5900 pF @ 30 V | - | 6.25W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
SQM50P03-07_GE3MOSFET P-CHANNEL 30V 50A TO263 |
2,090 | 2.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 50A (Tc) | 4.5V, 10V | 7mOhm @ 30A, 10V | 2.5V @ 250µA | 155 nC @ 10 V | ±20V | 5380 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TA) | Surface Mount |
|
|
SQM40P10-40L_GE3MOSFET P-CH 100V 40A TO263 |
3,220 | 2.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 4.5V, 10V | 40mOhm @ 17A, 10V | 2.5V @ 250µA | 134 nC @ 10 V | ±20V | 5295 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SQM50P04-09L_GE3MOSFET P-CHANNEL 40V 50A TO263 |
3,828 | 2.73 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 50A (Tc) | 4.5V, 10V | 9.4mOhm @ 50A, 10V | 2.5V @ 250µA | 145 nC @ 10 V | ±20V | 6045 pF @ 10 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
.jpg)
|
SIDR622DP-T1-GE3MOSFET N-CH 150V 64.6A PPAK |
3,481 | 3.20 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 64.6A (Ta), 56.7A (Tc) | 7.5V, 10V | 17.7mOhm @ 20A, 10V | 4.5V @ 250µA | 41 nC @ 10 V | ±20V | 1516 pF @ 75 V | - | 6.25W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
SUD19N20-90-E3MOSFET N-CH 200V 19A TO252 |
3,158 | 3.21 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 200 V | 19A (Tc) | 6V, 10V | 90mOhm @ 5A, 10V | 4V @ 250µA | 51 nC @ 10 V | ±20V | 1800 pF @ 25 V | - | 3W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
IRF730PBF-BE3MOSFET N-CH 400V 5.5A TO220AB |
2,681 | 1.64 |
RFQ |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 400 V | 5.5A (Tc) | 10V | 1Ohm @ 3A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 700 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole | |
|
IRFU9310PBFMOSFET P-CH 400V 1.8A TO251AA |
3,310 | 1.65 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 400 V | 1.8A (Tc) | 10V | 7Ohm @ 1.1A, 10V | 4V @ 250µA | 13 nC @ 10 V | ±20V | 270 pF @ 25 V | - | 50W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRF830PBFMOSFET N-CH 500V 4.5A TO220AB |
3,500 | 1.66 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 4.5A (Tc) | 10V | 1.5Ohm @ 2.7A, 10V | 4V @ 250µA | 38 nC @ 10 V | ±20V | 610 pF @ 25 V | - | 74W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SQJQ466E-T1_GE3MOSFET N-CH 60V 200A PPAK 8 X 8 |
2,609 | 2.94 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 200A (Tc) | 10V | 1.9mOhm @ 10A, 10V | 3.5V @ 250µA | 180 nC @ 10 V | ±20V | 10210 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SQJ469EP-T1_GE3MOSFET P-CH 80V 32A PPAK SO-8 |
2,475 | 3.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 80 V | 32A (Tc) | 6V, 10V | 25mOhm @ 10.2A, 10V | 2.5V @ 250µA | 155 nC @ 10 V | ±20V | 5100 pF @ 40 V | - | 100W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
SI7884BDP-T1-E3MOSFET N-CH 40V 58A PPAK SO-8 |
2,737 | 3.06 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 58A (Tc) | 4.5V, 10V | 7.5mOhm @ 16A, 10V | 3V @ 250µA | 77 nC @ 10 V | ±20V | 3540 pF @ 20 V | - | 4.6W (Ta), 46W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRFD9024PBFMOSFET P-CH 60V 1.6A 4DIP |
2,169 | 1.75 |
RFQ |
Datasheet |
Tube | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 1.6A (Ta) | 10V | 280mOhm @ 960mA, 10V | 4V @ 250µA | 19 nC @ 10 V | ±20V | 570 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRF840STRLPBFMOSFET N-CH 500V 8A D2PAK |
2,164 | 2.99 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 3.1W (Ta), 125W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
IRFD024PBFMOSFET N-CH 60V 2.5A 4DIP |
2,264 | 1.78 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 2.5A (Ta) | 10V | 100mOhm @ 1.5A, 10V | 4V @ 250µA | 25 nC @ 10 V | ±20V | 640 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
SQJQ100E-T1_GE3MOSFET N-CH 40V 200A PPAK 8 X 8 |
2,483 | 3.17 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101, TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 40 V | 200A (Tc) | 10V | 1.5mOhm @ 20A, 10V | 3.5V @ 250µA | 165 nC @ 10 V | ±20V | 14780 pF @ 25 V | - | 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SI7738DP-T1-GE3MOSFET N-CH 150V 30A PPAK SO-8 |
3,625 | 3.19 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 150 V | 30A (Tc) | 10V | 38mOhm @ 7.7A, 10V | 4V @ 250µA | 53 nC @ 10 V | ±20V | 2100 pF @ 75 V | - | 5.4W (Ta), 96W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
SUM55P06-19L-E3MOSFET P-CH 60V 55A TO263 |
2,502 | 3.08 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 55A (Tc) | 4.5V, 10V | 19mOhm @ 30A, 10V | 3V @ 250µA | 115 nC @ 10 V | ±20V | 3500 pF @ 25 V | - | 3.75W (Ta), 125W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
IRF9540STRLPBFMOSFET P-CH 100V 19A D2PAK |
3,456 | 3.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 100 V | 19A (Tc) | 10V | 200mOhm @ 11A, 10V | 4V @ 250µA | 61 nC @ 10 V | ±20V | 1400 pF @ 25 V | - | 3.7W (Ta), 150W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
|
|
SUD40N10-25-E3MOSFET N-CH 100V 40A TO252 |
2,034 | 3.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | TrenchFET® | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 40A (Tc) | 10V | 25mOhm @ 40A, 10V | 3V @ 250µA | 60 nC @ 10 V | ±20V | 2400 pF @ 25 V | - | 3W (Ta), 136W (Tc) | -55°C ~ 175°C (TJ) | Surface Mount |
