| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SIHS20N50C-E3MOSFET N-CH 500V 20A SUPER247 |
3,730 | 5.40 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 500 V | 20A (Tc) | 10V | 270mOhm @ 10A, 10V | 5V @ 250µA | 76 nC @ 10 V | ±30V | 2942 pF @ 25 V | - | 250mW (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|

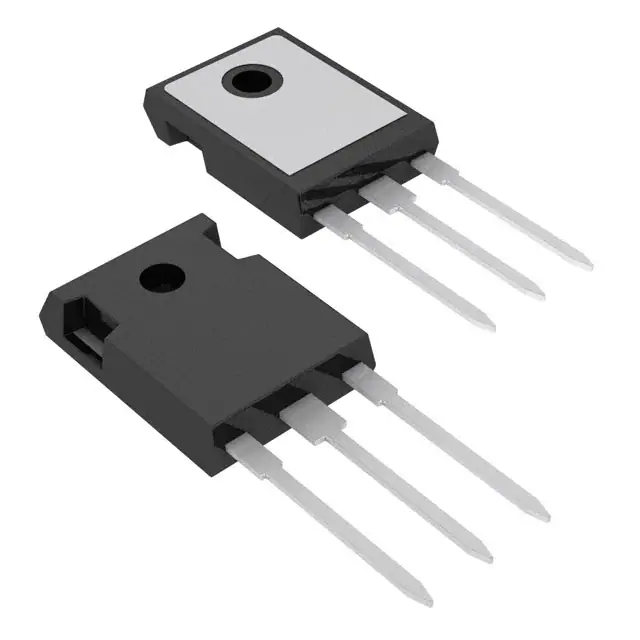

SIHG47N65E-GE3MOSFET N-CH 650V 47A TO247AC |
3,877 | 5.52 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 47A (Tc) | 10V | 72mOhm @ 24A, 10V | 4V @ 250µA | 273 nC @ 10 V | ±30V | 5682 pF @ 100 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHB30N60AEL-GE3MOSFET N-CH 600V 28A TO263 |
3,006 | 5.95 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | EL | Obsolete | N-Channel | MOSFET (Metal Oxide) | 600 V | 28A (Tc) | 10V | 120mOhm @ 15A, 10V | 4V @ 250µA | 120 nC @ 10 V | ±30V | 2565 pF @ 100 V | - | 250W (Tc) | -55°C ~ 150°C (TJ) | Surface Mount | |
|
SIHP050N60E-GE3MOSFET N-CH 600V 51A TO220AB |
3,460 | 6.14 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 51A (Tc) | 10V | 50mOhm @ 23A, 10V | 5V @ 250µA | 130 nC @ 10 V | ±30V | 3459 pF @ 100 V | - | 278W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHW47N60EF-GE3MOSFET N-CH 600V 47A TO247AD |
2,214 | 6.79 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 47A (Tc) | 10V | 65mOhm @ 24A, 10V | 4V @ 250µA | 225 nC @ 10 V | ±30V | 4854 pF @ 100 V | - | 379W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHW73N60E-GE3MOSFET N-CH 600V 73A TO247AD |
2,143 | 6.96 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 73A (Tc) | 10V | 39mOhm @ 36A, 10V | 4V @ 250µA | 362 nC @ 10 V | ±20V | 7700 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG70N60AEF-GE3MOSFET N-CH 600V 60A TO247AC |
2,923 | 8.34 |
RFQ |
Datasheet |
Tube | EF | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 60A (Tc) | 10V | 41mOhm @ 35A, 10V | 4V @ 250µA | 410 nC @ 10 V | ±20V | 5348 pF @ 100 V | - | 417W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHW70N60EF-GE3MOSFET N-CH 600V 70A TO247AD |
2,912 | 8.97 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 70A (Tc) | 10V | 38mOhm @ 35A, 10V | 4V @ 250µA | 380 nC @ 10 V | ±30V | 7500 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG73N60E-E3MOSFET N-CH 600V 73A TO247AC |
2,708 | 9.47 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 73A (Tc) | 10V | 39mOhm @ 36A, 10V | 4V @ 250µA | 362 nC @ 10 V | ±30V | 7700 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG70N60EF-GE3MOSFET N-CH 600V 70A TO247AC |
2,725 | 9.57 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 600 V | 70A (Tc) | 10V | 38mOhm @ 35A, 10V | 4V @ 250µA | 380 nC @ 10 V | ±30V | 7500 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHG64N65E-GE3MOSFET N-CH 650V 64A TO247AC |
3,640 | 9.98 |
RFQ |
Datasheet |
Tube | - | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 64A (Tc) | 10V | 47mOhm @ 32A, 10V | 4V @ 250µA | 369 nC @ 10 V | ±30V | 7497 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
SIHG61N65EF-GE3MOSFET N-CH 650V 64A TO247AC |
2,843 | 10.07 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 64A (Tc) | 10V | 47mOhm @ 30.5A, 10V | 4V @ 250µA | 371 nC @ 10 V | ±30V | 7407 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
SIHW61N65EF-GE3MOSFET N-CH 650V 64A TO247AD |
2,737 | 10.07 |
RFQ |
Datasheet |
Tube | E | Active | N-Channel | MOSFET (Metal Oxide) | 650 V | 64A (Tc) | 10V | 47mOhm @ 30.5A, 10V | 4V @ 250µA | 371 nC @ 10 V | ±30V | 7407 pF @ 100 V | - | 520W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
IRFPS43N50KPBFMOSFET N-CH 500V 47A SUPER247 |
3,924 | 11.93 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 47A (Tc) | 10V | 90mOhm @ 28A, 10V | 5V @ 250µA | 350 nC @ 10 V | ±30V | 8310 pF @ 25 V | - | 540W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
2N7002E-T1-E3MOSFET N-CH 60V 240MA SOT23-3 |
2,371 | 0.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 240mA (Ta) | 4.5V, 10V | 3Ohm @ 250mA, 10V | 2.5V @ 250µA | 0.6 nC @ 4.5 V | ±20V | 21 pF @ 5 V | - | 350mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
IRF510MOSFET N-CH 100V 5.6A TO220AB |
2,860 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 5.6A (Tc) | 10V | 540mOhm @ 3.4A, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
|
IRF9510MOSFET P-CH 100V 4A TO220AB |
2,741 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 100 V | 4A (Tc) | 10V | 1.2Ohm @ 2.4A, 10V | 4V @ 250µA | 8.7 nC @ 10 V | ±20V | 200 pF @ 25 V | - | 43W (Tc) | -55°C ~ 175°C (TJ) | Through Hole |
|
IRFD9220MOSFET P-CH 200V 560MA 4DIP |
3,127 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | P-Channel | MOSFET (Metal Oxide) | 200 V | 560mA (Ta) | 10V | 1.5Ohm @ 340mA, 10V | 4V @ 250µA | 15 nC @ 10 V | ±20V | 340 pF @ 25 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRF840MOSFET N-CH 500V 8A TO220AB |
3,411 | 0.00 |
RFQ |
Datasheet |
Tube | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 500 V | 8A (Tc) | 10V | 850mOhm @ 4.8A, 10V | 4V @ 250µA | 63 nC @ 10 V | ±20V | 1300 pF @ 25 V | - | 125W (Tc) | -55°C ~ 150°C (TJ) | Through Hole |
|
|
IRFD110MOSFET N-CH 100V 1A 4DIP |
3,676 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | N-Channel | MOSFET (Metal Oxide) | 100 V | 1A (Ta) | 10V | 540mOhm @ 600mA, 10V | 4V @ 250µA | 8.3 nC @ 10 V | ±20V | 180 pF @ 25 V | - | 1.3W (Ta) | -55°C ~ 175°C (TJ) | Through Hole |
