| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | Resistor-Base(R1) | Resistor-EmitterBase(R2) | DCCurrentGain(hFE)(Min)@IcVce | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | Frequency-Transition | Power-Max | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

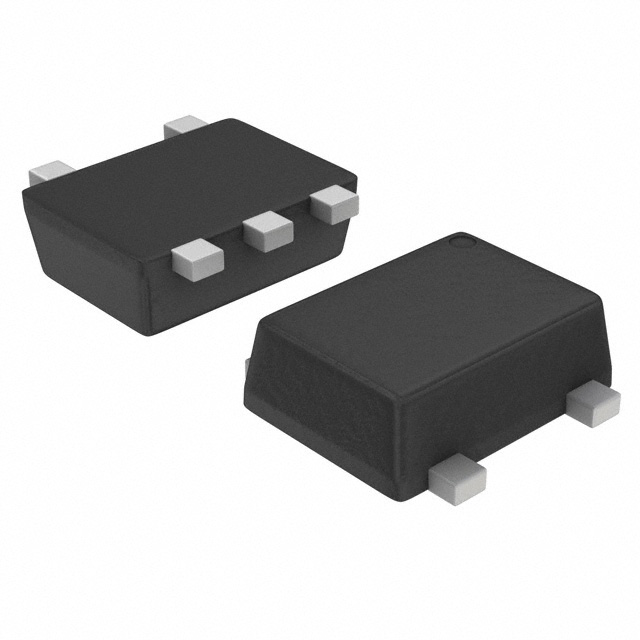

RN2903FE(TE85L,F)TRANS 2PNP PREBIAS 0.1W ES6 |
2,419 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 100mW | Surface Mount |
|
RN1706,LFNPNX2 BRT Q1BSR4.7KOHM Q1BER47KO |
3,278 | 0.31 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | Surface Mount |
|
RN4990(TE85L,F)NPN + PNP BRT Q1BSR=4.7KOHM Q1BE |
3,135 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz, 200MHz | 200mW | Surface Mount |
|
RN1964TE85LFTRANS 2NPN PREBIAS 0.2W US6 |
3,788 | 0.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 200mW | Surface Mount |
|
|
RN2911FE(TE85L,F)TRANS 2PNP PREBIAS 0.1W ES6 |
3,427 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 100mW | Surface Mount |
|
|
RN1909FE(TE85L,F)TRANS 2NPN PREBIAS 0.1W ES6 |
3,769 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | Surface Mount |
|
RN1507(TE85L,F)TRANS 2NPN PREBIAS 0.3W SMV |
2,563 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 300mW | Surface Mount |
|
|
RN2901FE(TE85L,F)TRANS 2PNP PREBIAS 0.1W ES6 |
3,510 | 0.36 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 100mW | Surface Mount |
|
|
RN1906,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYM) NP |
2,977 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | Surface Mount | |
|
|
RN1907,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYM) NP |
3,357 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | Surface Mount | |
|
|
RN1901,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYM) NP |
3,851 | 0.37 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | Surface Mount | |
|
|
RN4982FE,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYMMETR |
2,240 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz, 200MHz | 100mW | Surface Mount |
|
|
RN4984FE,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYMMETR |
3,132 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz, 200MHz | 100mW | Surface Mount |
|
RN1708JE(TE85L,F)NPN X 2 BRT Q1BSR=22KOHM Q1BER=4 |
3,048 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 100mW | Surface Mount |
|
|
RN1710JE(TE85L,F)NPN X 2 BRT Q1BSR=4.7KOHM Q1BER= |
3,744 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 4.7kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | Surface Mount |
|
|
RN1709JE(TE85L,F)NPN X 2 BRT Q1BSR=47KOHM Q1BER=2 |
3,578 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 100mW | Surface Mount |
|
|
RN1707JE(TE85L,F)NPN X 2 BRT Q1BSR=10KOHM Q1BER=4 |
3,547 | 0.41 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) (Emitter Coupled) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 100mW | Surface Mount |
|
|
RN4902FE,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYMMETR |
3,888 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 10kOhms | 50 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz, 250MHz | 100mW | Surface Mount |
|
|
RN2906,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYM) PN |
2,980 | 0.46 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount | |
|
|
RN4987,LXHF(CTAUTO AEC-Q 2-IN-1 (POINT-SYM) NP |
3,912 | 0.46 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz, 200MHz | 200mW | Surface Mount |
