| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | TransistorType | Current-Collector(Ic)(Max) | Voltage-CollectorEmitterBreakdown(Max) | Resistor-Base(R1) | Resistor-EmitterBase(R2) | DCCurrentGain(hFE)(Min)@IcVce | VceSaturation(Max)@IbIc | Current-CollectorCutoff(Max) | Frequency-Transition | Power-Max | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

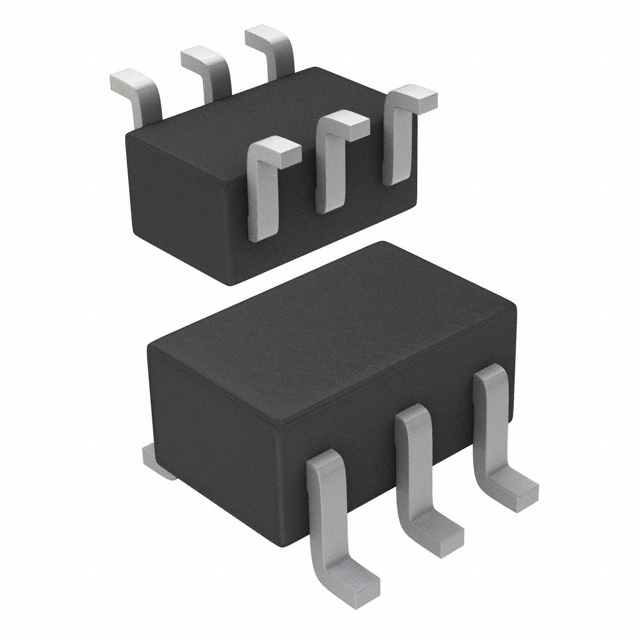

RN1911,LF(CTNPNX2 BRT Q1BSR10KOHM Q1BERINF.K |
2,743 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | Surface Mount |
|
|
RN2909,LF(CTPNPX2 BRT Q1BSR47KOHM Q1BER22KOH |
3,591 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
RN2910,LF(CTPNPX2 BRT Q1BSR4.7KOHM Q1BERINF. |
3,727 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz | 200mW | Surface Mount |
|
|
RN4903,LF(CTPNP + NPN BRT Q1BSR22KOHM Q1BER2 |
3,864 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz, 250MHz | 200mW | Surface Mount |
|
|
RN4908,LF(CTPNP + NPN BRT Q1BSR10KOHM Q1BER4 |
2,136 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz, 250MHz | 200mW | Surface Mount |
|
|
RN4909,LF(CTPNP + NPN BRT Q1BSR22KOHM Q1BER4 |
3,090 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz, 250MHz | 200mW | Surface Mount |
|
RN4911,LF(CTPNP + NPN BRT Q1BSR4.7KOHM Q1BER |
3,041 | 0.05 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 200MHz, 250MHz | 100mW | Surface Mount | |
|
|
RN2908,LF(CTPNPX2 BRT Q1BSR22KOHM Q1BER47KOH |
3,936 | 0.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
|
RN1966FE(TE85L,F)TRANS 2NPN PREBIAS 0.1W ES6 |
2,558 | 0.38 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Obsolete | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 100mW | Surface Mount |
|
RN1709,LFNPNX2 BRT Q1BSR47KOHM Q1BER22KOH |
3,953 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | Surface Mount |
|
|
RN1710,LFNPNX2 BRT Q1BSR4.7KOHM Q1BERINF. |
2,388 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 200mW | Surface Mount |
|
|
RN1711,LFNPNX2 BRT Q1BSR10KOHM Q1BERINF.K |
2,080 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100nA (ICBO) | 250MHz | 200mW | Surface Mount |
|
|
RN2701,LFPNPX2 BRT Q1BSR4.7KOHM Q1BER4.7K |
3,236 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 4.7kOhms | 4.7kOhms | 30 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
|
RN2703,LFPNPX2 BRT Q1BSR22KOHM Q1BER22KOH |
3,941 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
|
RN2704,LFPNPX2 BRT Q1BSR22KOHM Q1BER22KOH |
3,998 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
|
RN2708,LFPNPX2 BRT Q1BSR10KOHM Q1BER47KOH |
2,167 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 22kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
|
RN2709,LFPNPX2 BRT Q1BSR22KOHM Q1BER47KOH |
2,840 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 22kOhms | 70 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
|
|
RN4991(T5L,F,T)TRANS NPN/PNP PREBIAS 0.2W US6 |
3,701 | 0.05 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 NPN, 1 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | - | 120 @ 1mA, 5V | 300mV @ 250µA, 5mA | 100µA (ICBO) | 250MHz, 200MHz | 200mW | Surface Mount |
|
|
RN1704,LFNPNX2 BRT Q1BSR47KOHM Q1BER47KOH |
3,984 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 NPN - Pre-Biased (Dual) | 100mA | 50V | 47kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 250MHz | 200mW | Surface Mount |
|
|
RN2707,LFPNPX2 BRT Q1BSR10KOHM Q1BER47KOH |
2,819 | 0.29 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 PNP - Pre-Biased (Dual) | 100mA | 50V | 10kOhms | 47kOhms | 80 @ 10mA, 5V | 300mV @ 250µA, 5mA | 500nA | 200MHz | 200mW | Surface Mount |
