| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CLB40I1200PZ-TUBSCR 1.2KV 63A TO263 |
2,242 | 3.39 |
RFQ |
Datasheet |
Tube | CLB40I1200PZ | Active | 1.2 kV | 1.7 V | 30 mA | 1.3 V | 40 A | 63 A | 70 mA | - | 520A, 560A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
CLE30E1200PBSCR 1.2KV 35A TO220 |
2,970 | 3.45 |
RFQ |
Datasheet |
Tube | CLE30E1200PB | Active | 1.2 kV | 1.4 V | 30 mA | 1.34 V | 30 A | 35 A | 60 mA | - | 350A, 380A | Standard Recovery | -55°C ~ 150°C (TJ) | Through Hole |
|
CLB30I1200HBSCR 1.2KV 47A TO247 |
3,710 | 3.69 |
RFQ |
Datasheet |
Tube | CLB30I1200HB | Active | 1.2 kV | 1.3 V | 28 mA | 1.28 V | 30 A | 47 A | 60 mA | - | 300A, 325A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|
CME30E1600PZ-TUBSCR 1.6KV 35A TO263 |
3,997 | 4.45 |
RFQ |
Datasheet |
Tube | CME30E1600PZ | Active | 1.6 kV | 1.3 V | 50 mA | 1.92 V | 30 A | 35 A | 90 mA | - | 260A, 280A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
CMA50E1600TZ-TRLSCR 1.6KV 79A TO268AA |
2,479 | 5.26 |
RFQ |
Datasheet |
Tape & Reel (TR) | CMA50E1600TZ | Active | 1.6 kV | 1.5 V | 50 mA | 1.3 V | 50 A | 79 A | 100 mA | - | 550A, 595A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
CMA50E1600QBSCR 1.6KV 79A TO3P |
3,998 | 5.41 |
RFQ |
Datasheet |
Tube | CMA50E1600QB | Active | 1.6 kV | 1.5 V | 50 mA | 1.3 V | 50 A | 79 A | 100 mA | - | 550A, 595A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
CLA50E1200TC-TUBSCR 1.2KV 80A TO268AA |
2,555 | 5.44 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | 50 A | 80 A | 75 mA | 50 µA | 550A, 590A | Standard Recovery | -40°C ~ 150°C | Surface Mount |
|
|
CMA50E1600TZ-TUBSCR 1.6KV 79A TO268AA |
2,827 | 5.97 |
RFQ |
Datasheet |
Tube | CMA50E1600TZ | Active | 1.6 kV | 1.5 V | 50 mA | 1.3 V | 50 A | 79 A | 100 mA | - | 550A, 595A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
CMA80E1400HBTHYRISTOR - TO247 |
3,436 | 6.08 |
RFQ |
Tube | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CLE40E1200HBSCR 1.2KV 63A TO247 |
2,697 | 6.16 |
RFQ |
Datasheet |
Tube | CLE40E1200HB | Active | 1.2 kV | 1.5 V | 50 mA | 1.47 V | 40 A | 63 A | 120 mA | - | 600A, 650A | Standard Recovery | -55°C ~ 150°C (TJ) | Through Hole |
|
CS30-14IO1SCR 1.4KV 49A TO247AD |
3,179 | 6.26 |
RFQ |
Datasheet |
Tube | - | Active | 1.4 kV | 1 V | 55 mA | 1.63 V | 30 A | 49 A | 100 mA | 50 µA | 400A, 430A | Standard Recovery | -40°C ~ 150°C | Through Hole |
|
|
CLA100E1200KBSCR 1.2KV 160A TO264 |
3,804 | 6.57 |
RFQ |
Datasheet |
Tube | CLA100E1200KB | Active | 1.2 kV | 1.5 V | 40 mA | 1.37 V | 100 A | 160 A | 100 mA | - | 1100A, 11900A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|

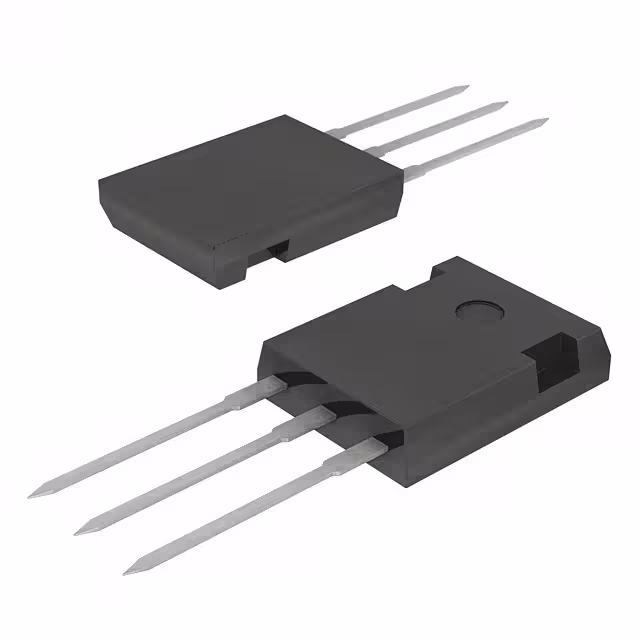

CLA40E1200NHBTHYRISTOR - TO247 |
2,008 | 7.39 |
RFQ |
Tube | - | Active | 1.2 kV | 1.7 V | 35 mA | 1.55 V | 40 A | 63 A | 70 mA | 10 µA | 520A, 560A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole | |
.jpg)
|
CS60-12IO1SCR 1.2KV 75A PLUS247-3 |
3,496 | 9.69 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 100 mA | 1.4 V | 48 A | 75 A | 200 mA | 10 mA | 1500A, 1600A | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
|
CS60-14IO1SCR 1.4KV 75A PLUS247-3 |
2,018 | 10.15 |
RFQ |
Datasheet |
Tube | - | Active | 1.4 kV | 1.5 V | 100 mA | 1.4 V | 48 A | 75 A | 200 mA | 10 mA | 1500A, 1600A | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
|
CS60-16IO1RSCR 1.6KV 75A PLUS247-3 |
2,584 | 10.54 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 1.5 V | 100 mA | 1.4 V | 48 A | 75 A | 200 mA | 10 mA | 1500A, 1600A | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
|
CS1710SCR 2200V |
2,406 | 16.11 |
RFQ |
Bag | - | Active | - | - | - | - | - | - | - | - | - | Standard Recovery | - | - | |
|
|
CNE60E2200TZ-TUBSCR 2.2KV 94A TO268AA |
2,498 | 29.50 |
RFQ |
Datasheet |
Tube | CNE60E2200TZ | Active | 2.2 kV | 1.4 V | 80 mA | 2.52 V | 60 A | 94 A | 100 mA | - | 720A, 780A | Standard Recovery | -40°C ~ 150°C (TJ) | Surface Mount |
|
|
CNA30E2200FBSCR 2.2KV 47A I4-PAC |
3,307 | 30.22 |
RFQ |
Datasheet |
Tube | CNA30E2200FB | Active | 2.2 kV | 2.5 V | 250 mA | 3 V | 30 A | 47 A | 300 mA | 50 µA | 200A | Standard Recovery | -10°C ~ 70°C (TJ) | Through Hole |
|
|
P0327WC12ESCR 1.2KV 670A W8 |
2,988 | 118.05 |
RFQ |
Box | - | Not For New Designs | 1.2 kV | 3 V | 200 mA | 2.17 V | 330 A | 670 A | 600 mA | 30 mA | 3575A @ 50Hz | Standard Recovery | -40°C ~ 125°C | Chassis Mount |
