| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Voltage-OffState | Voltage-GateTrigger(Vgt)(Max) | Current-GateTrigger(Igt)(Max) | Voltage-OnState(Vtm)(Max) | Current-OnState(It(AV))(Max) | Current-OnState(It(RMS))(Max) | Current-Hold(Ih)(Max) | Current-OffState(Max) | Current-NonRepSurge5060Hz(Itsm) | SCRType | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
CLA50E1200HBSCR 1.2KV 79A TO247AD |
2,201 | 5.70 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 50 mA | 1.6 V | 50 A | 79 A | 75 mA | 50 µA | 550A, 590A | Standard Recovery | -40°C ~ 150°C | Through Hole |
|
CS30-12IO1SCR 1.2KV 49A TO247AD |
2,149 | 5.98 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1 V | 55 mA | 1.63 V | 30 A | 49 A | 100 mA | 50 µA | 400A, 430A | Standard Recovery | -40°C ~ 150°C | Through Hole |
|
|
CS20-14IO1SCR 1.4KV 30A TO247AD |
2,145 | 5.98 |
RFQ |
Datasheet |
Tube | - | Active | 1.4 kV | 1 V | 65 mA | 2.1 V | 19 A | 30 A | 100 mA | 2 mA | 200A, 215A | Standard Recovery | -40°C ~ 125°C | Through Hole |
|
|
CS45-08IO1SCR 800V 75A TO247AD |
2,275 | 6.01 |
RFQ |
Datasheet |
Tube | - | Active | 800 V | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
|
CS20-16IO1SCR 1.6KV 30A TO247AD |
2,943 | 6.23 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 1 V | 65 mA | 2.1 V | 19 A | 30 A | 100 mA | 2 mA | 200A, 215A | Standard Recovery | -40°C ~ 125°C | Through Hole |
.jpg)
|
CS45-12IO1SCR 1.2KV 75A PLUS247-3 |
3,890 | 6.30 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
CLA100E1200HBSCR 1.2KV 160A TO247 |
2,467 | 6.45 |
RFQ |
Datasheet |
Tube | CLA100E1200HB | Active | 1.2 kV | 1.5 V | 40 mA | 1.37 V | 100 A | 160 A | 100 mA | - | 1100A, 11900A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|
CS30-16IO1SCR 1.6KV 49A TO247AD |
2,619 | 6.54 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 1 V | 55 mA | 1.63 V | 30 A | 49 A | 100 mA | 50 µA | 400A, 430A | Standard Recovery | -40°C ~ 150°C | Through Hole |
.jpg)
|
CLA80E1200HFSCR 1.2KV 126A PLUS247-3 |
3,425 | 6.64 |
RFQ |
Datasheet |
Tube | - | Active | 1.2 kV | 1.5 V | 38 mA | 1.77 V | 80 A | 126 A | 100 mA | 50 µA | 900A, 970A | Standard Recovery | -40°C ~ 150°C | Through Hole |
|

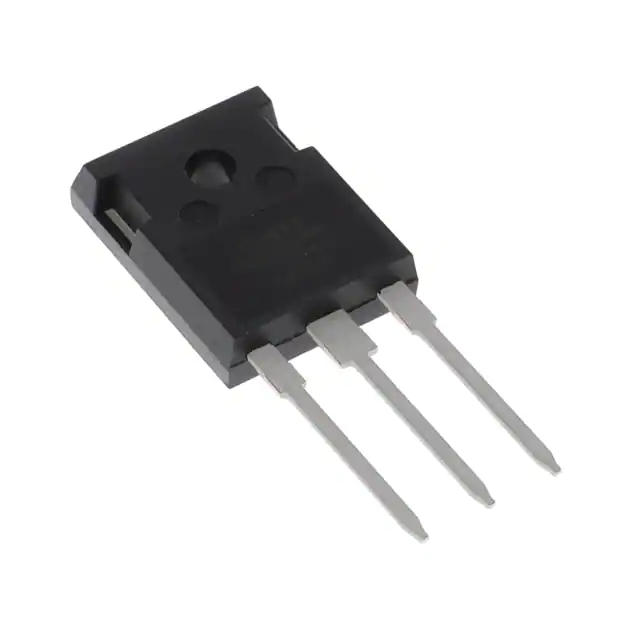

CMA50E1600HBSCR 1.6KV 79A TO247 |
2,564 | 6.90 |
RFQ |
Datasheet |
Tube | CMA50E1600HB | Active | 1.6 kV | 1.5 V | 50 mA | 1.3 V | 50 A | 79 A | 100 mA | - | 550A, 595A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|
CMA80E1600HBSCR 1.6KV 126A TO247 |
2,595 | 7.05 |
RFQ |
Datasheet |
Tube | CMA80E1600HB | Active | 1.6 kV | 1.4 V | 80 mA | 1.47 V | 80 A | 126 A | 100 mA | - | 720A, 780A | Standard Recovery | -40°C ~ 150°C (TJ) | Through Hole |
|
|
CLA40E1200HRSCR 1.2KV 63A ISO247 |
3,282 | 7.62 |
RFQ |
Datasheet |
Tube | CLA40E1200HR | Active | 1.2 kV | 1.5 V | 50 mA | 1.25 V | 40 A | 63 A | 100 mA | - | 650A, 700A | Standard Recovery | -55°C ~ 150°C (TJ) | Through Hole |
|
CS45-16IO1RSCR 1.6KV 75A ISOPLUS247 |
2,626 | 7.94 |
RFQ |
Datasheet |
Tube | - | Active | 1.6 kV | 1.5 V | 100 mA | 1.64 V | 48 A | 75 A | 100 mA | 5 mA | 520A, 560A | Standard Recovery | -40°C ~ 140°C | Through Hole |
|
|
CMA40E1600HRSCR 1.6KV 63A ISO247 |
3,286 | 7.94 |
RFQ |
Datasheet |
Tube | CMA40E1600HR | Active | 1.6 kV | 1.5 V | 50 mA | 1.23 V | 40 A | 63 A | 100 mA | - | 550A, 595A | Standard Recovery | -55°C ~ 150°C (TJ) | Through Hole |
|
CS20-25MOT1-TUBSCR 2.5KV TO268AA |
3,294 | 38.64 |
RFQ |
Datasheet |
Tube | - | Active | 2.5 kV | 2.5 V | 250 mA | 3 V | - | - | 300 mA | 50 µA | 200A @ 50Hz | Standard Recovery | -10°C ~ 70°C | Surface Mount |
|
CS19-12HO1S-TUBSCR 1200V 31A TO263 |
2,599 | 3.07 |
RFQ |
Datasheet |
Tube | - | Active | 1200 V | 1.5 V | 28 mA | 1.32 V | 20 A | 31 A | 50 mA | 50 µA | 180A, 195A | Standard Recovery | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
S6X8BBS3RP600V SENSITIVE SCR IN SOT89 PACK |
3,525 | 0.62 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SxX8BBS | Active | 600 V | 800 mV | 200 µA | 1.7 V | 510 mA | 800 mA | 10 mA | 5 µA | 10A, 12A | Sensitive Gate | -40°C ~ 125°C (TJ) | Surface Mount |
|
|
S6X8TS3RP600V SENSITIVE SCR IN SOT223 PAC |
2,172 | 0.69 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | SxX8xSx | Active | 800 V | 800 mV | 200 µA | 1.7 V | 510 mA | 800 mA | 5 mA | 3 µA | 8A, 10A | Sensitive Gate | -40°C ~ 125°C (TJ) | Surface Mount |
|
CLA5E1200UC-TRLSCR 1.2KV 7.8A TO252AA |
3,932 | 1.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1.2 kV | 1.8 V | 20 mA | 1.6 V | 5 A | 7.8 A | 30 mA | 10 µA | 50A, 54A | Standard Recovery | -40°C ~ 150°C | Surface Mount |
|
|
CS19-08HO1S-TRLSCR 800V 29A TO263 |
3,218 | 2.64 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 800 V | 1.5 V | 28 mA | 1.6 V | 13 A | 29 A | 50 mA | 5 mA | 160A, 180A | Standard Recovery | -40°C ~ 125°C | Surface Mount |
